22 Inch Stretched Bar Display Overview

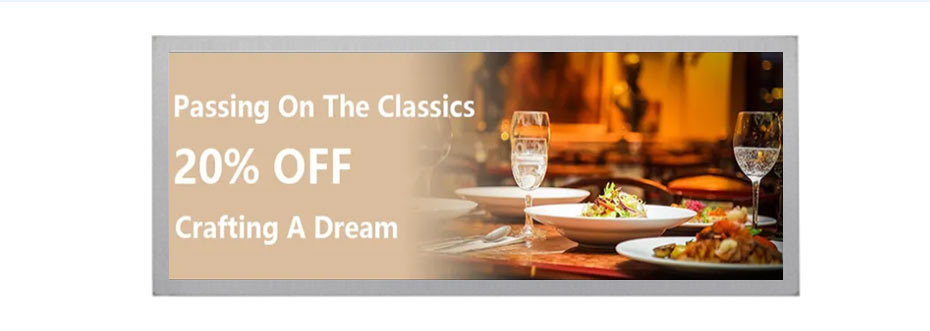

ET220BA01-RX is a 22-inch diagonal stretched bar TFT-LCD display featuring a transmissive IPS panel. It supports a resolution of 1920 × 710, providing clear and wide-format visuals with pixels arranged in a standard RGB sub-pixel structure. The display has an active area of 527.04 (W) × 195.5 (H) mm and an outline dimension of 548.4 (W) × 222.2 (H) mm, making it ideal for panoramic and elongated display applications. ET220BA01-RX uses an LVDS interface and delivers a typical high brightness of 1000 cd/m², ensuring excellent visibility even in well-lit environments. With wide viewing angles of 89° in all directions (L/R/U/D), the display maintains consistent color and contrast from virtually any viewing position. The module operates reliably within a 0 to 50°C temperature range and can be stored between –20 to 60°C. Additionally, this model supports touch functionality, making it suitable for interactive industrial panels, control systems, and high-brightness wide-format display applications.

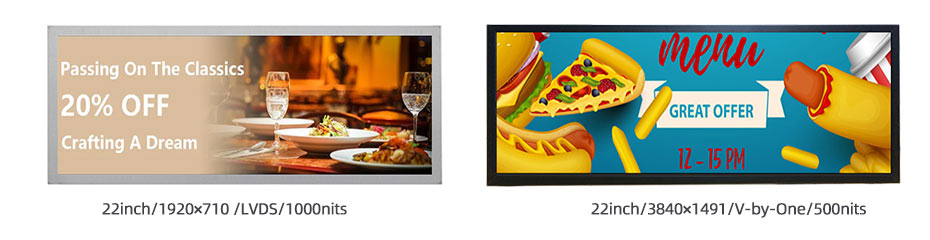

More 22 Inch Bar Displays For Reference
ET220BA01-RX (1920x710, LVDS, IPS, 1000nits, 0~50°C, 548.4x222.2mm)
ET220BA01-YU (3840x×1491, V-by-One, IPS, 500nits, 0~50°C, 547x217.6mm)
