7.1"-10.1" LCD Display (7.8")

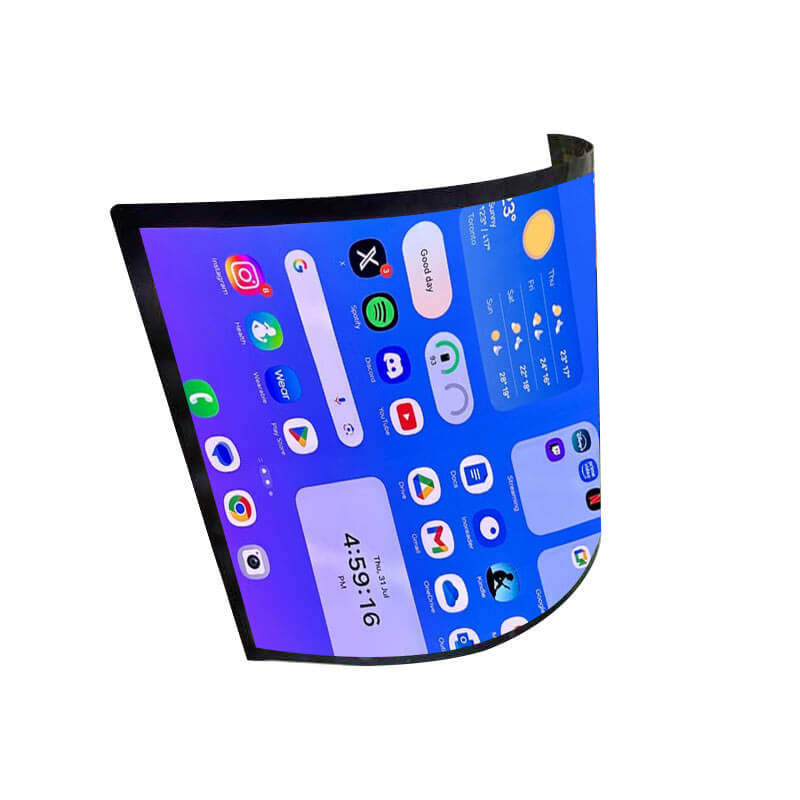

7.8 Inch AMOLED Display 1440x1920 IPS Flexible Touchscreen OLED Display With Driver Board

Part No.:ET078SQ01-W-HDMI
Size:7.8″ inch
Resolution:1440x1920
Panel Interface:/
Display mode:AMOLED

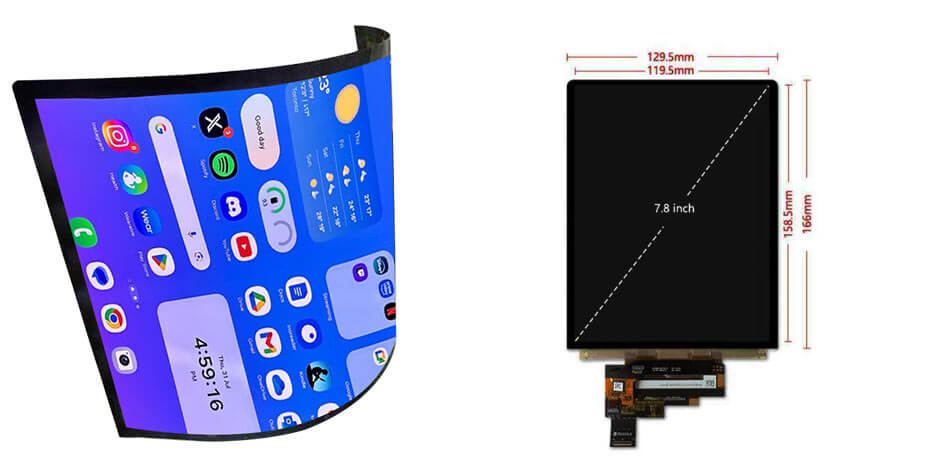

Outline Dimension:129.5x166mm
Active Area:119.5x158.5mm
Viewing Angle L/R/U/D:85/85/85/85 (Typ.)
Brightness（cd/m2）:300Cd/m^2
Operation / Storage Temp:/ / /
Touch:yes

7.8 Inch AMOLED Display Overview

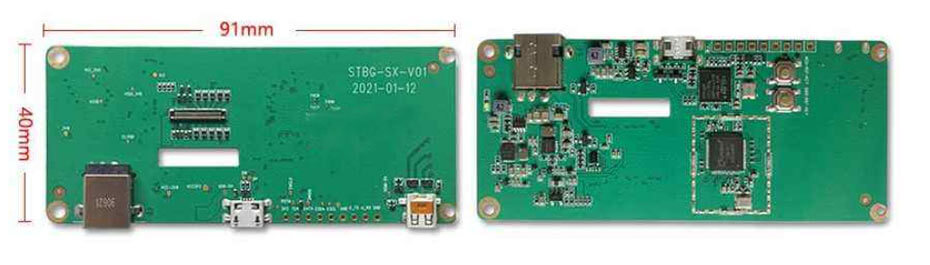

ET078SQ01-W-HDMI is a 7.8-inch AMOLED display with a resolution of 1440×1920, featuring a self-emissive OLED panel and integrated touchscreen. It provides an active area of 119.5 × 158.5 mm within an outline dimension of 129.5 × 166 mm, delivers typical brightness of 300 cd/m², and offers wide 85° viewing angles in all directions. The module is supplied with a driver board and supports touch functionality.
Resolution: 1440x1920
Interface: FPC
Size: 7.8 inch
Application: Smart Products
Viewing Angle: 85/85/85/85 (Typ.)
Contrast Ratio: 100000:1
Display mode: Positive
Brightness: 300 Cd/m^2
