7 Inch LCD Display Overview

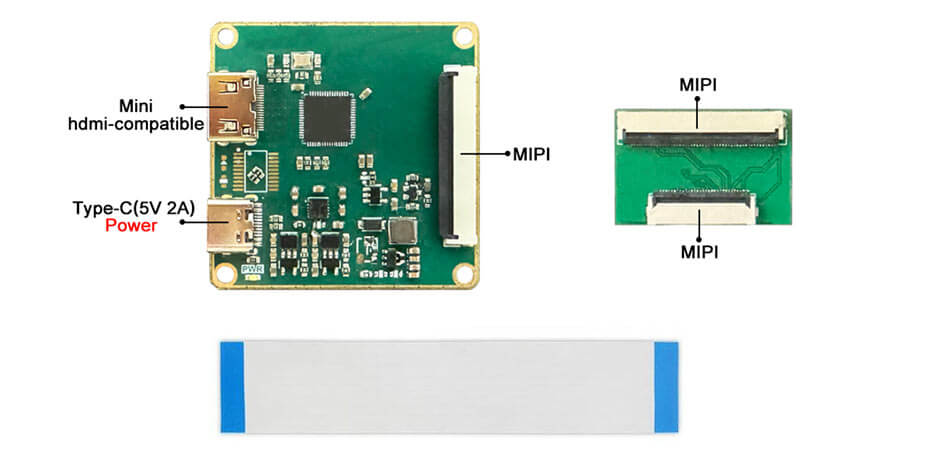

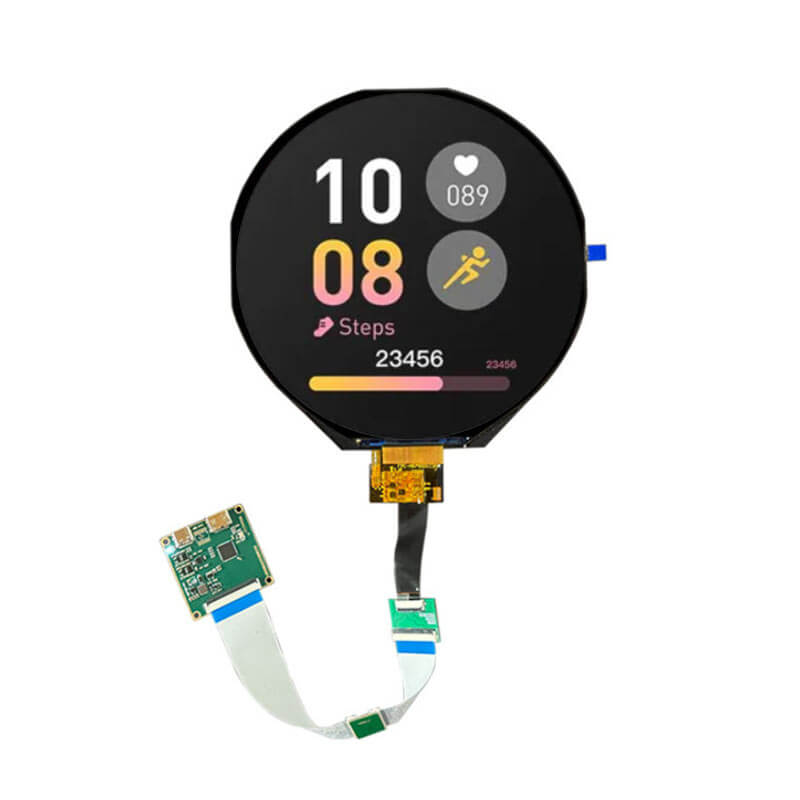

ET070XRS-01 is a 7-inch IPS TFT LCD display featuring a 1080 × 1080 square resolution with LED backlight, designed for sunlight-readable applications. It delivers high brightness up to 800 nits and wide viewing angles of 85° in all directions, ensuring clear visibility and consistent image quality. The display has an active area of 177.47 × 177.47 mm and an outline dimension of 191.58 × 192.75 × 5.27 mm. With an LVDS interface and IPS display mode, ET070XRS-01 is suitable for stable and reliable operation in industrial and outdoor environments, supporting operating temperatures from 20 to 70 °C (storage −30 to 80 °C), and is supplied without touch functionality, integrated with a driver board.
LCD Size: 7 inch
Resolution: 1080x1080 full hd
NTSC: 70% Typ.
Contrast Ratio: 1200 Typ.
Luminance: 800 nits

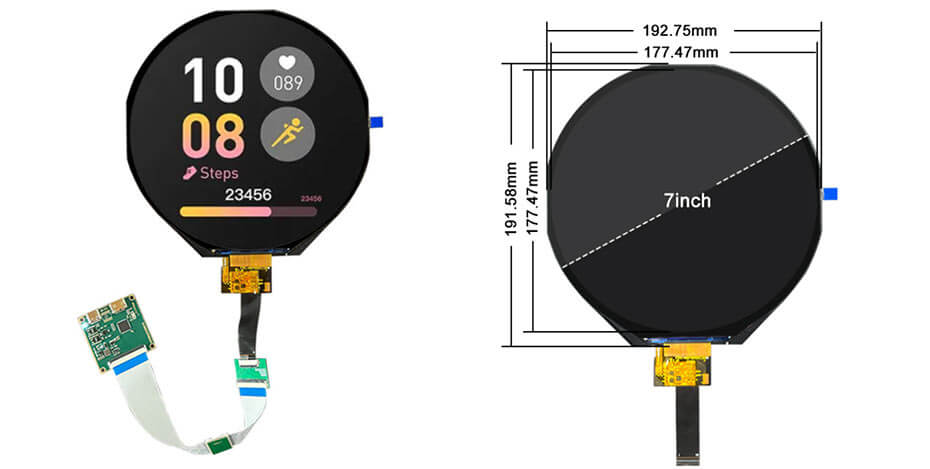

Module Size: 191.58x192.75x5.27mm
Viewing Angle: 85/85/85/85
Active Area: 177.47x177.47mm
Interface: LVDS
Operating Temperature: -20~+70 ℃
Storage Temperature: -30~+80 ℃
PRODUCTION AND MANUFACTURING
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
