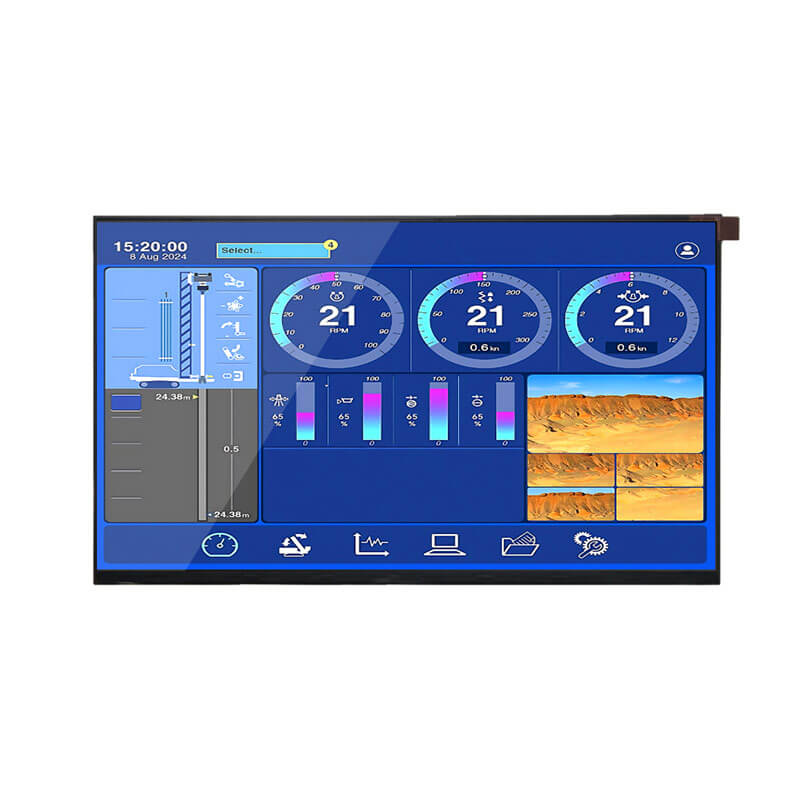

14 Inch 4K 3840x2160 LCD Display 500nits High Brightness eDP IPS LCD Module For 3D Printer

14 Inch 4k Display Overview
NV140QUM-N54 supports display 3840(RGB)×2160 (UHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe, it's pixel density is 315 PPI. As for mechanical detail, it features active area of 309.312(W)×173.988(H) mm, outline size of 315.01(W)×186.14(H)×4.3(D) mm, with surface treament of Hard coating (3H), net weight of 215g (Max.), shape stype of Slim (PCBA Bent, T≤3.0mm). As a ADS, Normally Black, Transmissive LCM product, NV140QUM-N54 can provides 500 cd/m² display brightness 1400:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 99% (sRGB). This product adopted 10S8P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. NV140QUM-N54 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

More 14 Inch 4k Display For Reference
NV140QUM-N61 (LCM, 3840x2160, eDP, 400nits, -20~60°C, 315.01x199.04mm)
NV140QUM-N53 (LCM, 3840x2160, eDP, 500nits, 0~50°C, 315.01x196.14mm)
NV140QUM-N54 (LCM, 3840x2160, eDP, 500nits, 0~50°C, 315.01x186.14mm)
NE140QUM-N61 (LCM, 3840x2160, eDP, 500nits, 0~50°C, 315.01x195.67mm)
B140ZAN02.1 (LCM, 3840x2160, eDP, 500nits, 0~50°C, 305.894x197.746mm)
ATNA40YN04-0 (OLED, 3840x2400, eDP, 400nits, -20~70°C, 305.02x196.24mm)
