6"-15.6" Touch Screen (9.7")

9.7 Inch Capacitive Touch Screen P+G Structure GT911 IIC+USB Touch Display For Win7 8 10 linux

Part No.:ET097CTP01
Size:9.7″ inch
Resolution:Optional
Panel Interface:I2C,USB
Display mode:PCAP
Outline Dimension:209.8x163.85mm
Active Area:196.61x147.46mm
Viewing Angle L/R/U/D:Full view
Brightness（cd/m2）:Optional
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:yes

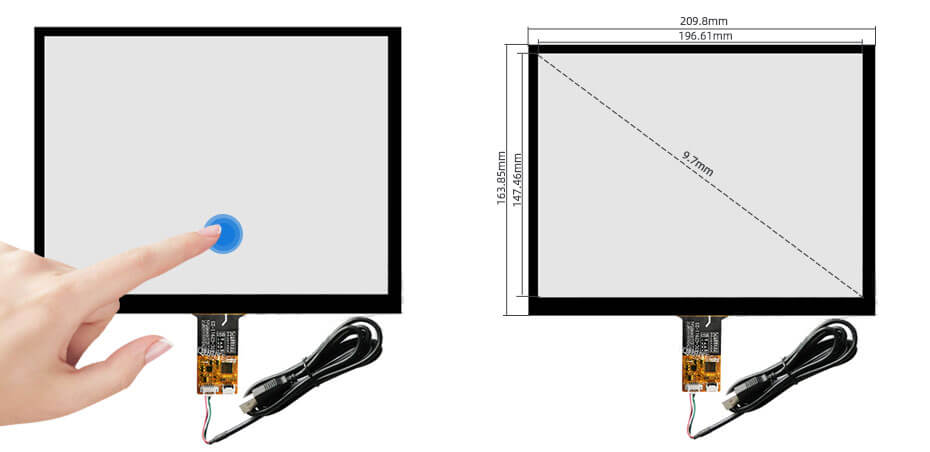

9.7 Inch Capacitive Touch Screen
Product structure: PET/Glass
Surface hardness: Hard coating (6H)
Touch Points: Multi-touch
Interface Type: I2C,USB
Display Area: 196.61x147.46 mm
Outline Dim.: 209.8x163.85 mm
Operation Temperature: -20 ~ 70°C
Storage Temperature: -30 ~ 80°C

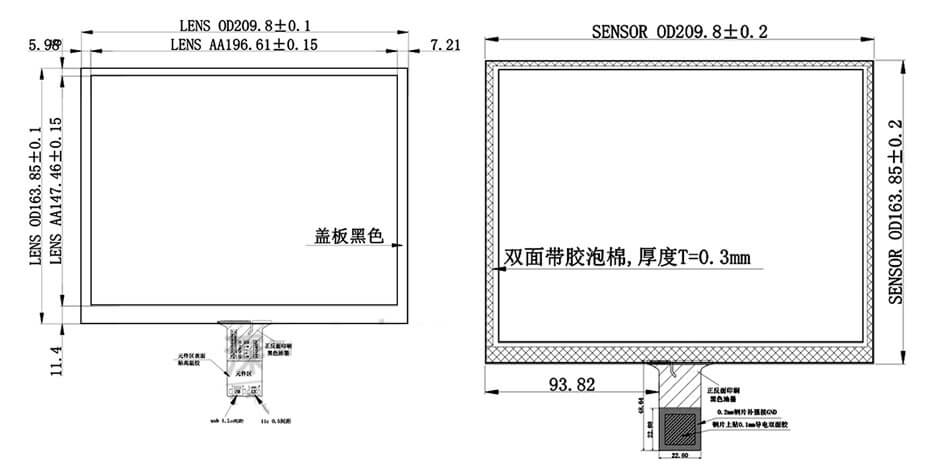

9.7 Inch Capacitive Touch Screen Drawing

The touch screens can be matched and integrated by all kinds of display panels

SPECIALTREATMENT
SUPPORT AG / AR / AF GLASS(ANTI-GLARE, ANT-REFLECTIVE, ANT-FINGERPRINT)

PRODUCTION AND MANUFACTURING
