G156HAN02.3 AUO 15.6 Inch 1920x1080 LCD Panel Industrial Panel LVDS Interface LCD Display

Part No.:G156HAN02.3
Size:15.6″ inch
Resolution:1920x1080
Panel Interface:LVDS (2 ch,8-bit)
Display mode:Transmissive
Outline Dimension:363.8x215.9x9.3mm
Active Area:344.16x193.59mm
Viewing Angle L/R/U/D:89/89/89/89 (Typ.)
Brightness（cd/m2）:500(Typ.)(cd/m²)
Operation / Storage Temp:-10~65°C / -10~65°C
Touch:no

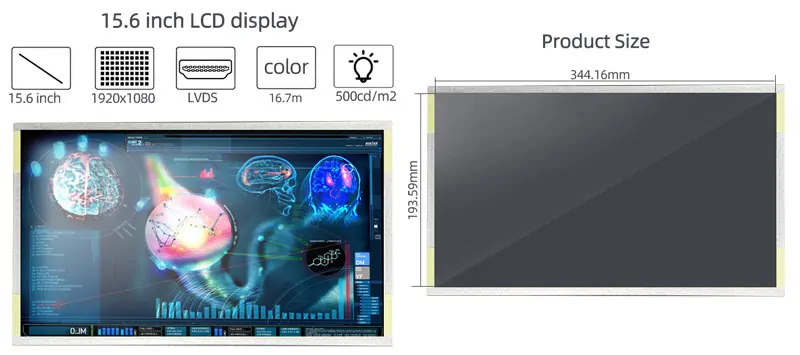

15.6 Inch 1920x1080 LVDS Interface LCD Panel

G156HAN02.3 AUO15.6 Inch 1920x1080 LCD Panel Industrial Panel LVDS Interface LCD Display

Panel Brand	AUO	Panel Model	G156HAN02.3
Panel Size	15.6 inch	Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1080 [FHD] 141PPI	Pixel Format	RGB Vertical Stripe
Display Area	344.16(H)×193.59(V) mm	Luminance	800 cd/m² (Typ.)

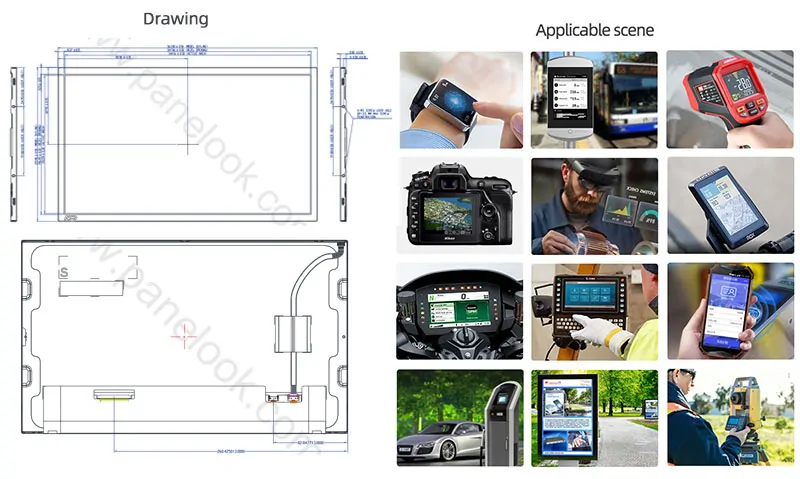

Bezel Area	347.06(H)×196.49(V) mm	Outline	363.8(H)×215.9(V) ×9.3(D) mm
Treatment	Antiglare, Hard coating (3H)	Operating Mode	AHVA, Normally Black, Transmissive
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)	Contrast Ratio	1000:1 (Typ.) (TM)
Good View at	Symmetry	Response	25 (Typ.)(Tr+Td)
Interface Type	LVDS (2 ch, 8-bit) , 30 pins Connector	Light Source	WLED , 50K hours , With LED Driver
Support Color	16.7M 99% sRGB	Touchscreen	Without
Weight	600/660g (Typ./Max.)
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: -10 ~ 65 °C ; Storage Temperature: -10 ~ 65 °C

G156HAN02.3 AUO15.6 Inch 1920x1080 LCD Panel Industrial Panel LVDS Interface LCD Display
