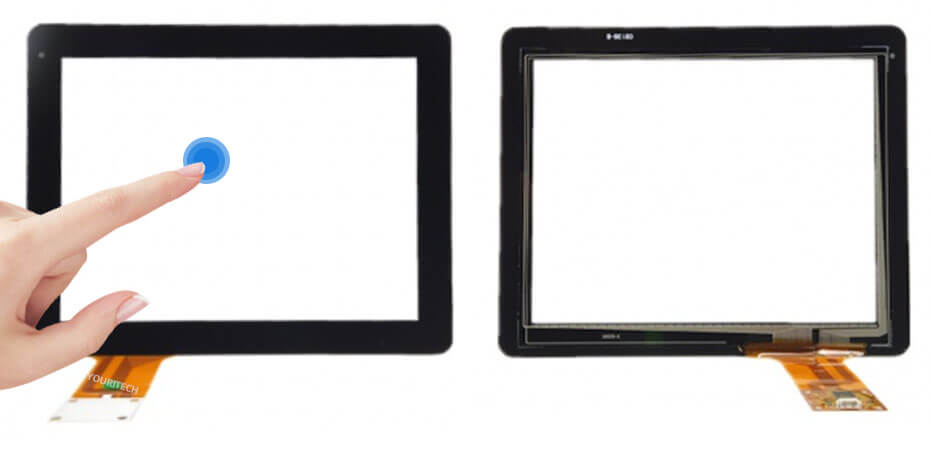

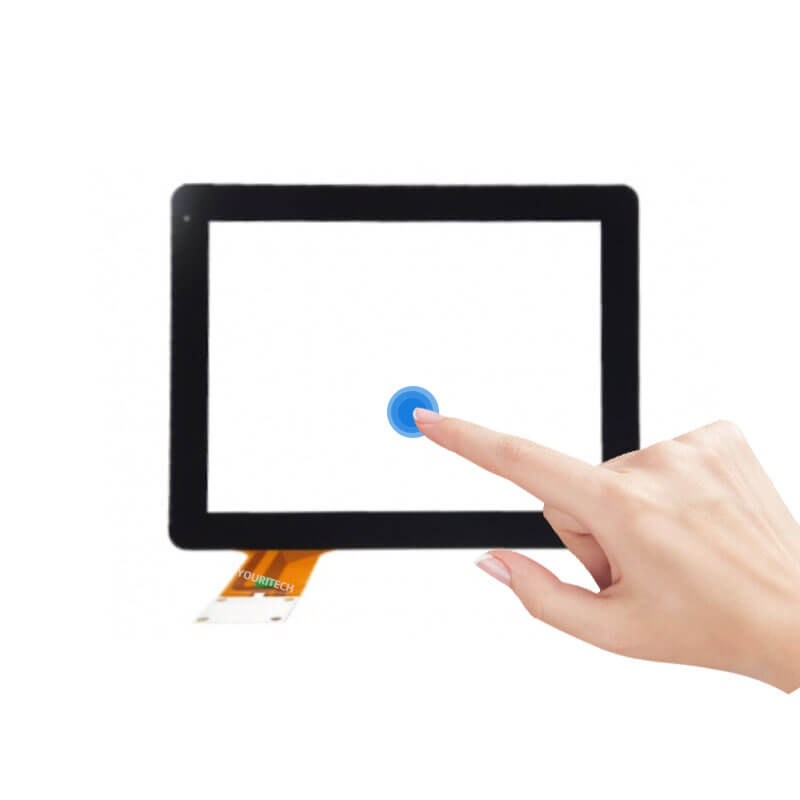

9.7 Inch Capacitive Touch Screen
Product structure: Glass/Glass
Surface hardness: Hard coating (7H)
Touch Points: Multi-touch
Interface Type: USB
Display Area: 213.6x168.3 mm
Outline Dim.: 236.7x187.6 mm
Operation Temperature: -40 ~ 85 °C
Storage Temperature: -40 ~ 85 °C

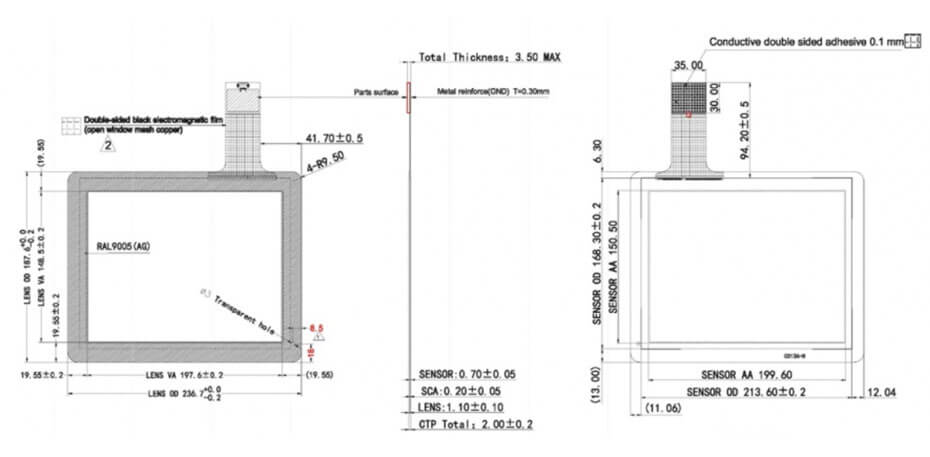

9.7 Inch Capacitive Touch Screen Drawing
The touch screens can be matched and integrated by all kinds of display panels
SPECIALTREATMENT
SUPPORT AG / AR / AF GLASS(ANTI-GLARE, ANT-REFLECTIVE, ANT-FINGERPRINT)
PRODUCTION AND MANUFACTURING
APPLICATIONS
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
