6"-15.6" Touch Screen (9.6")

9.6 Inch Capacitive Touch Screen G+G Multi-touch USB Touch Screen For TV096WXM-NS0

Part No.:ET096CTP01
Size:9.6″ inch
Resolution:Optional
Panel Interface:USB
Display mode:PCAP

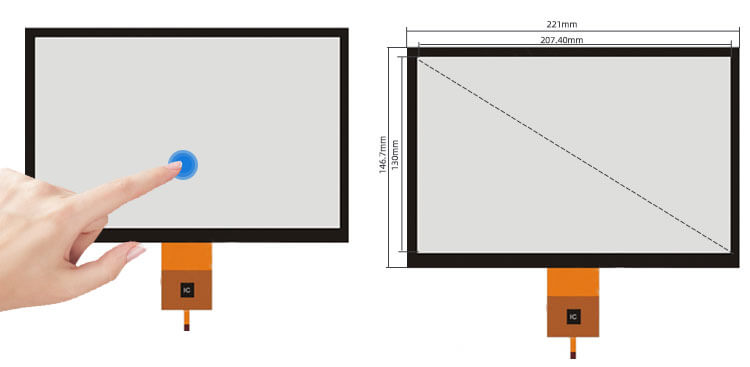

Outline Dimension:221x146.7mm
Active Area:208.4x131mm
Viewing Angle L/R/U/D:Full view
Brightness（cd/m2）:Optional
Operation / Storage Temp:-30~70°C / -40~80°C
Touch:yes

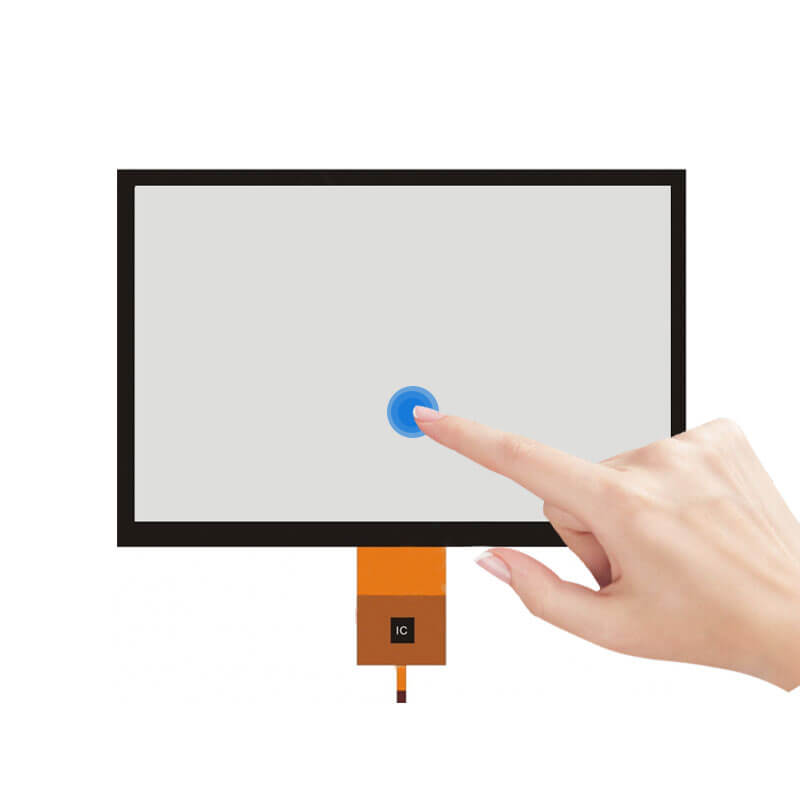

9.6 Inch Capacitive Touch Screen
Product structure:Glass/Glass
Surface hardness: Hard coating (6H)
Touch Points: Multi-touch
Interface Type: USB
Display Area: 208.4 x131 mm
Outline Dim.: 221x146.7 mm
Operation Temperature: -30 ~ 70°C
Storage Temperature: -40 ~ 80°C

The touch screens can be matched and integrated by all kinds of display panels

SPECIALTREATMENT
SUPPORT AG / AR / AF GLASS(ANTI-GLARE, ANT-REFLECTIVE, ANT-FINGERPRINT)

PRODUCTION AND MANUFACTURING
