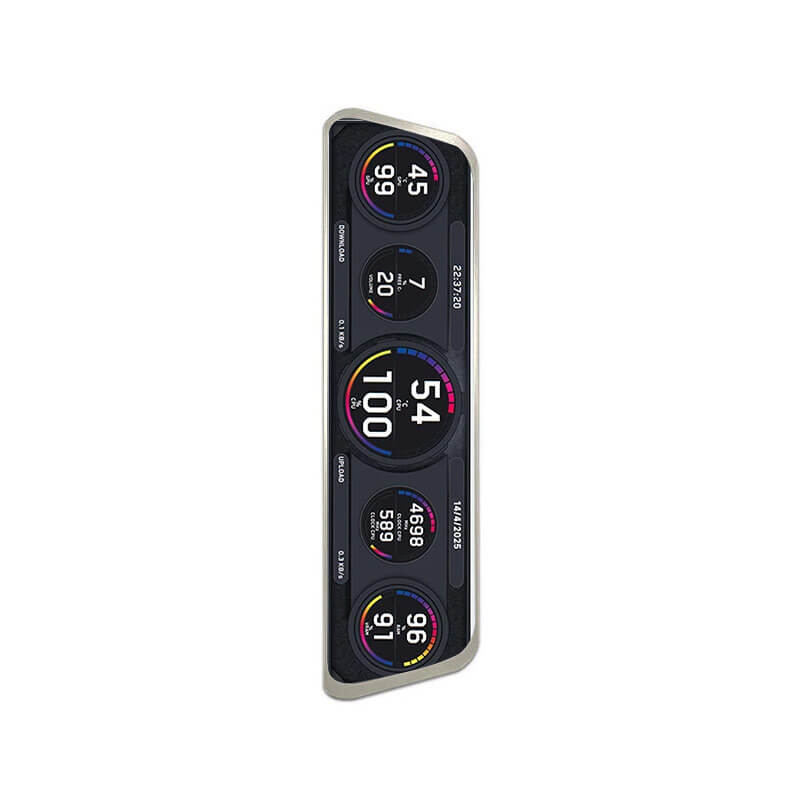

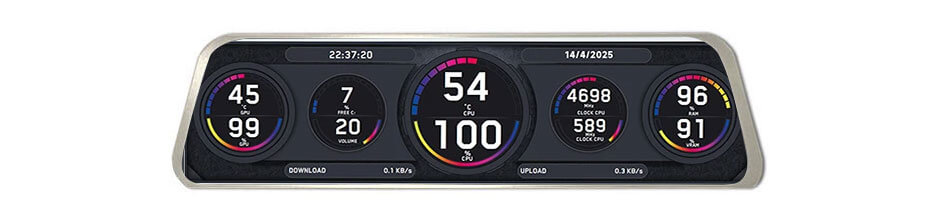

9.66 Inch TFT LCD Display 480×1920 MIPI LCD Display For Automotive

Part No.:ET094BA02-R
Size:9.66″ inch
Resolution:480x1920
Panel Interface:MIPI
Display mode:Transmissive
Outline Dimension:64.48x246.15mm
Active Area:58.08x232.7mm
Viewing Angle L/R/U/D:85/85/85/85
Brightness（cd/m2）:450nits
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

9.66 Inch TFT LCD Display 480×1920 MIPI LCD Display For Automotive Video

9.66 Inch TFT LCD Display 480×1920 MIPI LCD Display For Automotive Overview

ET094BA02-R is a 9.66-inch diagonal TFT-LCD display product with a transmissive display mode. ET094BA02-R supports a resolution of 480×1920 with an aspect ratio of 1:4 (W:H), delivering a long vertical display format, and utilizes a MIPI interface for signal transmission. It features an active area of 58.08(W)×232.7(H) mm and an outline size of 64.48(W)×246.15(H) mm. The display provides a brightness of 450 cd/m², suitable for automotive applications, and offers wide viewing angles of 85/85/85/85 (L/R/U/D). ET094BA02-R operates within a temperature range of -20 to 70°C and can be stored at -30 to 80°C. This model does not include a touch function.
