7.1"-10.1" LCD Display (9.7")

9.7 Inch TFT LCD Display 1024×768 LVDS High Brightness 600nits LCD Display For Automotive

Part No.:ET094WX01-GA
Size:9.7″ inch
Resolution:1024x768
Panel Interface:LVDS
Display mode:Transmissive

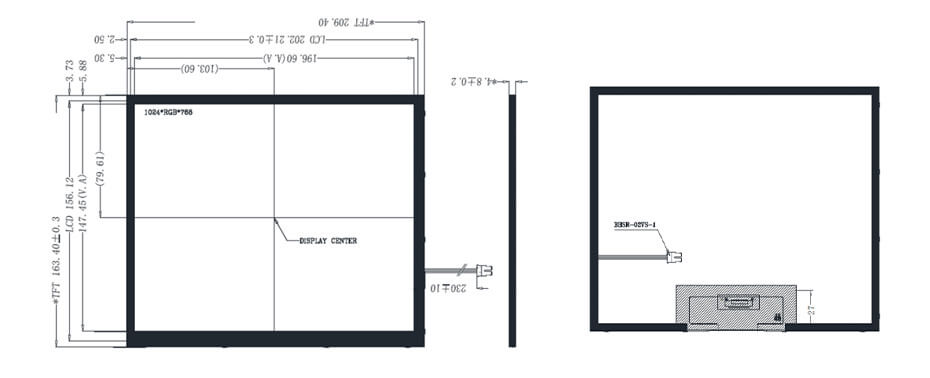

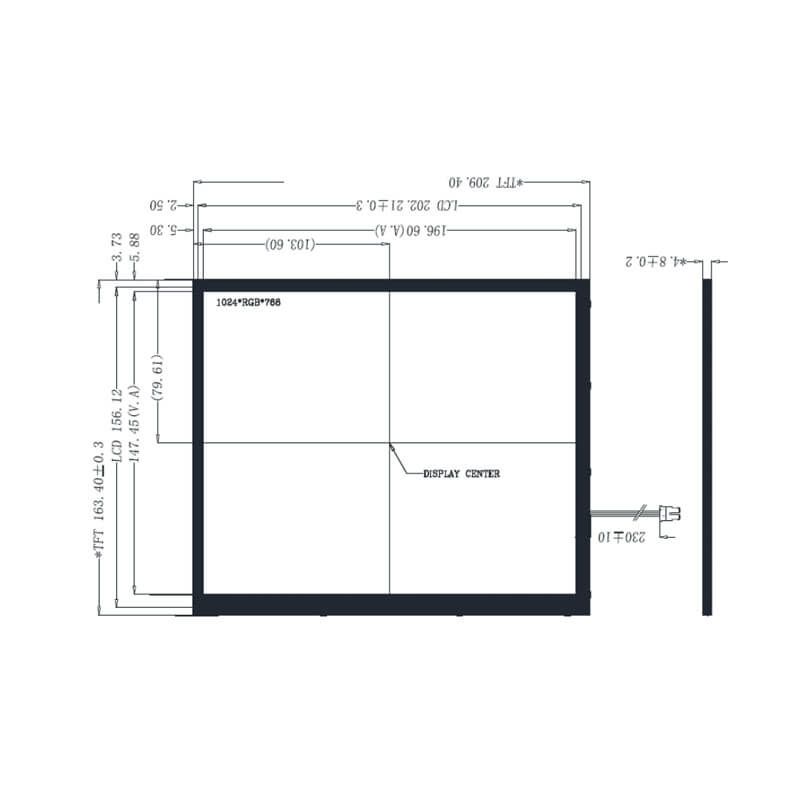

Outline Dimension:209.4x163.4mm
Active Area:196.60x147.45mm
Viewing Angle L/R/U/D:85/85/85/85
Brightness（cd/m2）:600nits
Operation / Storage Temp:-20~80°C / -30~80°C
Touch:no

9.7 Inch TFT LCD Display 1024×768 LVDS High Brightness 600nits LCD Display For Automotive Video

9.7 Inch TFT LCD Display 1024×768 LVDS High Brightness 600nits LCD Display For Automotive Overview

ET094WX01-GA is a 9.7-inch diagonal TFT-LCD display product with a transmissive display mode. ET094WX01-GA supports a resolution of 1024×768 with a standard aspect ratio, delivering clear and stable image performance, and utilizes an LVDS interface for signal transmission. It features an active area of 196.60(W)×147.45(H) mm and an outline size of 209.4(W)×163.4(H) mm. The display provides a brightness of 600 cd/m², suitable for automotive and general high ambient light environments, and offers wide viewing angles of 85/85/85/85 (L/R/U/D). ET094WX01-GA operates within a temperature range of -20 to 80°C and can be stored at -30 to 80°C. This model does not include a touch function.
