9.5 Inch Stretched Bar Display Overview

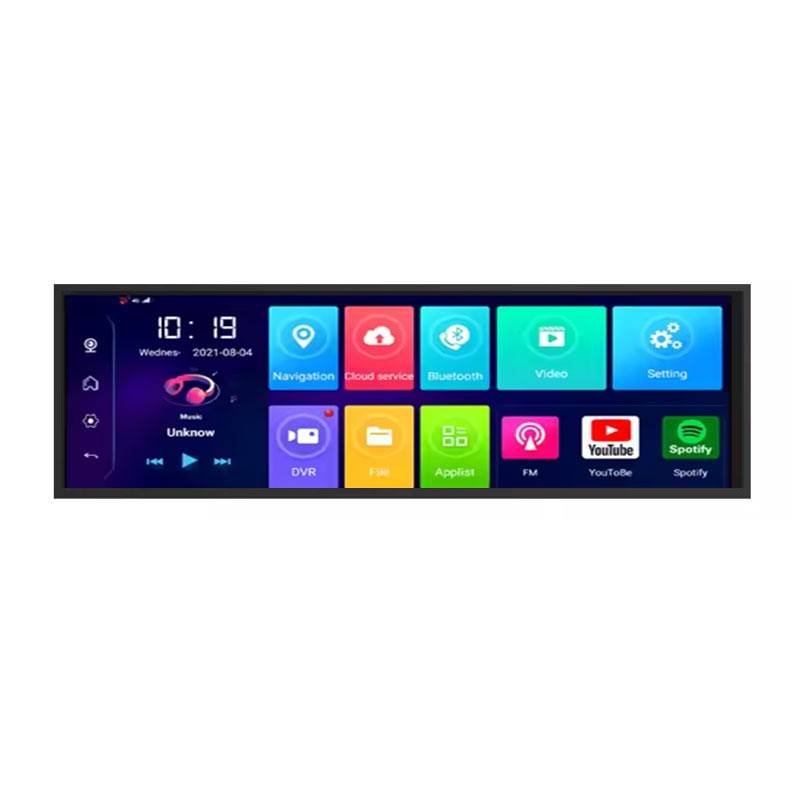

ET095BA01-YF is a 9.5-inch diagonal stretched bar TFT-LCD display product featuring a transmissive IPS panel. It supports a 1920 × 960 resolution, delivering a high-resolution wide-format display suitable for detailed graphical and information-rich applications, with pixels arranged in a standard RGB sub-pixel structure. The display features an active area of 216.806 (W) × 108.4 (H) mm and an outline dimension of 240 (W) × 130 (H) mm, enabling straightforward integration into compact system designs. ET095BA01-YF adopts an LVDS interface and provides a typical brightness of 400 cd/m², combined with wide viewing angles of 80° in all directions (L/R/U/D) to ensure consistent image quality. It is designed for reliable operation within an operating temperature range of –20 to 70°C and a storage temperature range of –30 to 80°C. This model does not support touch functionality and is well suited for industrial displays, embedded equipment, transportation systems, and information signage applications.
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
