9.9 Inch Stretched Bar Display Overview

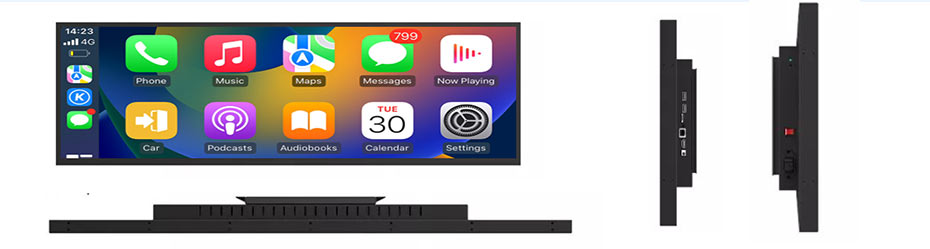

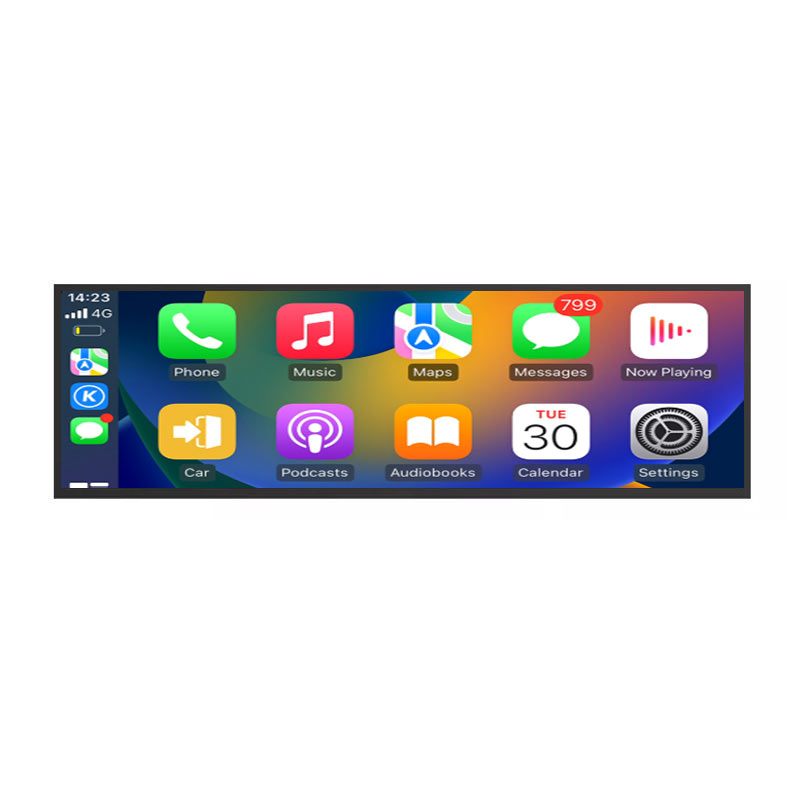

ET099BA01-YF is a 9.9-inch diagonal stretched bar TFT-LCD display product featuring a transmissive IPS panel. It supports a 1024 × 273 resolution, delivering an ultra-wide bar-type display format optimized for compact information presentation, with pixels arranged in a standard RGB sub-pixel structure. The display features an active area of 245.76 (W) × 55 (H) mm and an outline dimension of 270 (W) × 75 (H) mm, making it suitable for slim and elongated industrial designs. ET099BA01-YF adopts an LVDS interface and provides a typical brightness of 500 cd/m², ensuring good readability under high ambient lighting conditions. With extra-wide viewing angles of 89° in all directions (L/R/U/D), it offers consistent color and contrast from virtually any viewing position. The module is designed for stable operation within a –20 to 70°C operating temperature range and a –30 to 80°C storage temperature range. This model does not support touch functionality and is ideal for applications such as industrial equipment displays, transportation systems, smart appliances, and digital information panels.
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
