9.4 Inch Stretched Bar Display Overview

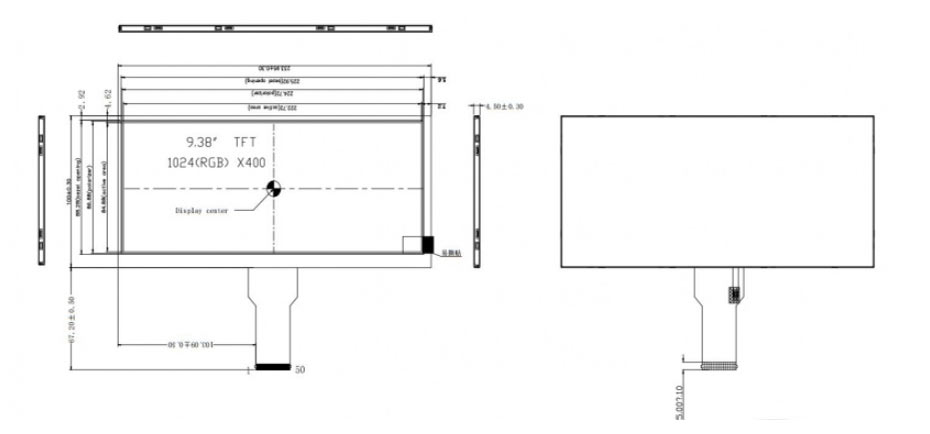

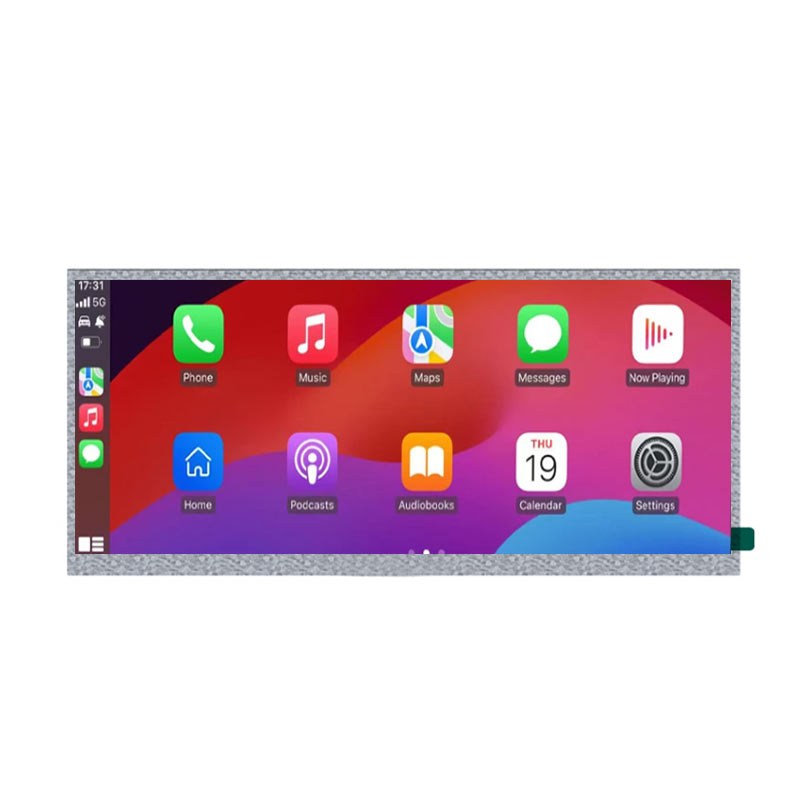

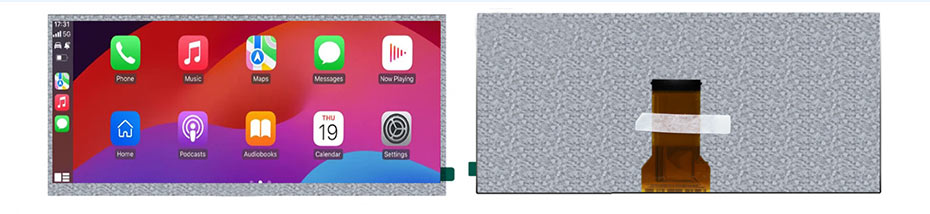

ET094BA01-KN is a 9.4-inch diagonal stretched bar TFT-LCD display product featuring a transmissive IPS panel. It supports a 1024 × 400 resolution, providing a wide-format display suitable for horizontal information presentation, with pixels arranged in a standard RGB sub-pixel structure. The display features an active area of 222.72 (W) × 88.48 (H) mm and an outline dimension of 233.95 (W) × 100 (H) mm, allowing for convenient integration into compact and elongated system designs. ET094BA01-KN adopts a TTL interface and delivers a typical brightness of 800 cd/m², ensuring good visibility in high-ambient-light environments. With wide viewing angles of 85° in all directions (L/R/U/D), it provides consistent image quality from multiple viewing positions. The module is designed for reliable operation within a –20 to 70°C operating temperature range and –30 to 80°C storage temperature range. This model does not support touch functionality and is suitable for applications such as industrial control panels, embedded systems, and transportation or information displays.
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
