7.1"-10.1" LCD Display (8")

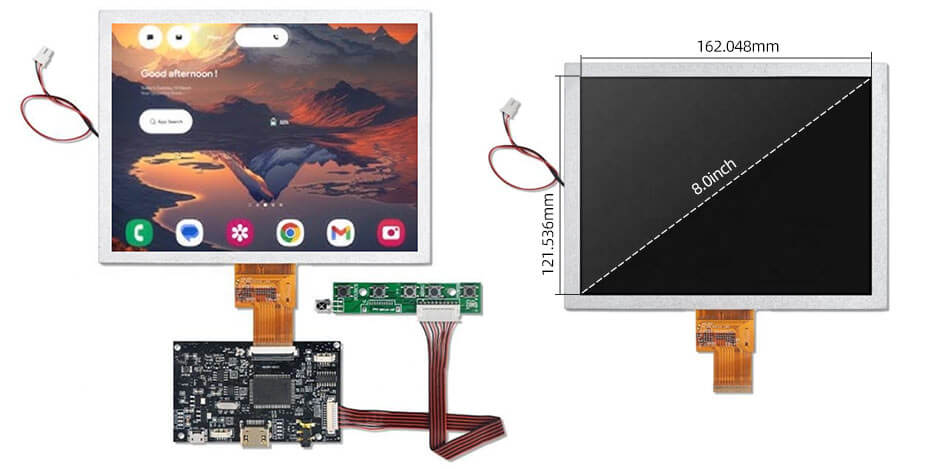

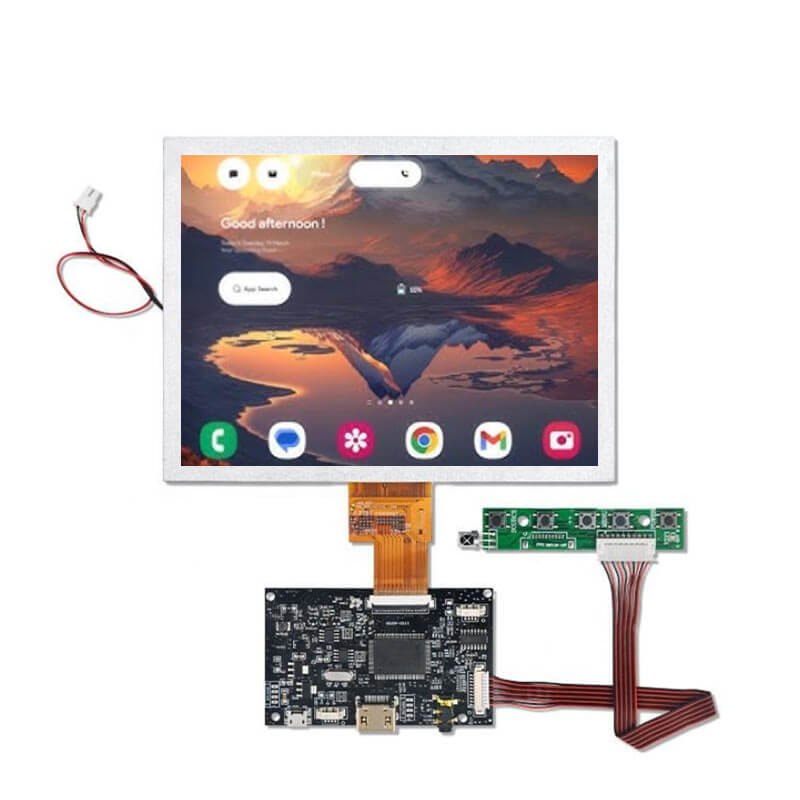

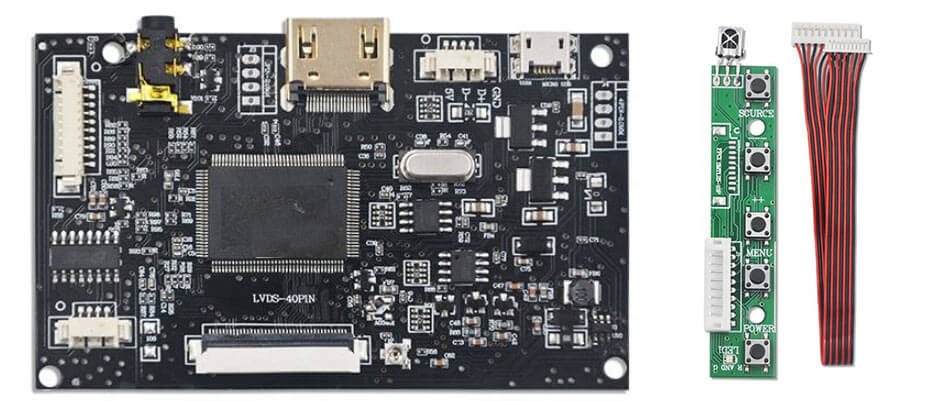

8 Inch LCD Display 1024x768 LVDS 40 Pin IPS Sunlight Readable 1000 Nits LCD Display With Driver Board For Outdoor Advertising Screen

Part No.:ET080WX01-W
Size:8″ inch
Resolution:1024x768
Panel Interface:LVDS
Display mode:IPS,Transmissive
Outline Dimension:178x139.8mm
Active Area:162.048x121.536mm
Viewing Angle L/R/U/D:85/85/85/85 (Typ.)
Brightness（cd/m2）:1000Cd/m²(Typ.)
Operation / Storage Temp:-10~60°C / -20~70°C
Touch:no

8 Inch LCD Display Overview
8 Inch LCD Display 1024x768 LVDS 40 Pin IPS Sunlight Readable 1000 Nits LCD Display With Driver Board For Outdoor Advertising Screen.
Pixel Format: 1024(RGB)x768,XGA
Configuration: RGB Vertical Stripe
Active Area: 162.048x121.536mm
Outline Dim.: 178x139.8m
Luminance: 1000 Cd/m² (Typ.)
Contrast Ratio: 800:1 (Typ.) (TM)
Viewing Angle: 85/85/85/85 (Typ.)(CR>10)
Operating Mode: IPS, Normally Black, Transmissive
Support Color: 262K/16.7M 50% (CIE1931)
Light Source: 3S11P WLED , 20K hours , Without Driver
Frame Rate: 60Hz
Interface Type: LVDS (1 ch, 6/8-bit) , FPC , 40 pins
Operating Temperature: -10 ~ 60 °C
Storage Temperature: -20 ~ 70 °C
