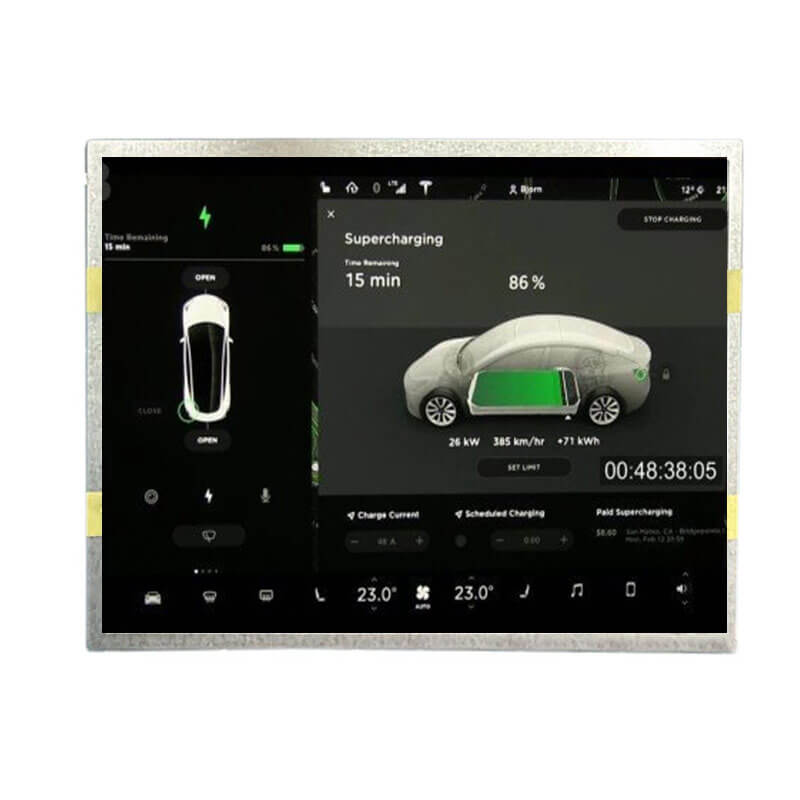

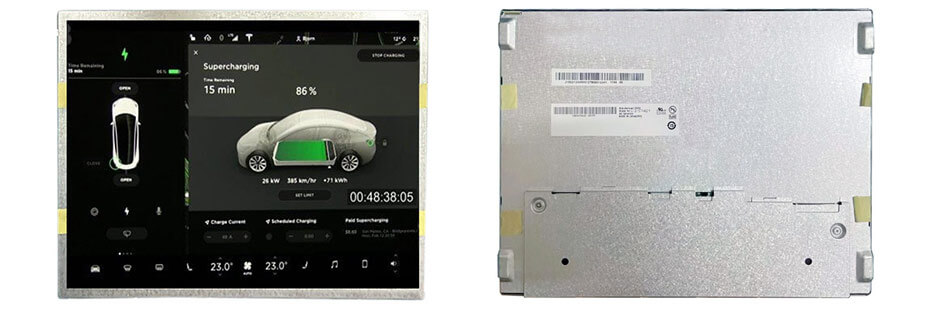

G121STN02.1 supports display 800(RGB)×600 (SVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 246(W)×184.5(H) mm, outline size of 261.65(W)×203(H)×9(D) mm, viewing area size of 249(W)×187.5(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 600g (Max.). As a TN, Normally White, Transmissive LCM product, G121STN02.1 can provides 1500 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/65/75 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 25/10 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 53% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 80K hours, With LED Driver. G121STN02.1 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
More 12.1 Inch EV Charger Display For Reference
G121EAN01.2 (1280×800, LVDS, 1000nits, -30~85°C, 278×184mm)
G121ICE-LH1 (1280×800, LVDS, 1000nits, -30~80°C, 278×184mm)
NL12880BC20-32F (1280×800, LVDS, 1100nits, -30~80°C, 277.7×180.6mm)
P1210WXF2MA01 (1280×800, LVDS, 1100nits, -30~80°C, 277.7×180.6mm)
P1210WXF2MA00 (1280×800, LVDS, 1500nits, -30~85°C, 281.78×183.17mm)
ET121WX02-TT (1280×800, LVDS, 750nits, -20~70°C, 293×198mm, Capacitive Touch)
G121STN02.1 (800×600, LVDS, 1500nits, -30~85°C, 261.65×203mm)
LQ121S1LG86 (800×600, LVDS, 1500nits, -30~70°C, 276×209mm)
G121XCE-LM1 (1024×768, LVDS, 1000nits, -30~75°C, 260.5×204mm)
P1210XGF1MA00 (1024×768, LVDS, 1300nits, -30~80°C, 260.5×203mm)
TX31D207VM0BAA (1024×768, LVDS, 1000nits, -40~80°C, 260.5×203mm)
COM121H9M21SSS (1024×768, LVDS, 900nits, -30~70°C, 260.5×203mm)
-Custom PCAP touch solutions (glove/wet touch, AG/AR/AF glass, optical bonding)
-Embedded mainboards (Android / Linux, ARM platforms, multi-interface support)
-Display + touch + board system integration
-Industrial design for EV chargers (IP65, wide temperature, high reliability)
-Communication & HMI support
High-Brightness LCD Displays
Sunlight-readable screens for outdoor charging stations.
PCAP Touchscreen Integration
Responsive multi-touch operation with glove and wet-touch support.
Rugged Cover Glass
Anti-glare, anti-scratch and impact-resistant protective glass.
Embedded Mainboards
Android, Linux and custom controller board solutions.
Industrial Connectivity
HDMI, USB, CAN Bus, RS232/RS485 and Ethernet interfaces.
Outdoor Protection
IP65 waterproof design, UV resistance and wide-temperature operation.
Optical Bonding Technology
Enhanced visibility, durability and reduced reflection.
Custom HMI Development
Complete display, touch and embedded system integration for EV chargers.
-AC Charging Stations
-DC Fast Charging Stations
-Ultra-Fast Charging Networks
-Smart Charging Kiosks
-Fleet Charging Infrastructure
-Renewable Energy Charging Systems
-Battery Swapping Stations
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
