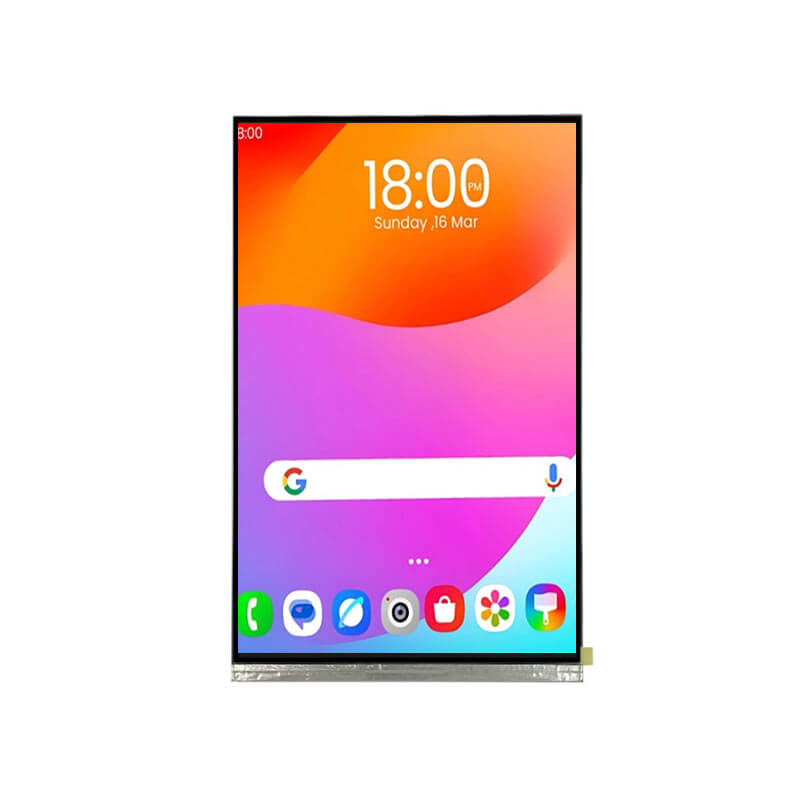

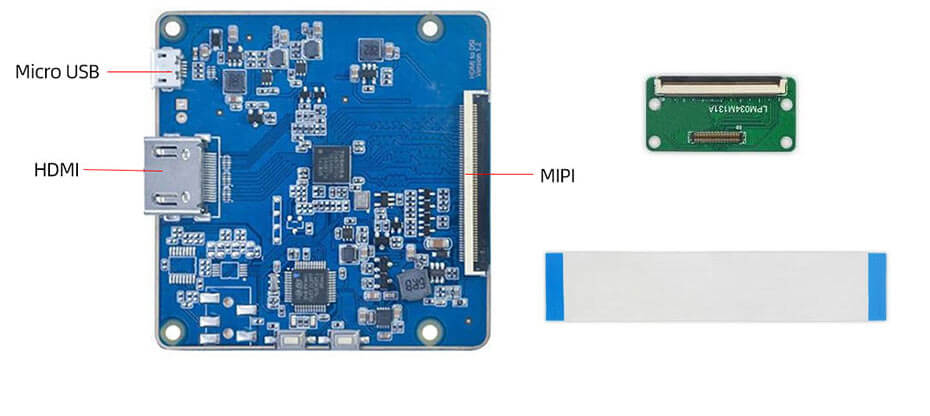

LQ084R1SX01 Sharp 8.4 Inch TFT LCD Display 1600x2560 MIPI LCD Display With Driver Board

8.4 Inch LCD Display Overview

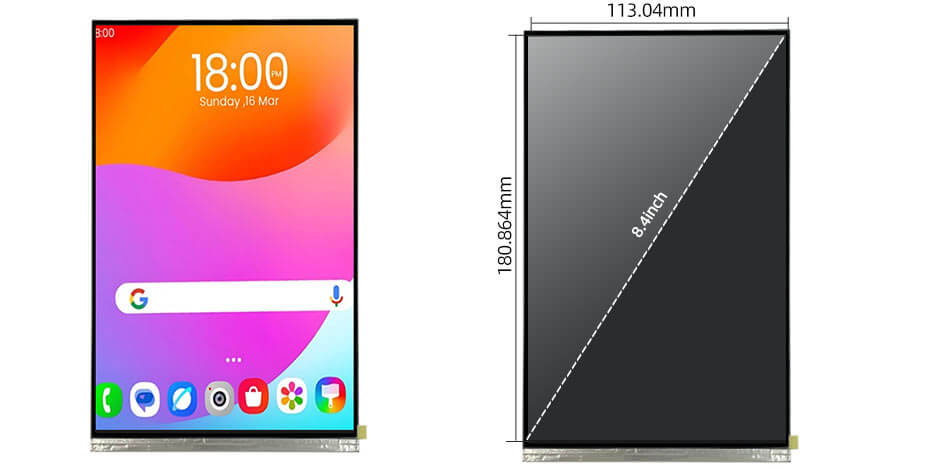

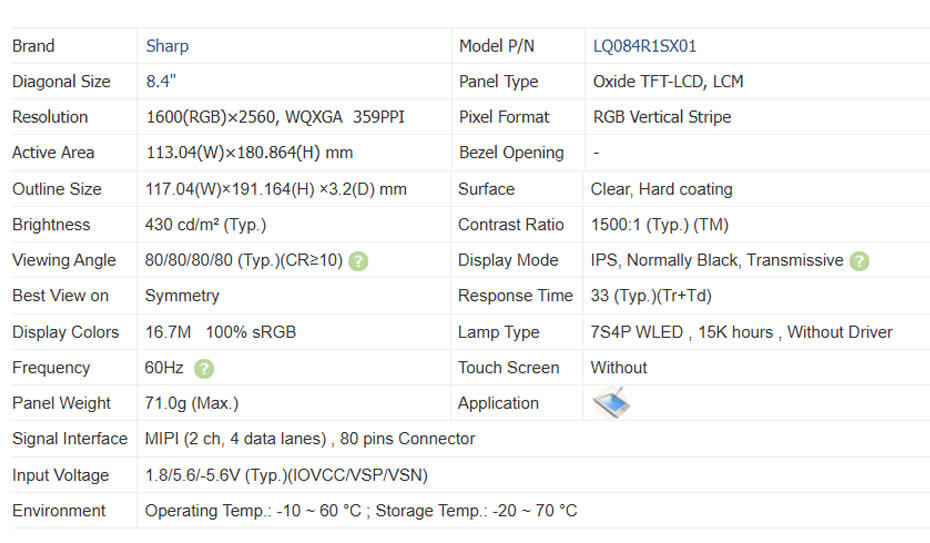

LQ084R1SX01 is a 8.4 inch diagonal Oxide TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. LQ084R1SX01 supports display 1600(RGB)×2560 (WQXGA) with aspect ratio of 10:16 (W:H), whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 359 PPI. As for mechanical detail, it features active area of 113.04(W)×180.864(H) mm, outline size of 117.04(W)×191.164(H)×3.2(D) mm, with surface treament of Clear, Hard coating, net weight of 71.0g (Max.). As a IPS, Normally Black, Transmissive LCM product, LQ084R1SX01 can provides 430 cd/m² display brightness 1500:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 33 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (sRGB). This product adopted 7S4P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, external backlight driver is additionally needed. LQ084R1SX01 utilizes MIPI (2 ch, 4 data lanes) as it's signal inputting systerm, which connected by 80 pins Connector with power supply voltage of 1.8/5.6/-5.6V (Typ.)(IOVCC/VSP/VSN). It's typical vertical frame rate (Fv) is 60Hz.

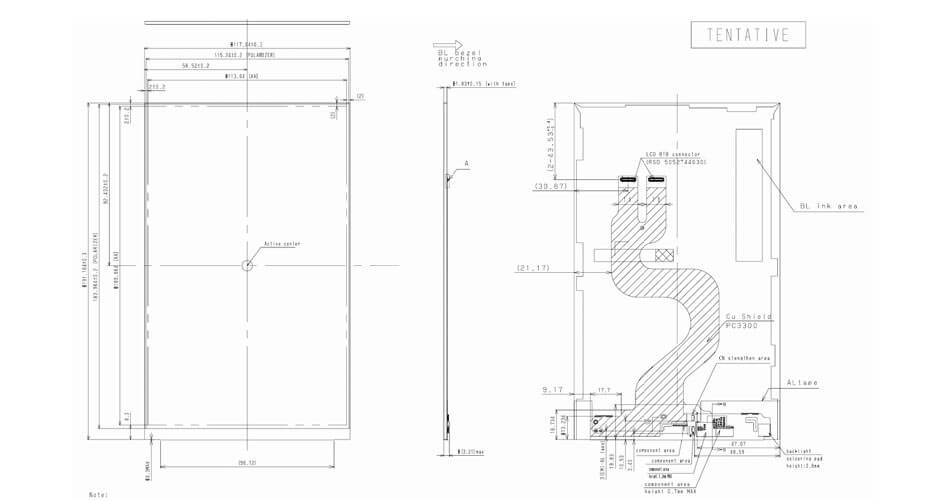

8.4 Inch LCD Display Drawing
