3.2 Inch OLED Display 262×928 MIPI High Brightness OLED Display With On-Cell Touch for Measuring Rangefinder Display Solution

3.2 Inch OLED Display 262×928 MIPI High Brightness OLED Display With On-Cell Touch for Measuring Rangefinder Display Solution Overview

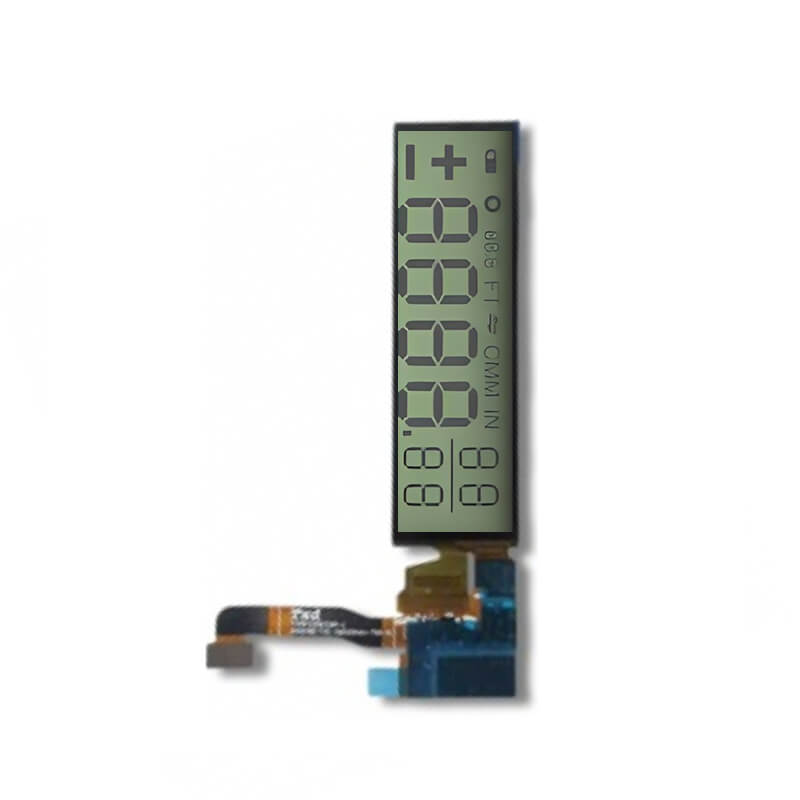

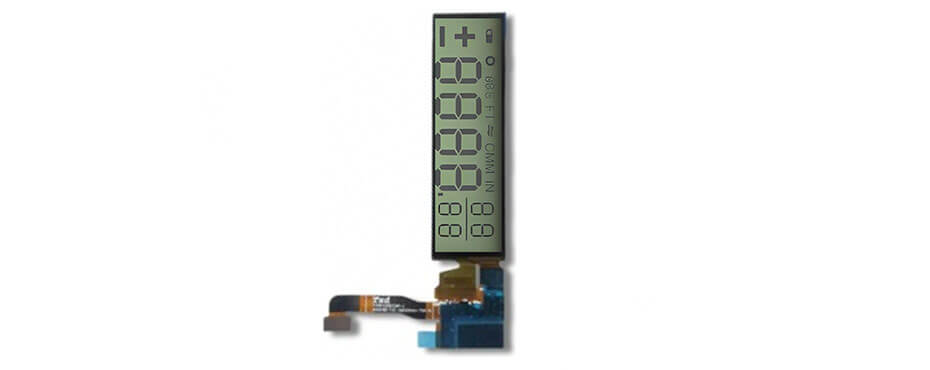

ET032AM01-TO is a 3.2-inch diagonal Si-OLED display module featuring a resolution of 262×928 pixels and a MIPI interface. With a typical brightness of 700 cd/m² and a wide viewing angle of 85° in all directions (L/R/U/D), ET032AM01-TO delivers clear, high-quality images for a variety of embedded applications. It features an active area of 22.008(W)×77.952(H) mm and an outline dimension of 23.8(W)×81.05(H) mm. The module integrates on-cell touch functionality for responsive user interaction and supports an operating temperature range of -20°C to 70°C and a storage temperature range of -30°C to 80°C. ET032AM01-TO is suitable for measuring instruments, laser rangefinders, and other compact devices requiring a high-brightness OLED display with integrated touch functionality.

More 3.2 Inch Healthcare & Medical Display Solution For Reference

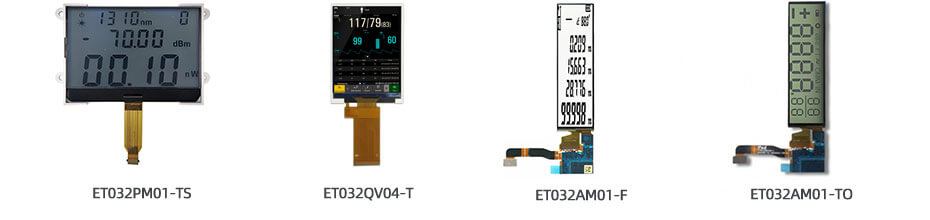

ET032PM01-TS (LCM, 240×160, SPI, Monochrome, 82×60mm, -20~70°C)
ET032QV04-T (LCM, 240×320, CPU, 500nits, 55.04×77.7mm, -20~70°C)
ET032AM01-F (OLED, 260×960, MIPI, 500nits, 23.808×81.052mm, -20~70°C)
ET032AM01-TO (OLED, 262×928, MIPI, 700nits, 23.8×81.05mm, -20~70°C)

Key Features of Measuring Rangefinder Display Solutions

High Visibility
-High-contrast display technology ensures clear measurement data in both bright outdoor and low-light indoor conditions.
Low Power Consumption
-Energy-efficient display solutions help extend battery life for portable measuring devices.
Compact Design
-Slim and lightweight display modules enable easy integration into handheld rangefinders with limited installation space.
Multiple Display Technologies
-Available in OLED, TFT LCD, and monochrome LCD options to meet different application requirements.
Flexible Interface Options
-Support for SPI, I²C, MCU, RGB, MIPI, and other interfaces simplifies hardware integration.
Wide Operating Temperature
-Designed to operate reliably in harsh industrial and outdoor environments.
Excellent Viewing Performance
-Wide viewing angles provide clear visibility from different directions for improved user experience.
Custom Display Solutions
-Custom sizes, resolutions, brightness, touch panels, cover glass, and interface configurations are available to match specific project requirements.
Long-Term Supply
-Stable production and long product lifecycle support industrial and professional equipment manufacturers.

Applications For Measuring Rangefinder Display Solutions

Laser Rangefinders
-Display real-time distance measurements, target information, battery status, and operating modes.
Golf Rangefinders
-Provide clear yardage readings and measurement data for enhanced on-course performance.
Hunting Rangefinders
-Ensure high-contrast visibility in various lighting conditions for outdoor use.
Construction Measuring Tools
-Display distance, area, volume calculations, and measurement settings for professional construction applications.
Surveying Instruments
-Support accurate data presentation in total stations, laser measuring devices, and field surveying equipment.
Industrial Measuring Equipment
-Deliver stable display performance for precision measurement, inspection, and automation systems.
Optical Measuring Devices
-Present measurement values and system information with high clarity for optical instruments.
Portable Test & Measurement Instruments
-Ideal for handheld electronic measuring devices that require compact size, low power consumption, and reliable operation.

Youritech Measuring Rangefinder Display Production and Manufacturing
