8.4 Inch TFT LCD Display 1024×768 LVDS High Brightness 1200nits Wide Temperature LCD Display For Automotive

8.4 Inch Automotive Display Overview

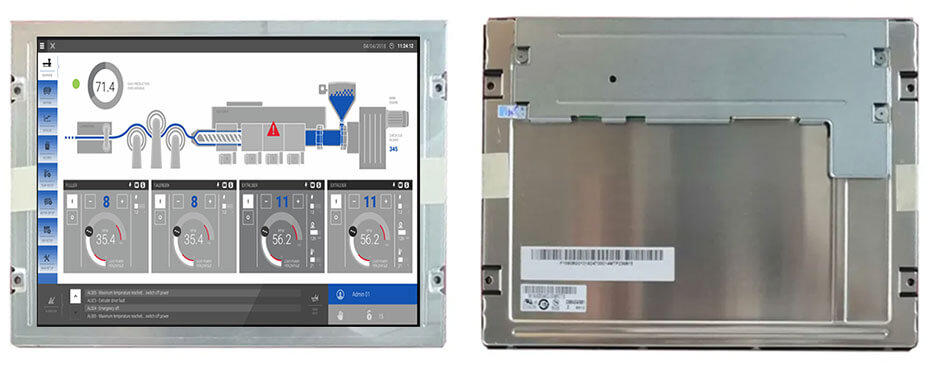

C084XAN01.0 supports display 1024(2)×768(2) (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGBW Rectangle. It features active area of 170.496(W)×127.872(H) mm, outline size of 199.4(W)×149.4(H)×10.5(D) mm, viewing area size of 173.9(W)×131.1(H) mm, with surface treament of Glare (Haze 0%), Hard coating (3H), net weight of 350g (Max.). As a AHVA, Normally Black, Transmissive LCM product, C084XAN01.0 can provides 1200 cd/m² display brightness 800:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 5.7/2.3 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 100K hours, With LED Driver. C084XAN01.0 utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

More 8.4 Inch Automotive Display For Reference

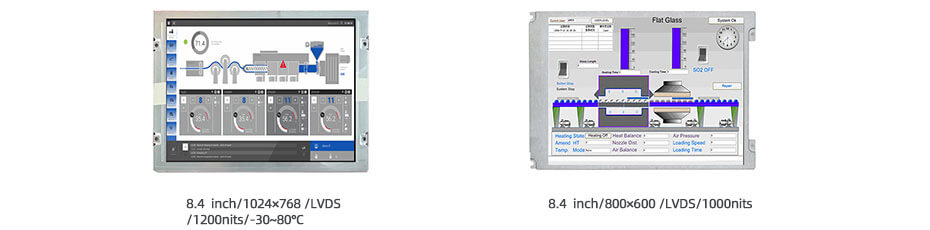

C084XAN01.0 (1024×768, LVDS, IPS, 1200nits, -30~80°C, 199.4×149.4mm)
ET084UH01-ZX (800×600, LVDS, IPS, 1000nits, -20~70°C, 203×142.5mm)
