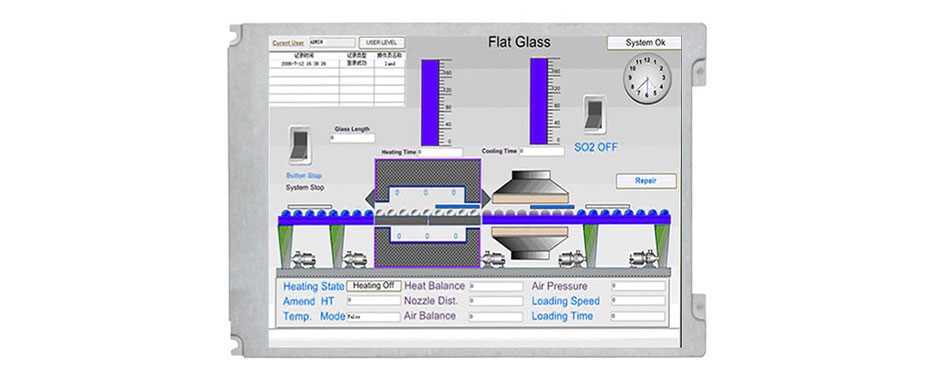

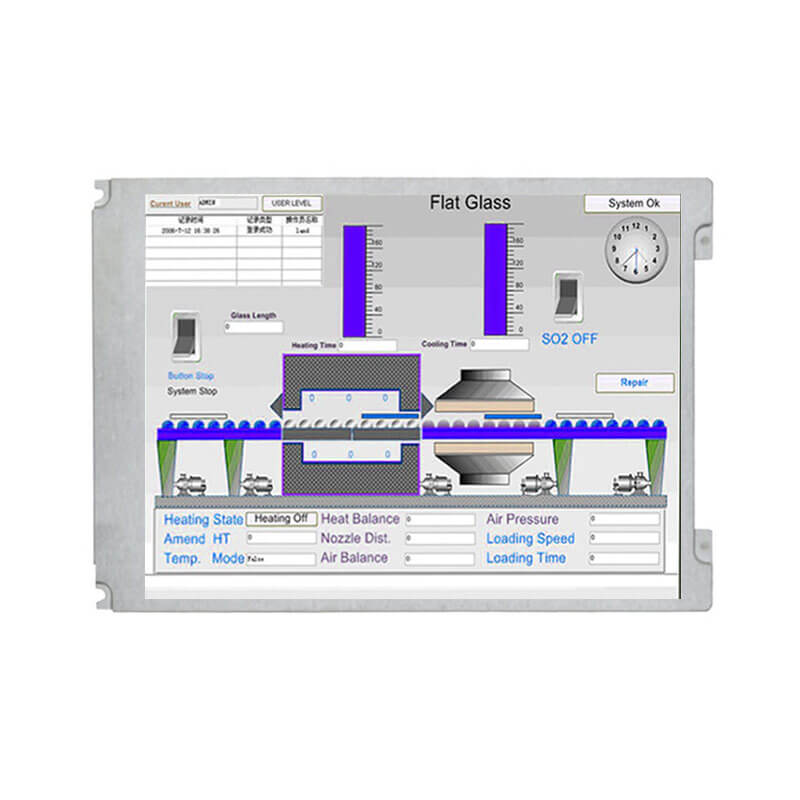

8.4 Inch TFT LCD Display 800×600 LVDS High Brightness 1000nits LCD Display For Automotive OverviewET084UH01-ZX is an 8.4-inch diagonal TFT-LCD display product with a transmissive display mode. ET084UH01-ZX supports a resolution of 800×600 with a standard 4:3 aspect ratio, delivering stable and clear image performance, and utilizes an LVDS interface for signal transmission. It features an active area of 170.4(W)×127.8(H) mm and an outline dimension of 203(W)×142.5(H) mm. The display provides a high brightness of 1000 cd/m², suitable for automotive and high ambient light environments, and offers wide viewing angles of 80/80/80/80 (L/R/U/D). ET084UH01-ZX operates within a temperature range of -20 to 70°C and can be stored within -30 to 80°C. This model does not include a touch function.
More 8.4 Inch Automotive Display For Reference
C084XAN01.0 (1024×768, LVDS, IPS, 1200nits, -30~80°C, 199.4×149.4mm)
ET084UH01-ZX (800×600, LVDS, IPS, 1000nits, -20~70°C, 203×142.5mm)
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
