6"-15.6" Touch Screen (8.4")

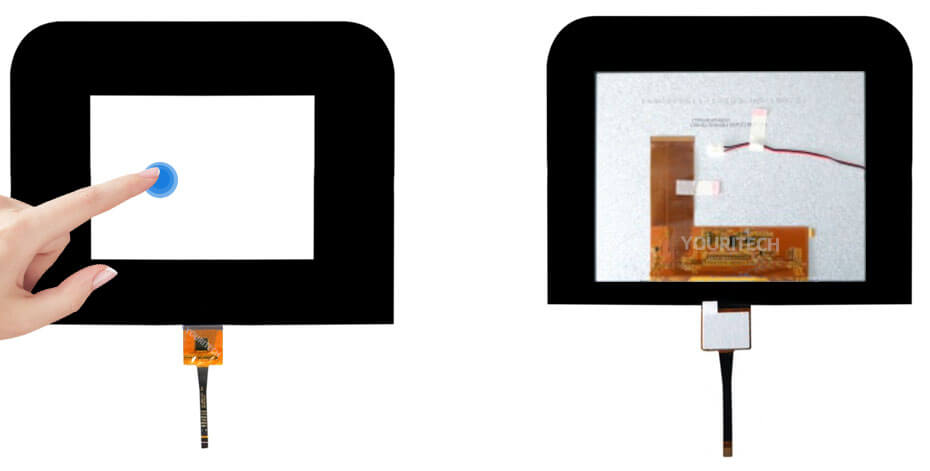

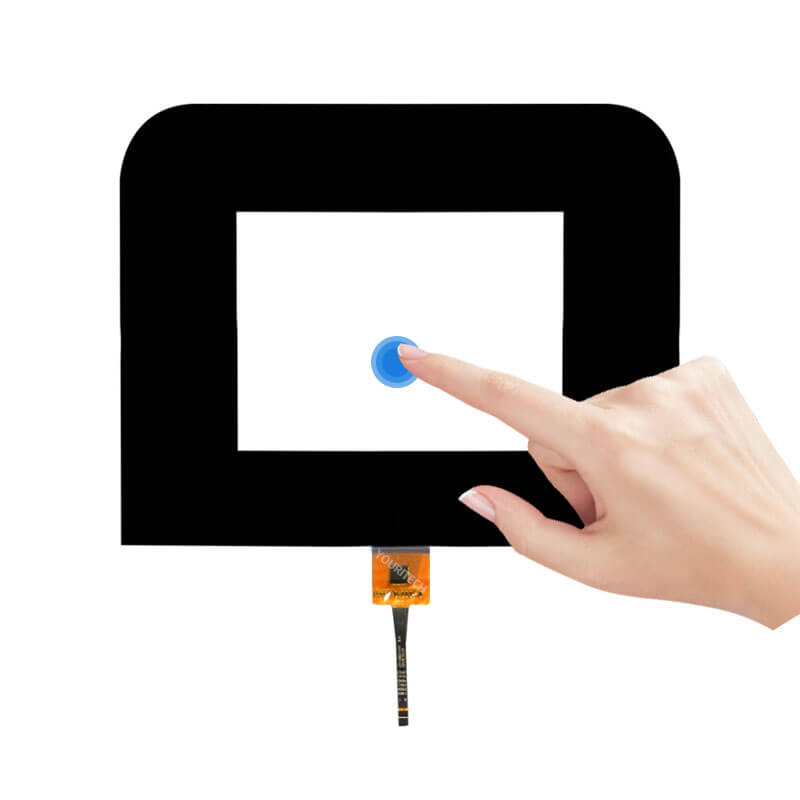

8.4 Inch Capacitive Touch Screen GT9911 Touch Display For Cash Register

Part No.:ET084CTP01
Size:8.4″ inch
Resolution:Optional
Panel Interface:I2C
Display mode:PCAP
Outline Dimension:251x197.35x2.9mm
Active Area:171.02x128.56mm
Viewing Angle L/R/U/D:Full view
Brightness（cd/m2）:Optional
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:yes

8.4 Inch Capacitive Touch Screen
Product structure: Glass + ITO Glass
IC: GT9911
Touch Points: Multi-touch
Interface Type: I2C
Display Area: 171.02x128.56mm
Outline Dim.: 171.02x128.56mm
Operation Temperature: -20 ~ 70°C
Storage Temperature: -30 ~ 80°C

The touch screens can be matched and integrated by all kinds of display panels

SPECIALTREATMENT
SUPPORT AG / AR / AF GLASS(ANTI-GLARE, ANT-REFLECTIVE, ANT-FINGERPRINT)

PRODUCTION AND MANUFACTURING
