6"-15.6" Touch Screen (7")

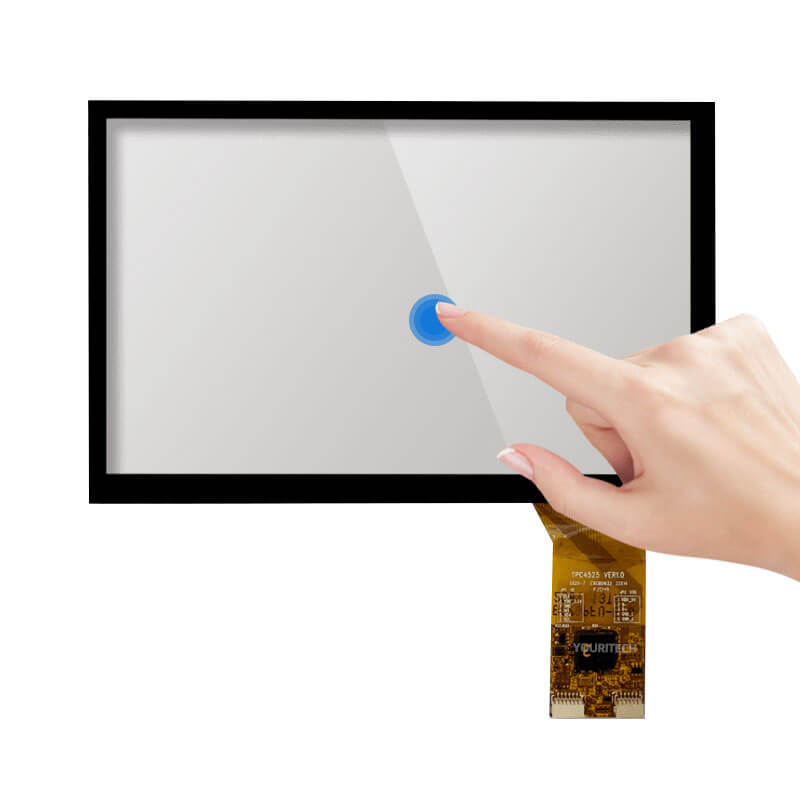

7 Inch PCAP Touch Control G/G Mechanism EETI IC COF Type USB/I2C Capacitive Touch Screen

Part No.:ET070CTP01
Size:7″ inch
Resolution:Optional
Panel Interface:I2C
Display mode:PCAP
Outline Dimension:164.55x104.71mm
Active Area:153x92.04mm
Viewing Angle L/R/U/D:Full view
Brightness（cd/m2）:Optional
Operation / Storage Temp:-10~60°C / -20~70°C
Touch:yes

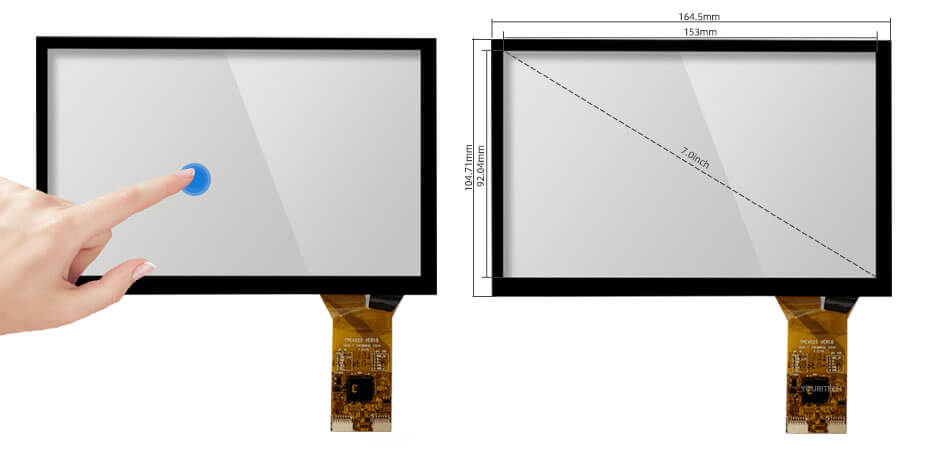

7 Inch Capacitive Touch Screen
Product structure:Glass/Glass
Surface hardness: Hard coating (6H)
Touch Points: Multi-touch
Interface Type: I2C
Display Area: 153x92.04 mm
Outline Dim.: 164.55x104.71 mm
Operation Temperature: -10 ~ 70°C
Storage Temperature: -20 ~ 70°C

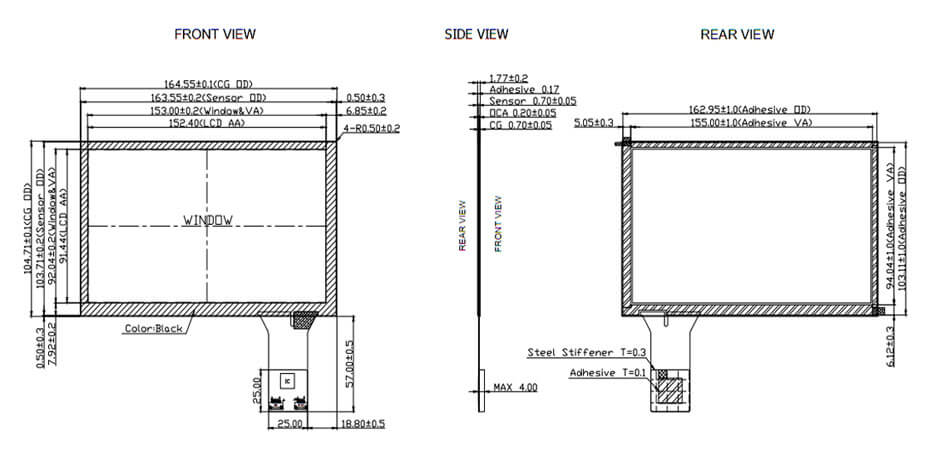

7 Inch Capacitive Touch Screen Drawing

The touch screens can be matched and integrated by all kinds of display panels

SPECIALTREATMENT
SUPPORT AG / AR / AF GLASS(ANTI-GLARE, ANT-REFLECTIVE, ANT-FINGERPRINT)

PRODUCTION AND MANUFACTURING
