6"-15.6" Touch Screen (8.4")

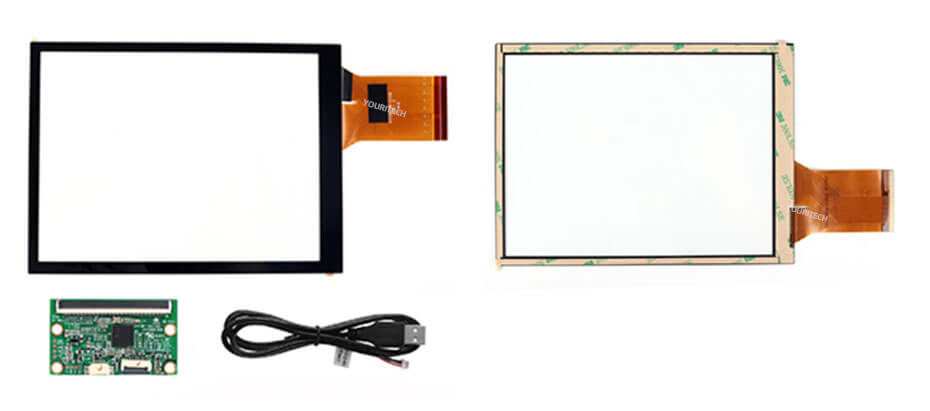

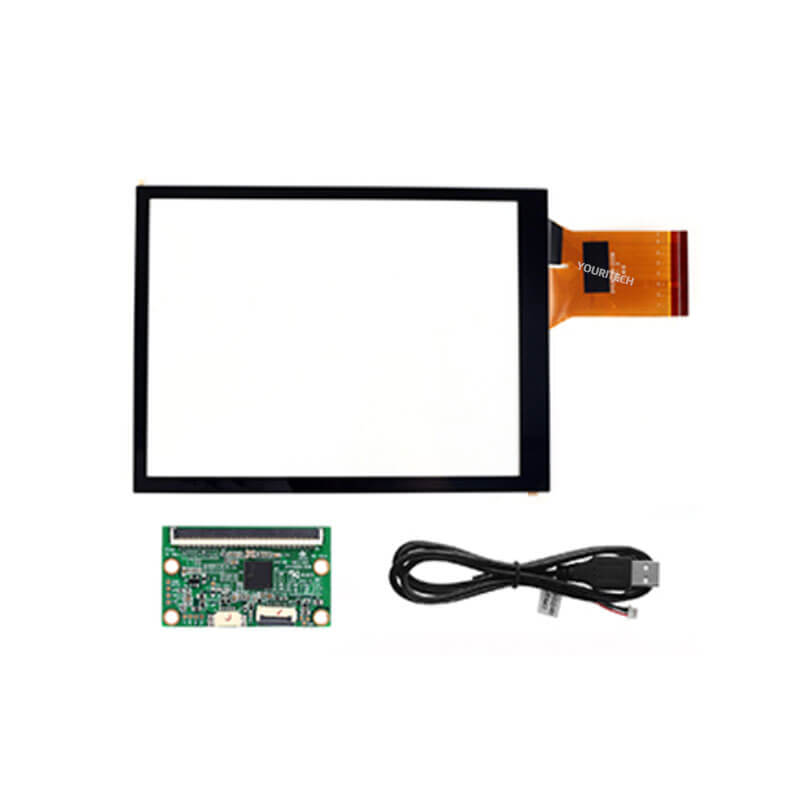

8.4 Inch USB IIC Capacitive Touch Screen

  • Part No.:ET084CTP03
  • Size:8.4″ inch
  • Resolution:Optional
  • Panel Interface:I2C,USB
  • Display mode:PCAP
  • Outline Dimension:192.17x142.5mm
  • Active Area:170.4x127.8mm
  • Viewing Angle L/R/U/D:Full view
  • Brightness(cd/m2):Optional
  • Operation / Storage Temp:-20~70°C / -30~80°C
  • Touch:yes

8.4 Inch Capacitive Touch Screen
Product structure: Glass + ITO Glass
Touch Points: Multi-touch
Interface Type: I2C,USB
Display Area: 170.4x127.8 mm
Outline Dim.: 192.17x142.5 mm
Operation Temperature: -20 ~ 70°C
Storage Temperature: -30 ~ 80°C

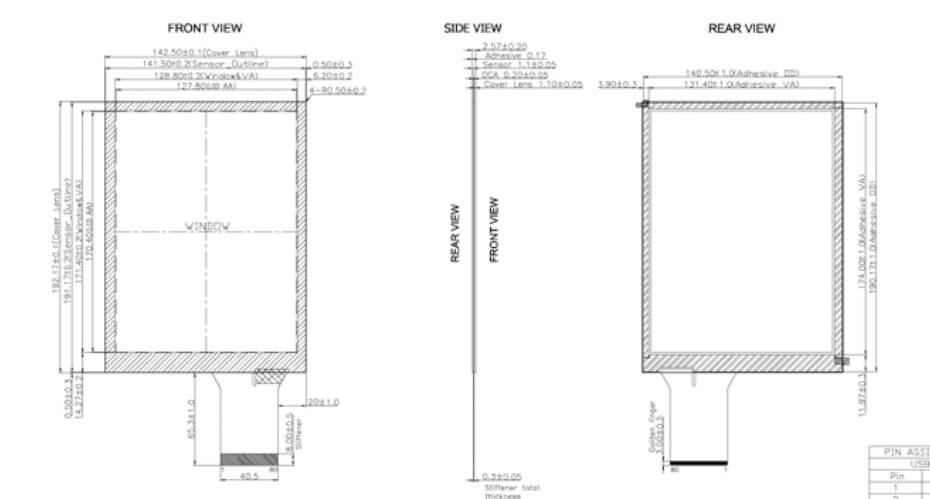

8.4 Inch Capacitive Touch Screen Drawing




The touch screens can be matched and integrated by all kinds of display panels



SPECIALTREATMENT
SUPPORT AG / AR / AF GLASS(ANTI-GLARE, ANT-REFLECTIVE, ANT-FINGERPRINT)

PRODUCTION AND MANUFACTURING

APPLICATIONS
