7.84 Inch Stretched Bar Display 400x1280 IPS MIPI 700nits High Brightness TFT LCD Display.

7.84 Inch Stretched Bar Display Overview

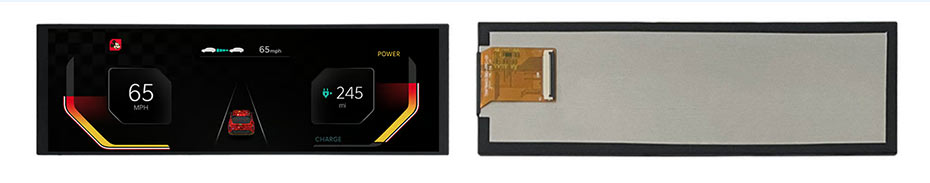

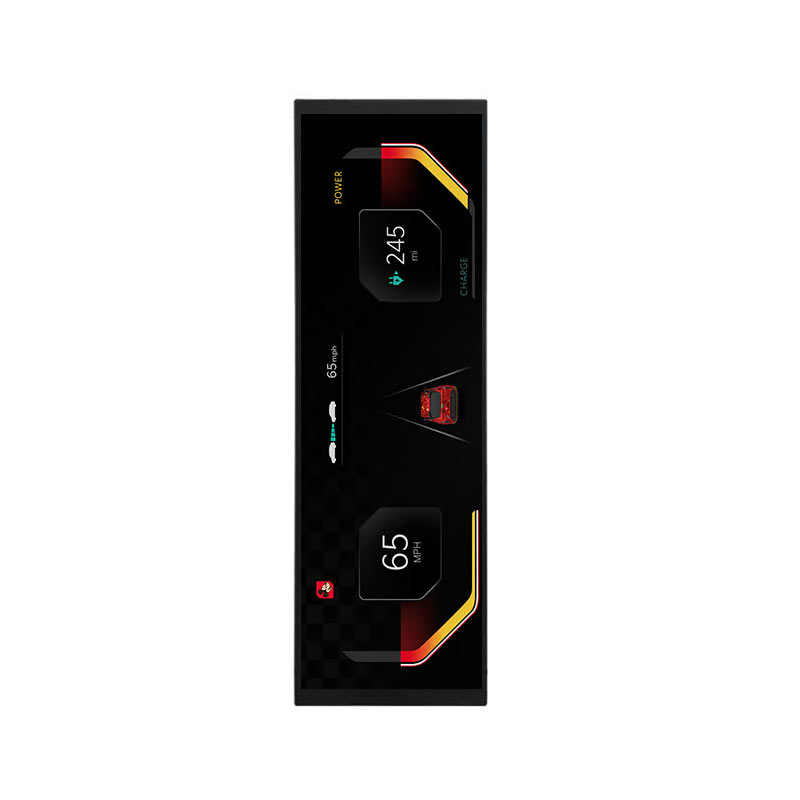

ET078HD01-T is a 7.84-inch stretched bar TFT LCD display featuring an IPS panel with transmissive display mode. It supports a resolution of 400 × 1280 pixels and uses a MIPI interface for high-speed signal transmission. The display offers an active area of 59.4 (W) × 190.08 (H) mm within an outline dimension of 67.14 (W) × 205.12 (H) mm, making it ideal for tall, vertical-oriented applications. With wide viewing angles of 80° in all directions (L/R/U/D), it provides stable and consistent image quality. The typical brightness reaches 700 cd/m², ensuring clear readability even under bright ambient-light conditions. ET078HD01-T is designed for reliable operation across a wide temperature range, supporting −20 to 70°C operating temperature and −30 to 80°C storage temperature. This model is supplied without touch functionality, making it suitable for high-brightness stretched bar display applications in industrial systems, transportation equipment, and embedded devices.

More 7.84 Inch Bar Displays For Reference
ET078HD01-T (400x1280, MIPI, IPS, 700nits, -20~70°C, 67.14x205.12mm)
ET070BA01-TT (400x1280,LVDS, IPS, 700nits, -20~70°C, 67.14x205.12mm)
