LQ079L1SX01 7.9 Inch TFT LCD Display 1536x2048 MIPI LCD Panel With Driver Board

7.9 Inch LCD Display Overview
LQ079L1SX01 is a 7.9 inch diagonal Oxide TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. LQ079L1SX01 supports display 1536(RGB)×2048 (QXGA) with aspect ratio of 3:4 (W:H), whose pixels are arranged in RGB Vertical Stripe, it's pixel density is 325 PPI. As for mechanical detail, it features active area of 119.808(W)×159.744(H) mm, outline size of 125.55(W)×171.3(H)×3.15(D) mm, net weight of 65.0g (Typ.). As a IPS, Normally Black, Transmissive LCM product, LQ079L1SX01 can provides 460 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 35 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 70% (NTSC). This product adopted 6S4P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. LQ079L1SX01 utilizes MIPI (2 ch, 4 data lanes) as it's signal inputting systerm, which connected by 50 pins Connector with power supply voltage of 1.8/5.6/-5.6V (Typ.)(IOVCC/VSP/VSN). It's typical vertical frame rate (Fv) is 60Hz.

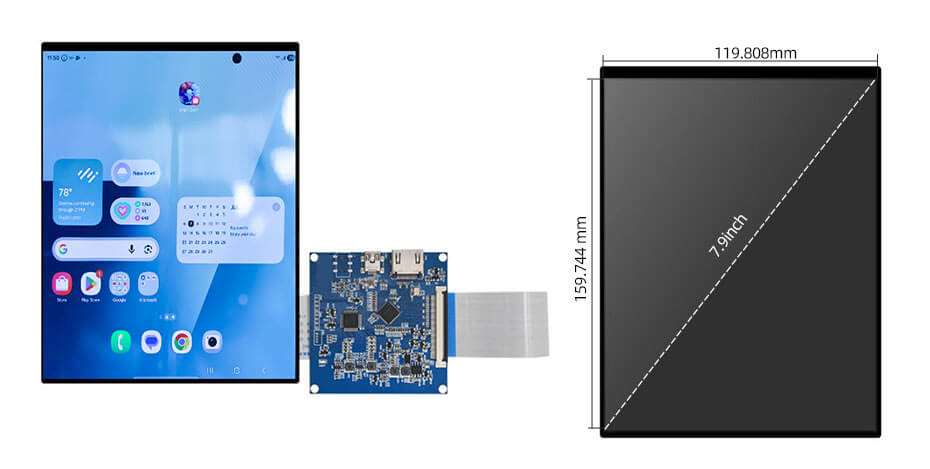

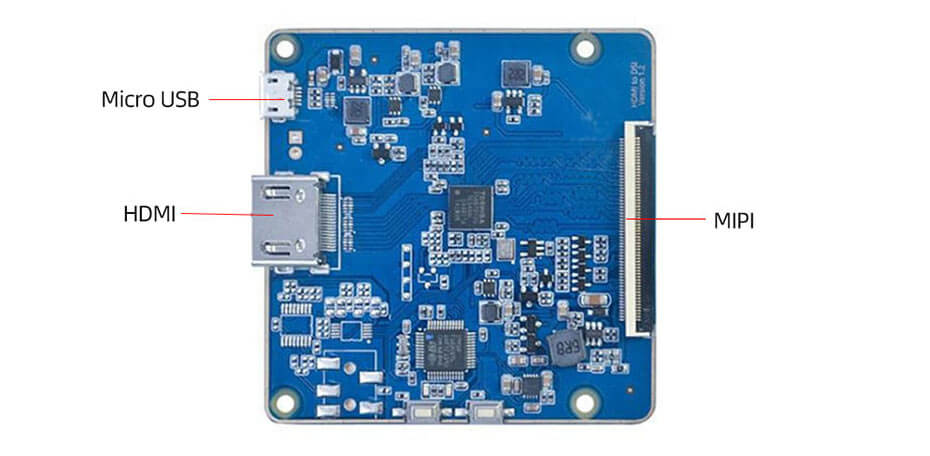

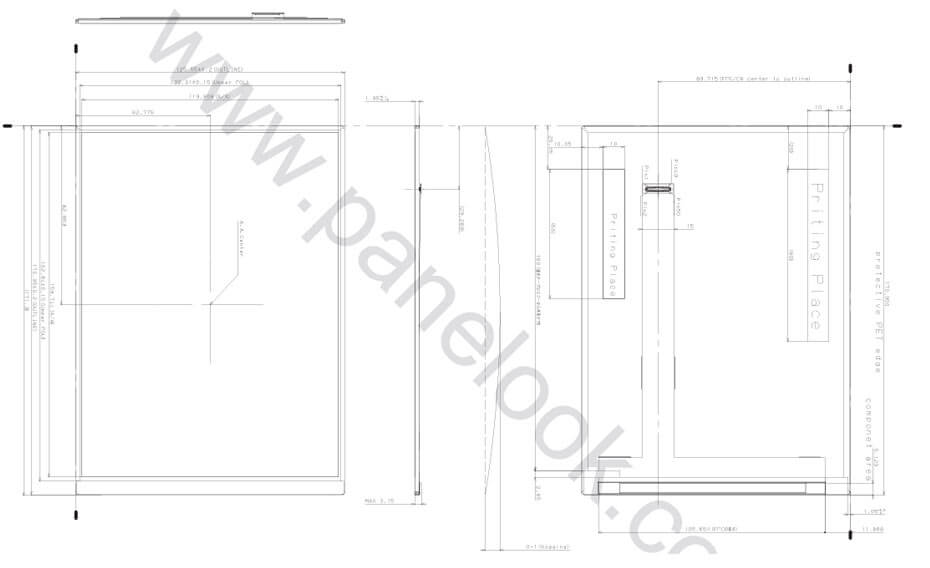

7.9 Inch LCD Display Drawing
