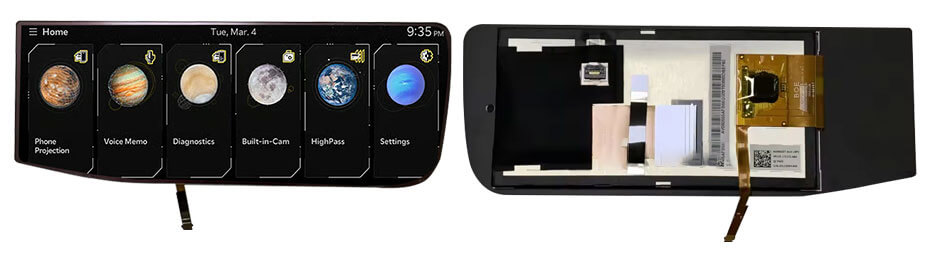

6 Inch TFT LCD Display 640×1280 LVDS+SPI High Brightness 600nits Wide Temperature LCD Display For Automotive

6 Inch Automotive Display Overview

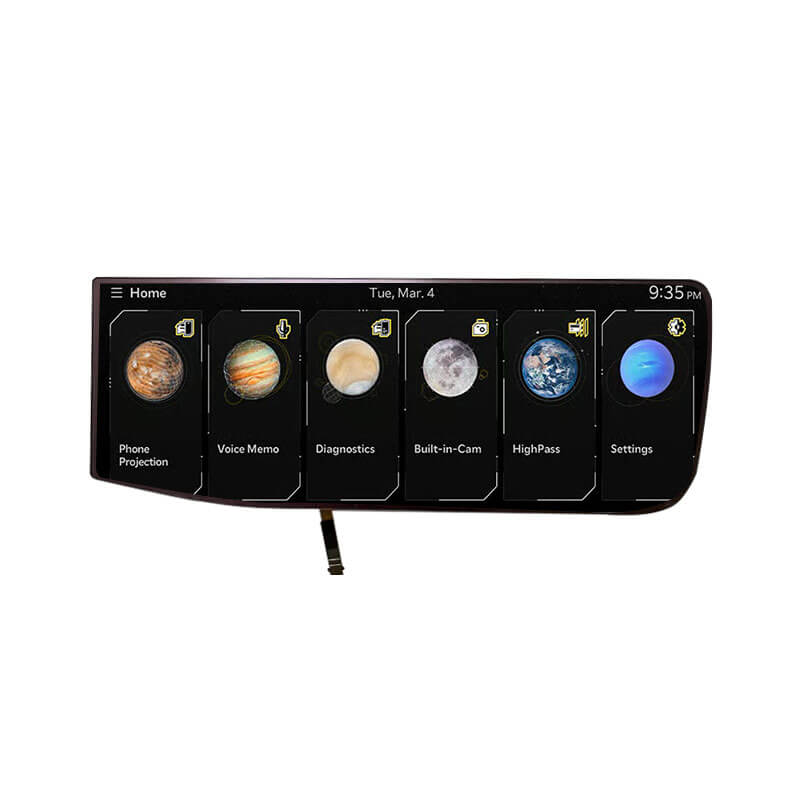

AV060ZET-A10-28P1 supports display 640(RGB)×1280 with aspect ratio of 1:2 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 67.968(W)×135.936(H) mm, outline size of 83.25(W)×218.761(H)×12(D) mm, with surface treament of Anti Fingerprint + Antiglare, Hard coating (6H), Antireflection. As a ADS, Normally Black, Transmissive Assembly product, AV060ZET-A10-28P1 can provides 600 cd/m² display brightness 1200:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 75% (NTSC). This product adopted 7S2P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 12K hours, external backlight driver is additionally needed. AV060ZET-A10-28P1 utilizes LVDS (1 ch, 8-bit) + SPI as it's signal inputting systerm, which connected by 50 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

More 6 Inch Automotive Display For Reference
ET060FH10-TT (1080×1920, MIPI, IPS, 800nits, -20~70°C, 81.7×143.8mm)
M060AWRD R0 (1280×640, LVDS, IPS, 1000nits, -40~85°C, 145.52×81.51mm)
AV060ZET-A10-28P1 (640×1280, LVDS, IPS, 600nits, -40~85°C, 83.25×218.761mm)
