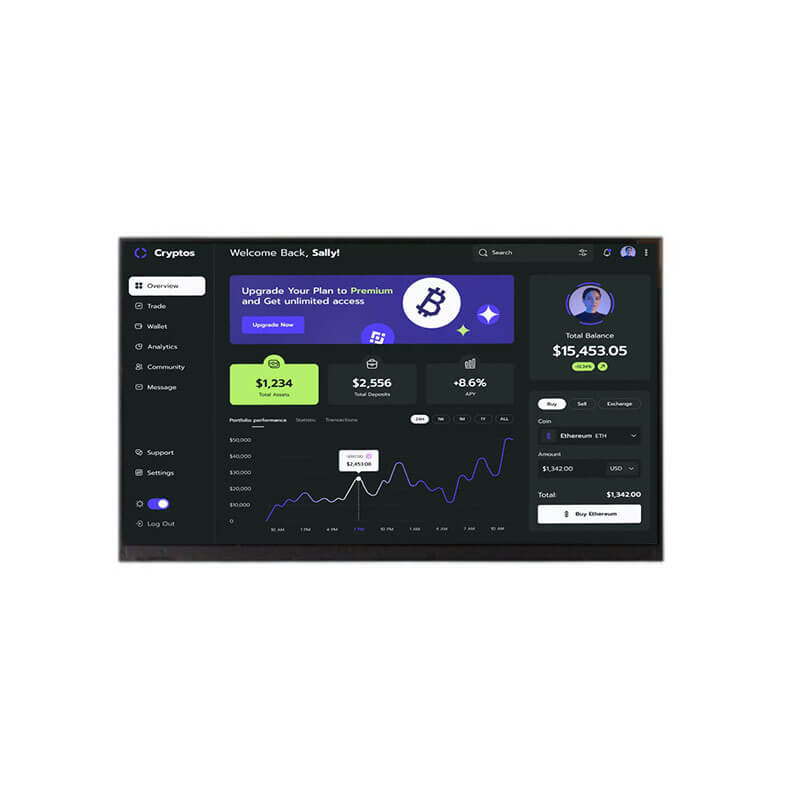

6 Inch TFT LCD Display 1280×640 LVDS High Brightness 1000nits Wide Temperature LCD Display For Automotive

6 Inch Automotive Display Overview
M060AWRD R0 supports display 1280(RGB)×640 with aspect ratio of 2:1 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 136.32(W)×68.16(H) mm, outline size of 145.52(W)×81.51(H)×13.2(D) mm, with surface treament of Hard coating, net weight of 140g (Max.). As a IPS, Normally Black, Transmissive LCM product, M060AWRD R0 can provides 1000 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 75% (NTSC). This product adopted 6S3P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 10K hours, external backlight driver is additionally needed. M060AWRD R0 utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 40 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

More 6 Inch Automotive Display For Reference
ET060FH10-TT (1080×1920, MIPI, IPS, 800nits, -20~70°C, 81.7×143.8mm)
M060AWRD R0 (1280×640, LVDS, IPS, 1000nits, -40~85°C, 145.52×81.51mm)
AV060ZET-A10-28P1 (640×1280, LVDS, IPS, 600nits, -40~85°C, 83.25×218.761mm)
