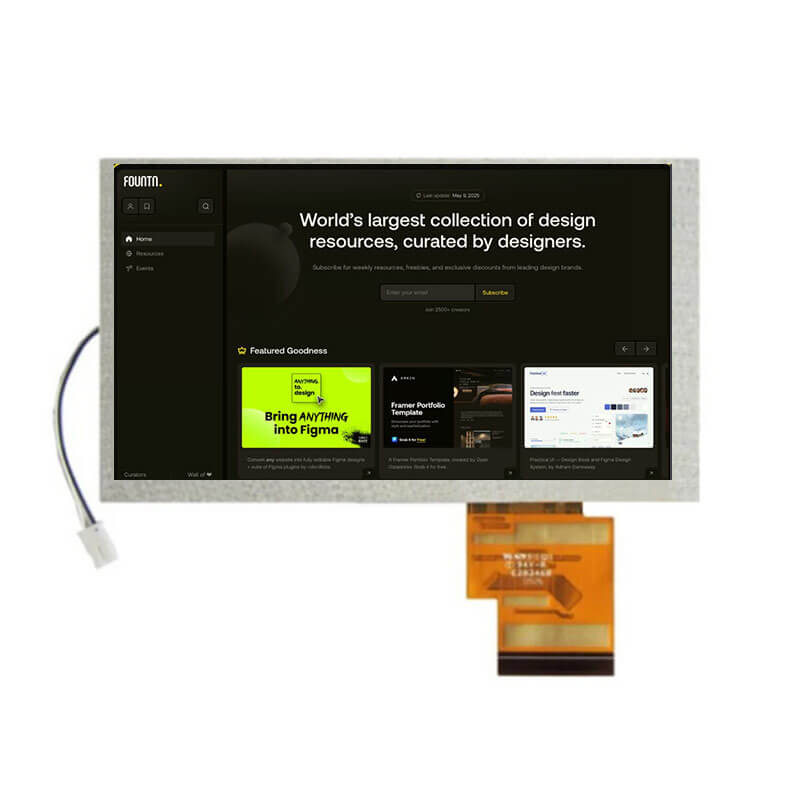

6.2 Inch TFT LCD Display 800×480 TTL LCD Display For Automotive

6.2 Inch Automotive Display Overview

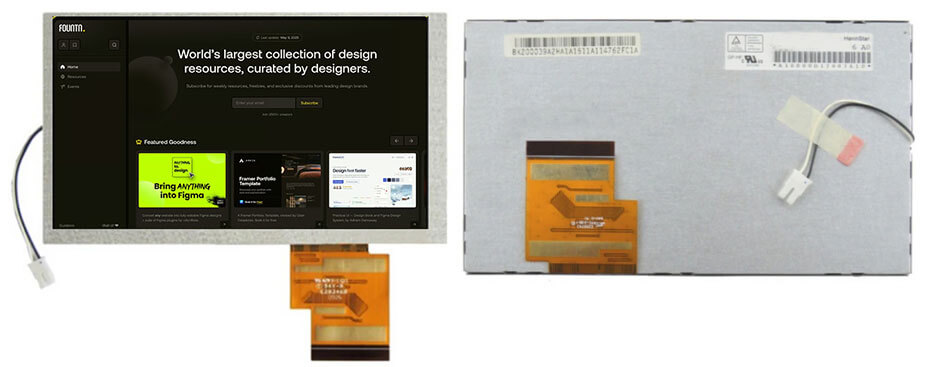

HSD062IDW1-A02 is a 6.2 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen.HSD062IDW1-A02 supports display 800(RGB)×480 (WVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 137.52(W)×77.232(H) mm, outline size of 155.2(W)×88.2(H)×5.3(D) mm, viewing area size of 140.7(W)×80.4(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 120g (Typ.). As a TN, Normally White, Transmissive LCM product, HSD062IDW1-A02 can provides 400 cd/m² display brightness 600:1 transimissive contrast ratio, 75/75/70/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 2/6 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 262K/16.2M colors, also with performance of color gamut 50% (NTSC). This product adopted 3S7P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. HSD062IDW1-A02 utilizes TTL (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 60 pins FPC with power supply voltage of 3.3/10.0/15.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL). It's typical vertical frame rate (Fv) is 60Hz.

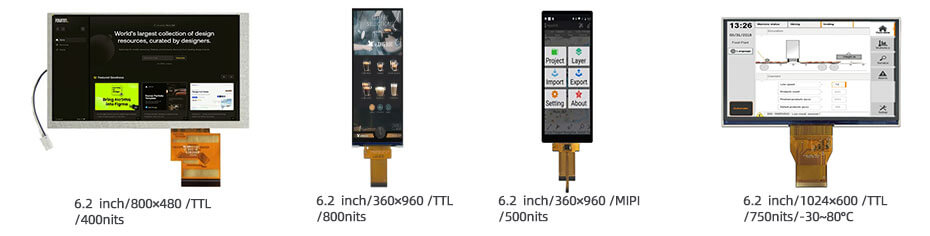

More 6.2 Inch Automotive Display For Reference
HSD062IDW1-A02 (800×480, TTL, IPS, 400nits, -20~70°C, 155.2×88.2mm)
ET062NH02-T (360×960, TTL, IPS, 800nits, -20~70°C, 58.1×154.9mm)
ET062NH02-TT (360×960, MIPI, IPS, 500nits, -20~70°C, 68×165mm)
ET062WS01-T (1024×600, TTL, IPS, 750nits, -30~80°C, 144.27×88.1mm)
