5.1"-7" LCD Display (6")

6 Inch TFT LCD Display 1080×1920 MIPI High Brightness 800nits LCD Display With In-Cell Touch For Automotive

Part No.:ET060FH10-TT
Size:6″ inch
Resolution:1080x1920
Panel Interface:MIPI
Display mode:Transmissive
Outline Dimension:81.7x143.8mm
Active Area:74.52x132.48mm
Viewing Angle L/R/U/D:80/80/80/80
Brightness（cd/m2）:800(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:yes

6 Inch TFT LCD Display 1080×1920 MIPI High Brightness 800nits LCD Display With In-Cell Touch For Automotive Video

6 Inch TFT LCD Display 1080×1920 MIPI High Brightness 800nits LCD Display With In-Cell Touch For Automotive Overview

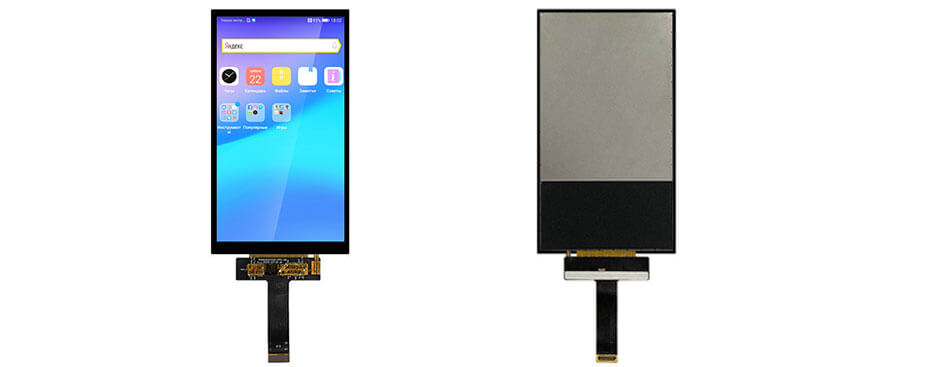

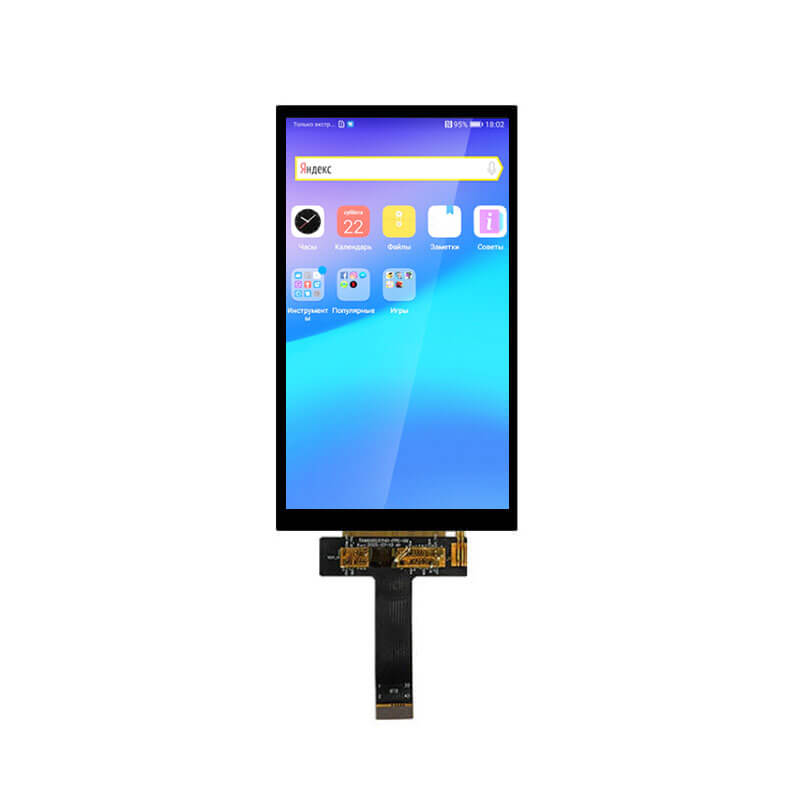

ET060FH10-TT is a 6-inch diagonal TFT-LCD display product with a transmissive display mode and integrated In-Cell touch functionality. ET060FH10-TT supports a resolution of 1080×1920, delivering a high-definition portrait display format, and utilizes a MIPI interface for signal transmission. It features an active area of 74.52(W)×132.48(H) mm and an outline dimension of 81.7(W)×143.8(H) mm. The display provides a brightness of 800 cd/m² (typ.), suitable for automotive applications and bright ambient environments, and offers wide viewing angles of 80/80/80/80 (L/R/U/D). ET060FH10-TT operates within a temperature range of -20 to 70°C and can be stored within -30 to 80°C. This model includes touch functionality.

More 6 Inch Automotive Display For Reference
ET060FH10-TT (1080×1920, MIPI, IPS, 800nits, -20~70°C, 81.7×143.8mm)
M060AWRD R0 (1280×640, LVDS, IPS, 1000nits, -40~85°C, 145.52×81.51mm)
AV060ZET-A10-28P1 (640×1280, LVDS, IPS, 600nits, -40~85°C, 83.25×218.761mm)
