6.9 Inch TFT LCD Display 1280×720 LVDS SPI High Brightness 750nits Wide Temperature LCD Display For Automotive

6.9 Inch Automotive Display Overview

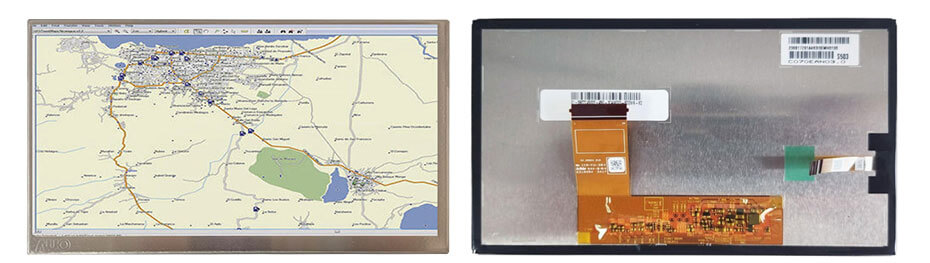

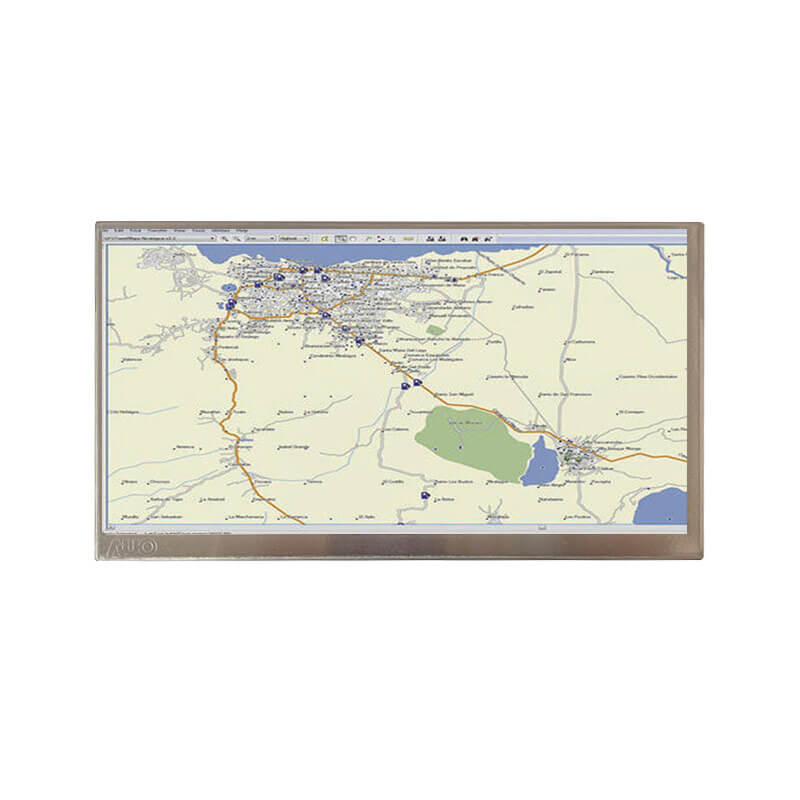

C070EAN03.0 is a 6.9 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. C070EAN03.0 supports display 1280×720(RGB) (WXGA) with aspect ratio of 2:1 (W:H), whose pixels are arranged in RGB Horizontal Stripe. It features active area of 156.48(W)×80.136(H) mm, outline size of 167(W)×93(H) mm, with surface treament of Antiglare, net weight of 150g (Max.). As a AHVA, Normally Black, Transmissive LCM product, C070EAN03.0 can provides 750 cd/m² display brightness 1000:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 75% (NTSC). This product adopted 8S2P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 10K hours, external backlight driver is additionally needed. C070EAN03.0 utilizes LVDS (1 ch, 8-bit) + SPI as it's signal inputting systerm, which connected by 40 pins FPC with power supply voltage of 3.3/13.5/20/-9V (Typ.)(VDD/AVDD/VGH/VGL). It's typical vertical frame rate (Fv) is 60Hz.
