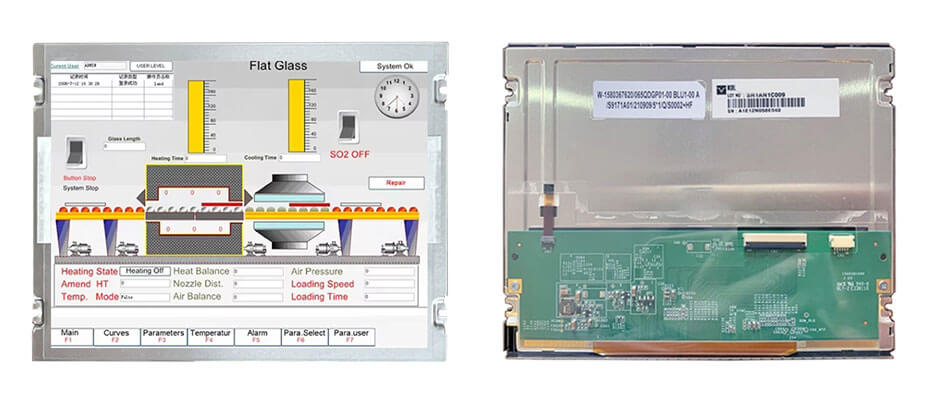

6.5 Inch TFT LCD Display 640×480 Parallel RGB High Brightness 1200nits Wide Temperature LCD Display For Automotive

6.5 Inch Automotive Display Overview

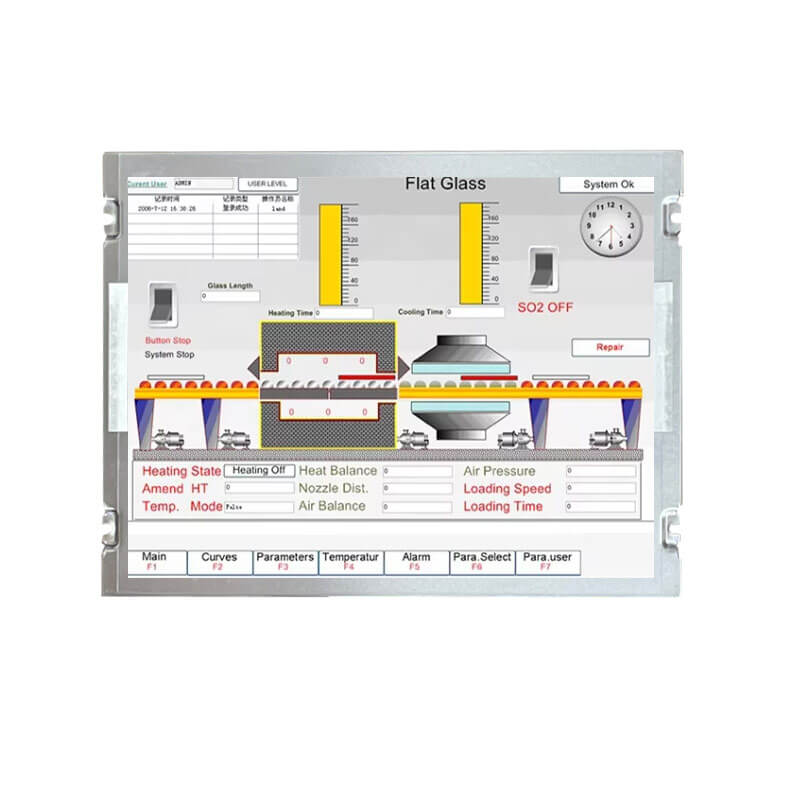

P0650VGF1MA01 (Alias: TM065QDGP01-00) is a 6.5 inch diagonal a-Si TFT-LCD display screen product from TIANMA, with a built-in WLED backlight, without backlight driver, without touch screen. P0650VGF1MA01 supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 132.48(W)×99.36(H) mm, outline size of 154(W)×121(H)×11(D) mm, viewing area size of 135.5(W)×102.4(H) mm, with surface treament of Antiglare, net weight of TBD. As a SFT, Normally Black, Transmissive LCM product, P0650VGF1MA01 can provides 1200 cd/m² display brightness 800:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 70% (NTSC). This product adopted 6S2P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 100K hours, external backlight driver is additionally needed. P0650VGF1MA01 utilizes Parallel RGB (1 ch, 8-bit) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

More 6.5 Inch Automotive Display For Reference

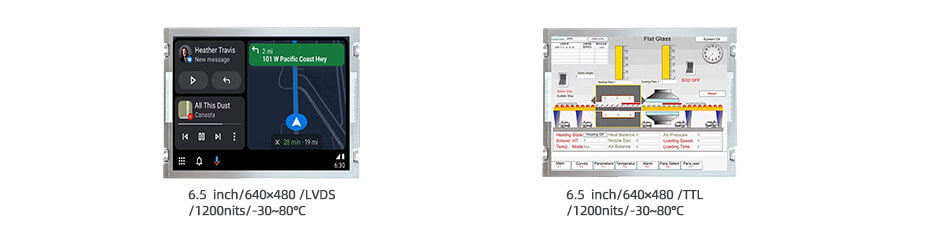

P0650VGF1MA00 (640×480, LVDS, IPS, 1200nits, -30~80°C, 154×121mm)
P0650VGF1MA01 (640×480, TTL, IPS, 1200nits, -30~80°C, 154×121mm)
