5.1"-7" LCD Display (6.4")

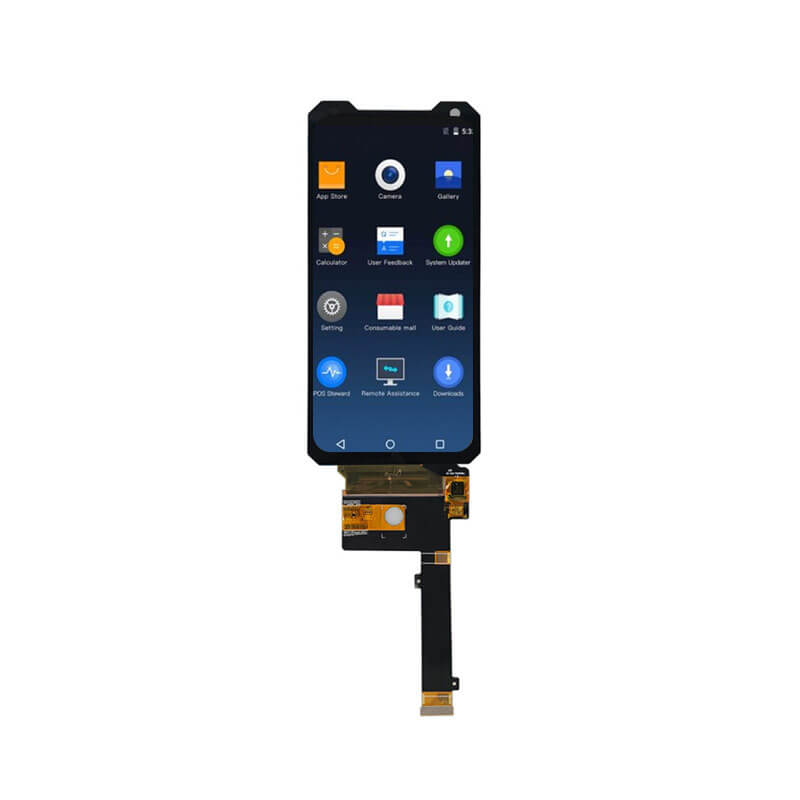

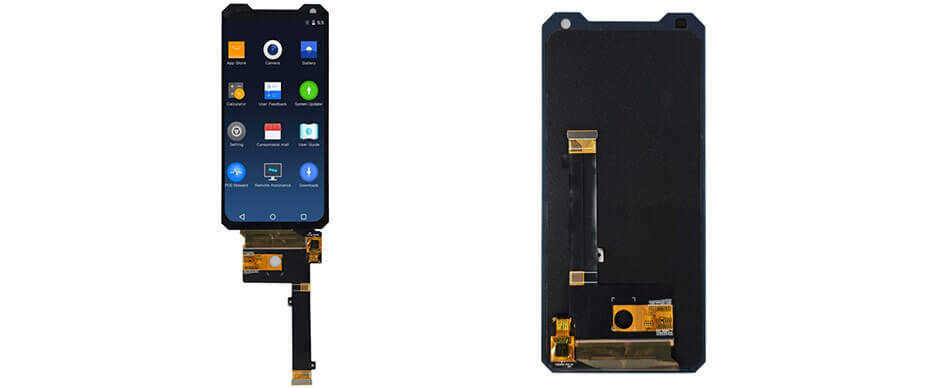

6.4 Inch Wide Temperature OLED Display 1080×2244 MIPI -40°C to 65°C AMOLED Display With Capacitive Touch

  • Part No.:ET064WF01-YX
  • Size:6.4″ inch
  • Resolution:1080x2244
  • Panel Interface:MIPI
  • Display mode:AM-OLED
  • Outline Dimension:74.64x161.62mm
  • Active Area:68.04x147.42mm
  • Viewing Angle L/R/U/D:80/80/80/80
  • Brightness(cd/m2):400nits
  • Operation / Storage Temp:-40~65°C / -50~70°C
  • Touch:yes


6.4 Inch Wide Temperature OLCD Display Overview
6.4 Inch Wide Temperature OLED Display 1080×2244 MIPI -40°C to 65°C AMOLED Display With Capacitive Touch.


More 6.4 Inch Wide Temperature Displays For Reference

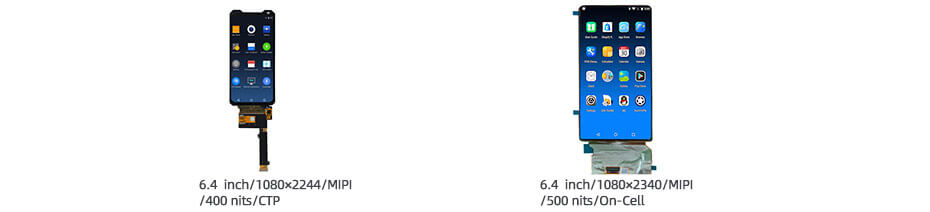

ET064WF01-YX (OLCD
, 1080×2244, MIPI, IPS, 400nits, -40~65°C, 74.64×161.62mm, CTP)
ET064WF01-HG(OLCD, 1080×2340, MIPI, IPS, 500nits, -40~70°C, 69.84×150.42mm, On-Cell)


Wide Temperature Displays Technology


YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options


Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
