6.2 Inch Wide Temperature LCD Display 1024×600 LVDS -30°C to 85°C High Brightness 1000nits TFT LCD Display

6.2 Inch Wide Temperature LCD Display Overview

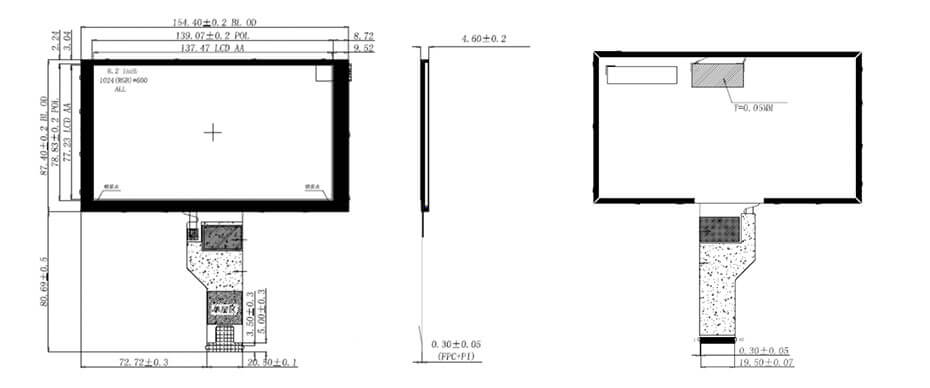

The ET062WS01-GL is a 6.2-inch wide-temperature, high-brightness TFT LCD display module. It features a resolution of 1024×600, utilizes an LVDS interface, and delivers a high brightness of 1000 nits. The module supports a wide operating temperature range of -30°C to 85°C, with the same range for storage. Its active display area measures 137.47x77.23 mm, housed within an outline dimension of 154.7x87.7 mm. The display provides symmetrical and wide viewing angles of 85/85/85/85 (L/R/U/D) and does not incorporate touch functionality.

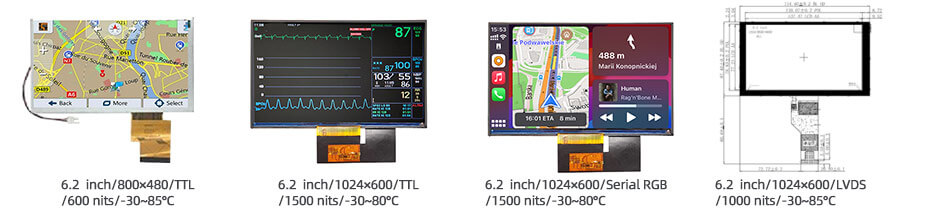

More 6.2 Inch Wide Temperature Displays For Reference
ET062WV01-S (LCD, 800×480, TTL, IPS, 600nits, -30~85°C, 155.2×88.2mm)
ET062WS01-F (LCD, 1024×600, MIPI, IPS, 1500nits, -30~80°C, 144.33×88.16mm)
ET062WS02-F (LCD, 1024×600, Serial RGB, IPS, 1500nits, -30~80°C, 144.33×88.16mm)
ET062WS01-GL (LCD, 1024×600, LVDS, IPS, 1000nits, -30~85°C, 154.7×87.7mm)

Wide Temperature Displays Technology

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
