6.2 Inch Stretched Bar Display 360x960 IPS MIPI TFT LCD Display

6.2 Inch Stretched Bar Display Overview

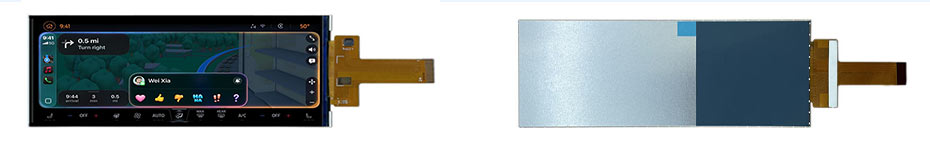

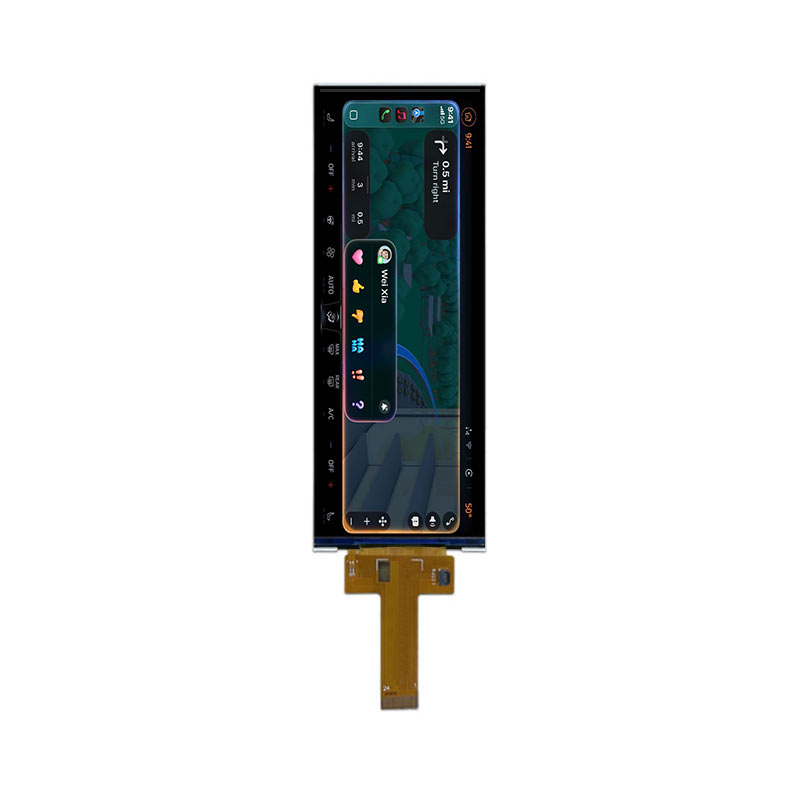

ET062NH01-T is a 6.2-inch stretched bar TFT LCD display featuring an IPS panel. It supports a resolution of 360 × 960 pixels and utilizes a MIPI interface for high-speed signal transmission. The display is designed in a slim, elongated form factor with an outline dimension of 58.1 (W) × 154.9 (H) mm, making it suitable for vertical stretched display applications. Benefiting from IPS technology, it provides wide and stable viewing performance in all directions. The typical brightness reaches 350 nits, ensuring clear visibility under standard indoor lighting conditions. ET062NH01-T is designed for reliable operation, supporting an operating temperature range of −20 to 70°C and a storage temperature range of −30 to 80°C. This model is supplied without touch functionality, making it well suited for information display and embedded system applications requiring a slim, elongated LCD solution.

More 6.2 Inch Bar Displays For Reference
ET062NH01-T (360x960, MIPI, IPS, 350nits, -20~70°C, 58.1x154.9mm)
ET037BA01-Z (360x960, TTL, IPS, 800nits, -20~70°C, 58.1x154.9mm)

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
