6.2 Inch Stretched Bar Display Overview

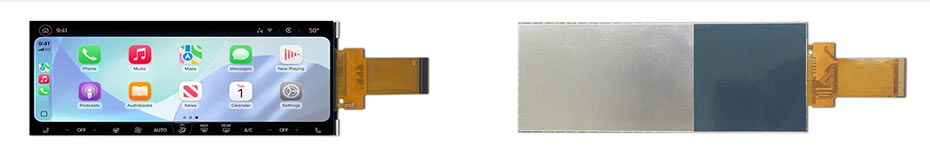

ET062NH02-T is a 6.2-inch stretched bar TFT LCD display featuring an IPS panel with transmissive display mode. It supports a resolution of 360 × 960 pixels and uses a TTL interface for signal transmission. The display offers an active area of 55.3 (W) × 147.46 (H) mm, within a slim outline dimension of 58.1 (W) × 154.9 (H) mm, making it ideal for vertical elongated display applications. With wide viewing angles of 80° in all directions (L/R/U/D), it ensures stable and consistent image quality. The typical brightness reaches 800 cd/m², providing excellent visibility even in bright ambient-light conditions. ET062NH02-T is designed for reliable operation across a wide temperature range, supporting −20 to 70°C operating temperature and −30 to 80°C storage temperature. This model is supplied without touch functionality, making it suitable for high-brightness industrial, transportation, and embedded system applications.
More 6.2 Inch Bar Displays For Reference

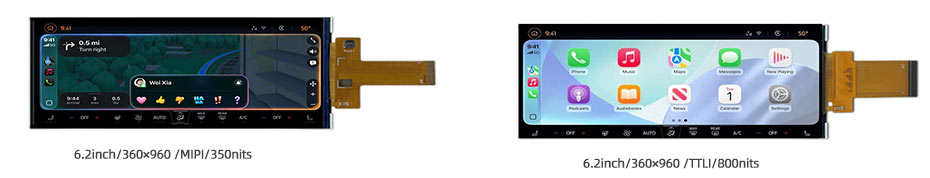

ET062NH01-T (360x960, MIPI, IPS, 350nits, -20~70°C, 58.1x154.9mm)
ET037BA01-Z (360x960, TTL, IPS, 800nits, -20~70°C, 58.1x154.9mm)
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
