0.48"-5" LCD Display (5")

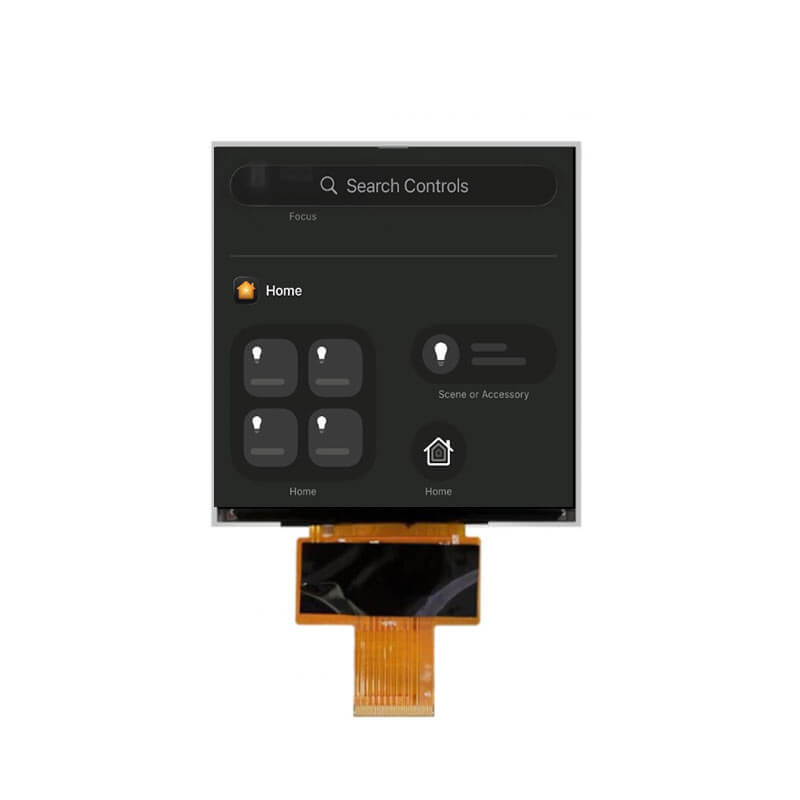

5 Inch Square Display IPS 720x720 MIPI TFT LCD Display With In-Cell Touch

Part No.:ET050SQ01-Z
Size:5″ inch
Resolution:720x720
Panel Interface:MIPI
Display mode:Transmissive
Outline Dimension:93.67x96.72mm
Active Area:91.37x91.37mm
Viewing Angle L/R/U/D:85/85/85/85
Brightness（cd/m2）:350(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:yes

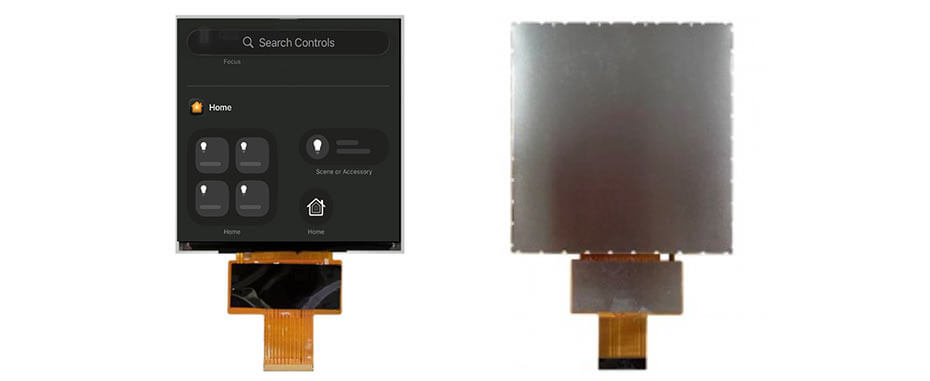

5 Inch Square Display Overview
ET050SQ01-Z is a 5-inch diagonal square TFT LCD display featuring a 720×720 resolution and supporting a MIPI interface. The display operates in transmissive mode and provides an active area of 91.37(W)×91.37(H) mm, with an outline size of 93.67(W)×96.72(H) mm. ET050SQ01-Z delivers a typical brightness of 350 cd/m² and offers wide viewing angles of 85° in all directions (L/R/U/D). It supports in-cell capacitive touch functionality and is designed for reliable operation over a temperature range of –20 °C to 70 °C and storage from –30 °C to 80 °C.

YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Production and Manufacturing
