5.1"-7" LCD Display (5.1")

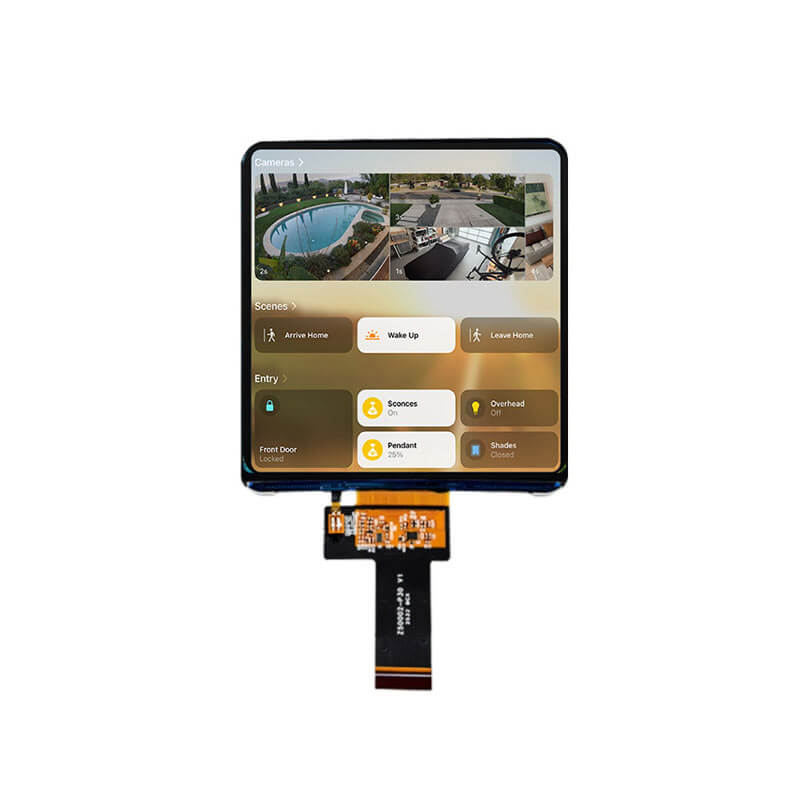

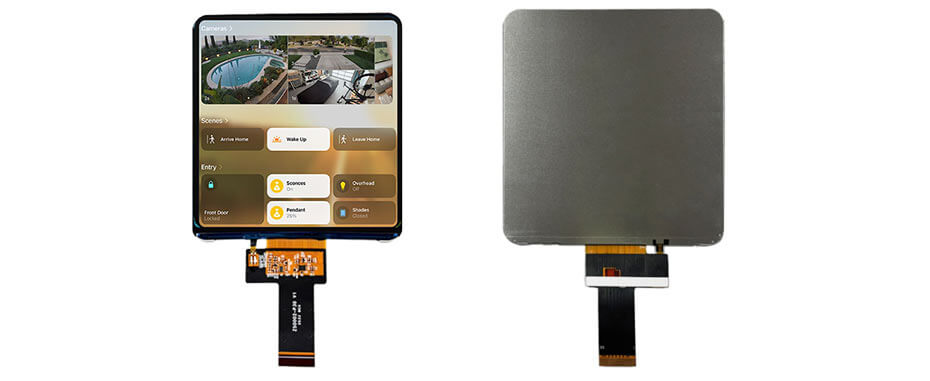

5.1 Inch Square Display IPS 720x720 MIPI TFT LCD Display With In-Cell Touch

Part No.:ET051SQ01-Z
Size:5.1″ inch
Resolution:720x720
Panel Interface:MIPI
Display mode:Transmissive
Outline Dimension:96.67x103.07mm
Active Area:91.37x91.37mm
Viewing Angle L/R/U/D:85/85/85/85
Brightness（cd/m2）:400(Typ.)
Operation / Storage Temp:-30~85°C / -40~90°C
Touch:no

5.1 Inch Square Display Overview
ET051SQ01-Z is a 5.1-inch diagonal square TFT LCD display featuring a 720×720 resolution and supporting a MIPI interface. The display operates in transmissive mode and provides an active area of 91.37(W)×91.37(H) mm, with an outline size of 96.67(W)×103.07(H) mm. ET051SQ01-Z delivers a typical brightness of 400 cd/m² and offers wide viewing angles of 85° in all directions (L/R/U/D). It is designed for reliable operation over a temperature range of –30 °C to 85 °C and storage from –40 °C to 90 °C. This model does not include touch functionality.
