0.48"-5" LCD Display (5")

5 Inch Round Display 1080×1080 mini HDMI Type C Capacitive Touch IPS Circular Display

Part No.:ET050CRMO01-GX
Size:5″ inch
Resolution:1080x1080
Panel Interface:mini HDMI
Display mode:Normally Black
Outline Dimension:136.531x132.208x3.8mm
Active Area:/
Viewing Angle L/R/U/D:IPS
Brightness（cd/m2）:/
Operation / Storage Temp:-20~70°C / /
Touch:yes

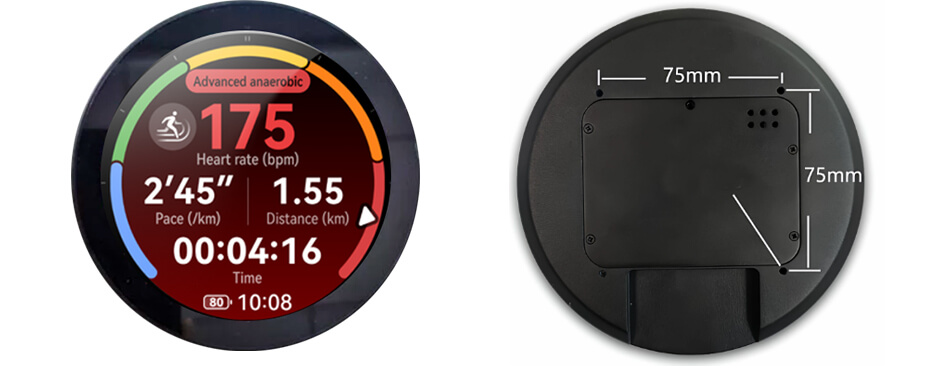

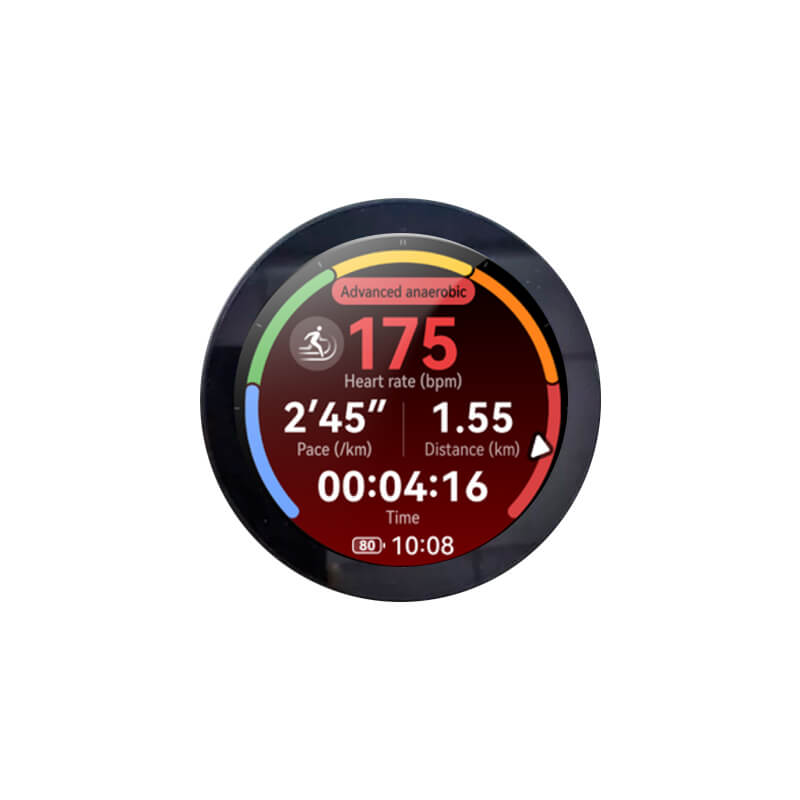

5 Inch Round Display 1080×1080 mini HDMI Type C Capacitive Touch IPS Circular Display Overview
ET050CRMO01-GX is a 5-inch round IPS TFT-LCD display featuring a 1080×1080 resolution and a Normally Black display mode. It uses a Mini HDMI interface for convenient high-resolution video transmission and provides an IPS wide viewing angle for clear and consistent images from different viewing directions. The display features an outline dimension of 136.531(W) × 132.208(H) × 3.8(D) mm and supports an operating temperature range of -20°C to 70°C. The module integrates a capacitive touchscreen and is designed as a complete circular display solution for embedded devices, control panels, smart appliances, instruments, and other customized applications.
5 Inch Round Display 1080×1080 mini HDMI Type C Capacitive Touch IPS Circular Display

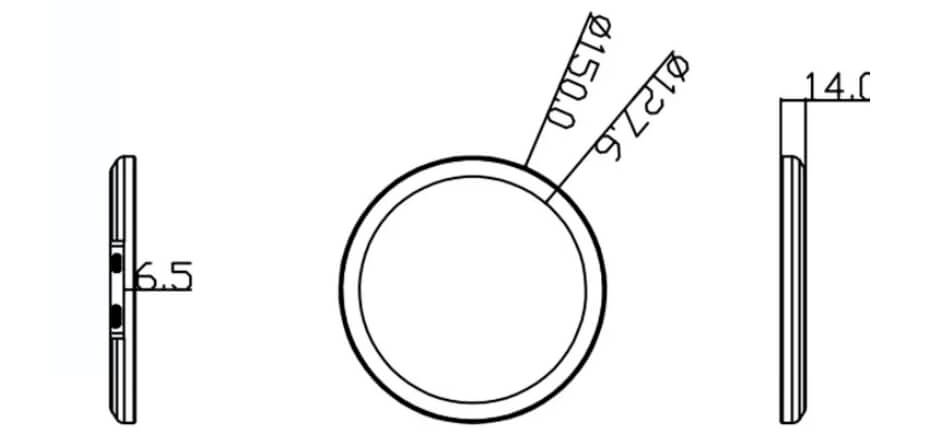

5 Inch Circular Display Drawing
