0.48"-5" LCD Display (1.28”)

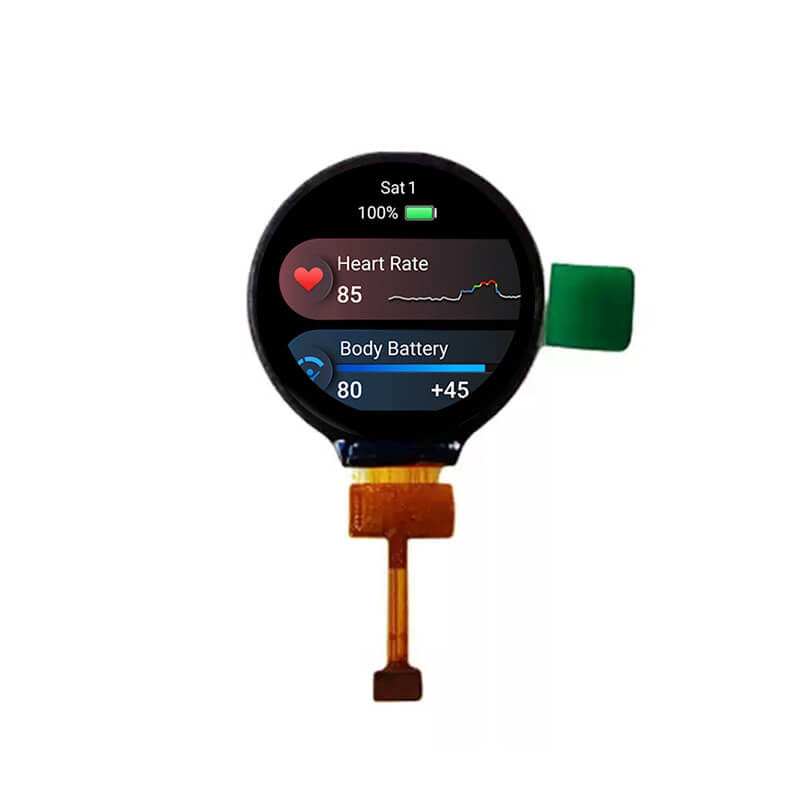

1.28 Inch Round Display 240×240 SPI IPS Circular Display with Capacitive Touch & Driver Board

Part No.:ET013CR01-GX
Size:1.28″ inch
Resolution:240x240
Panel Interface:SPI
Display mode:Normally black
Outline Dimension:35.6x38.1x1.6mm
Active Area:/
Viewing Angle L/R/U/D:IPS
Brightness（cd/m2）:350nits
Operation / Storage Temp:-20~70°C / /
Touch:no

1.28 Inch Round Display 240×240 SPI IPS Circular Display with Capacitive Touch & Driver Board Overview
ET013CR01-GX is a 1.28-inch round IPS TFT-LCD display featuring a 240×240 resolution and a Normally Black display mode. It uses an SPI interface and provides an IPS wide viewing angle for clear and consistent images from different viewing directions. The display features a brightness of 350 cd/m² and an outline dimension of 35.6(W) × 38.1(H) × 1.6(D) mm. ET013CR01-GX supports an operating temperature range of -20°C to 70°C and is designed for compact embedded applications requiring a small, high-quality circular display. A capacitive touchscreen and driver board can be offered as optional solutions for complete display applications.

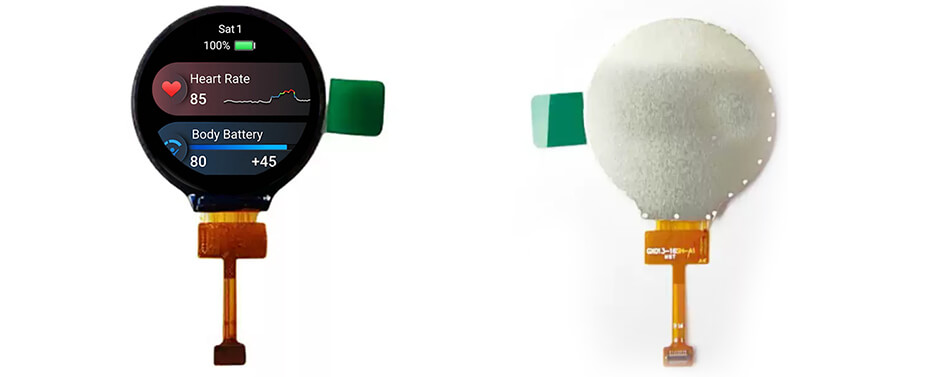

1.28 Inch Round Display 240×240 SPI IPS Circular Display with Capacitive Touch & Driver Board

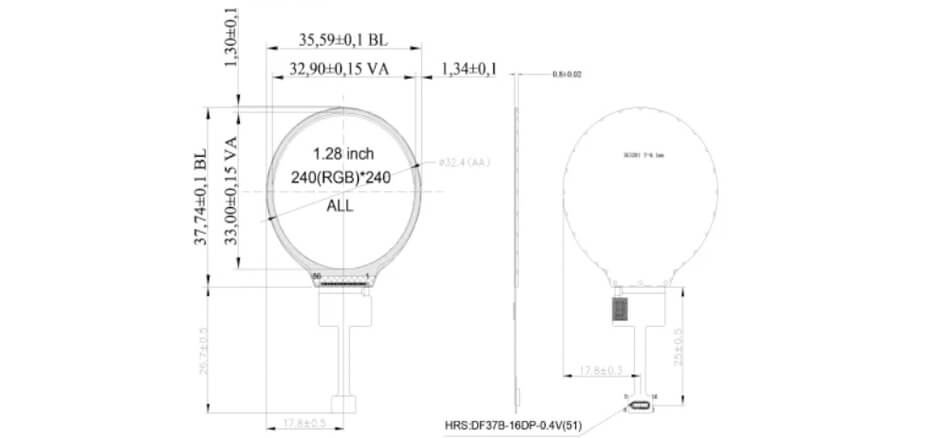

1.28 Inch Circular Display Drawing
