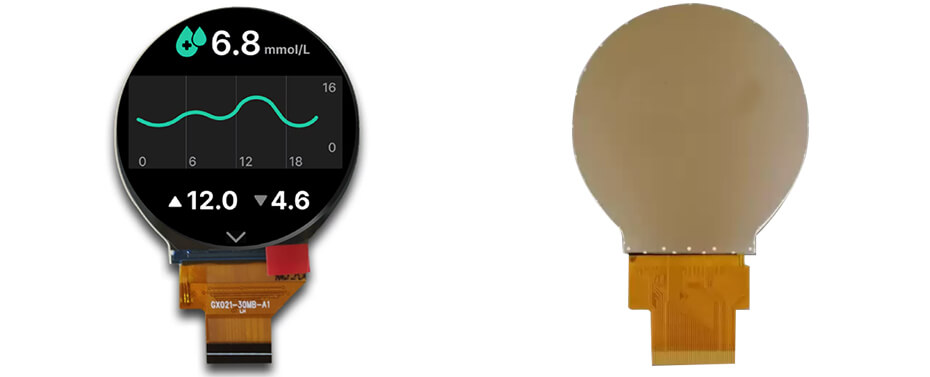

2.1 Inch Round Display 480×480 IPS RGB Circular Display with Driver Board

Part No.:ET021CR01-GX
Size:2.1″ inch
Resolution:480x480
Panel Interface:RGB
Display mode:Normally Black
Outline Dimension:56.18x59.71x2.30mm
Active Area:53.28x53.28mm
Viewing Angle L/R/U/D:IPS
Brightness（cd/m2）:400nits
Operation / Storage Temp:-20~70°C / /
Touch:no

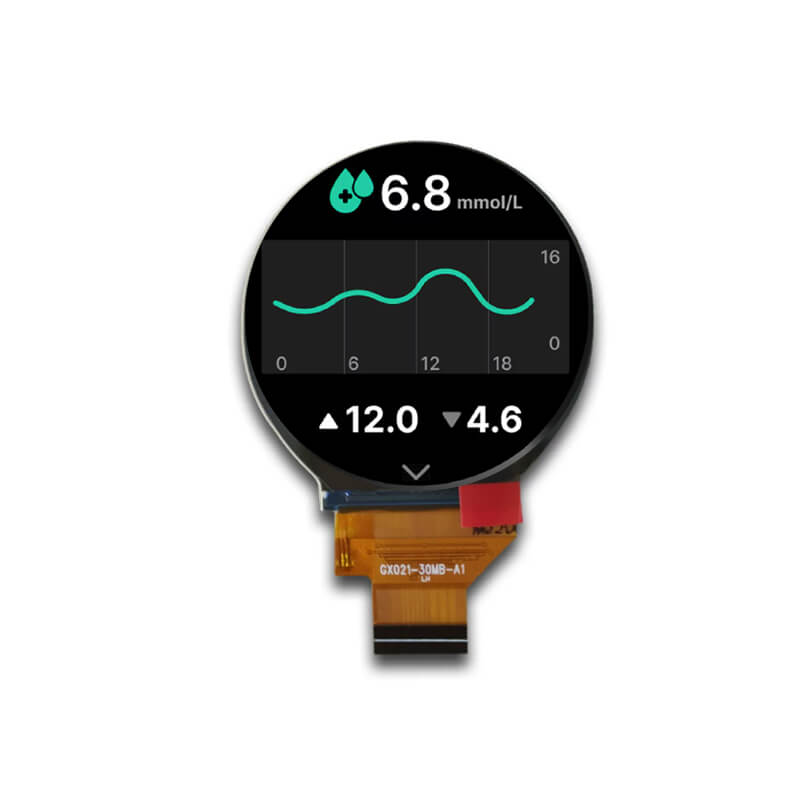

2.1 Inch Round Display 480×480 IPS RGB Circular Display with Driver Board Overview
ET021CR01-GX is a 2.1-inch round IPS TFT-LCD display featuring a 480×480 resolution and a Normally Black display mode. It uses an RGB interface and provides an IPS wide viewing angle for clear and consistent images from different viewing directions. The display features a 400 cd/m² brightness, an active area of 53.28(W) × 53.28(H) mm, and an outline dimension of 56.18(W) × 59.71(H) × 2.30(D) mm. ET021CR01-GX supports an operating temperature range of -20°C to 70°C and is designed for compact embedded applications requiring a high-quality circular display. A driver board can be offered as an optional solution for complete display applications.
2.1 Inch Round Display 480×480 IPS RGB Circular Display with Driver Board

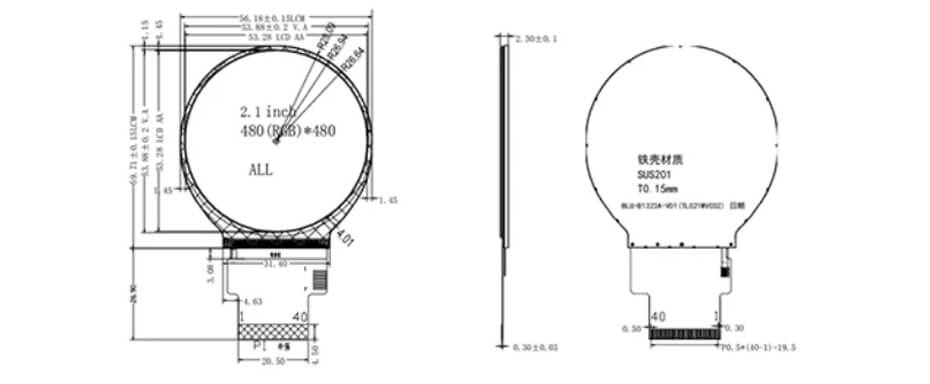

2.1 Inch Circular Display Drawing

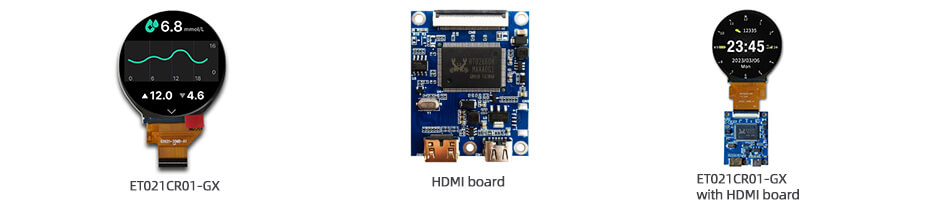

More 2.1 Inch Circular Display Solution For Reference
ET021CR01-GX
HDMI board
ET021CR01-GX with HDMI board
