5.4 Inch AMOLED Display Overview

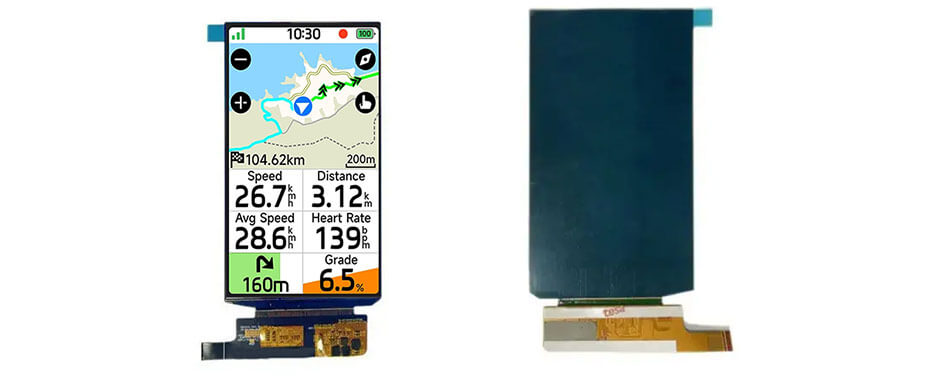

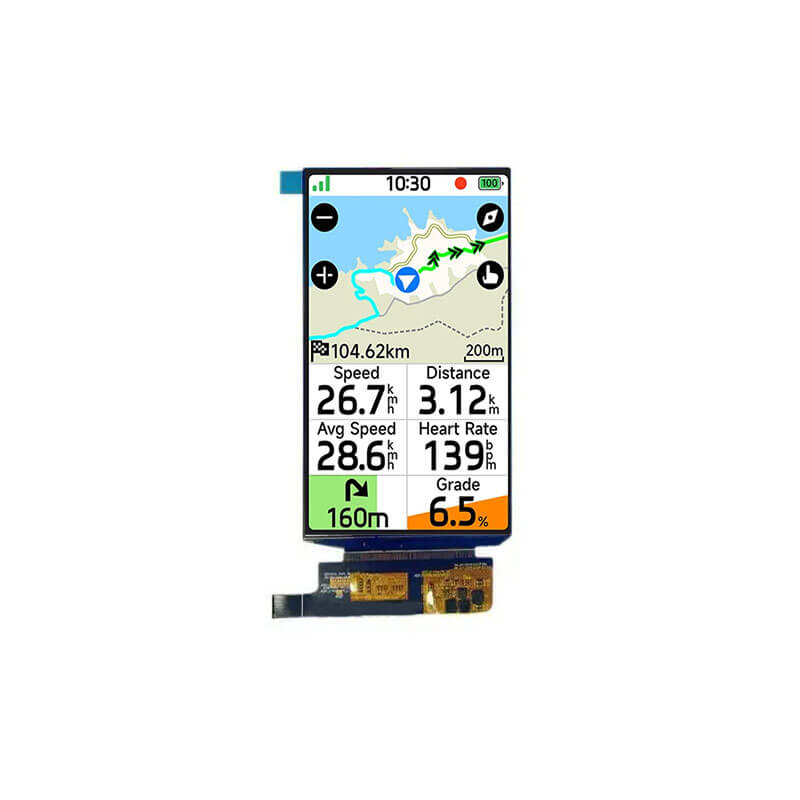

ET054AM01-HG is a 5.4 inch diagonal AMOLED display screen product, featuring self-emissive technology. ET054AM01-HG supports a resolution of 1080×1920 with an approximate 9:16 aspect ratio (W:H) and offers viewing angles of 80/80/80/80 (L/R/U/D). It features an active area of 67.82(W) × 120.58(H) mm and an outline dimension of 69.74(W) × 126.6(H) mm, and adopts a MIPI interface for signal transmission. The display provides a brightness of 350 nits and operates within a temperature range of -40°C to 70°C (storage: -40°C to 85°C). Designed without a touch function, ET054AM01-HG is suitable for applications requiring high-resolution display performance.
More 5.4 Inch AMOLED Displays For Reference

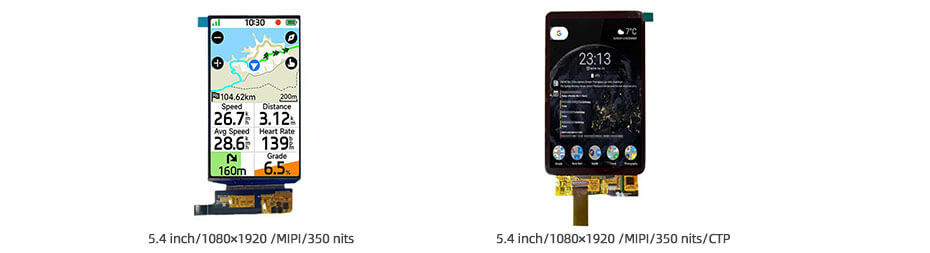

ET054AM01-HG (1080×1920, MIPI, IPS, 350nits, -40~70°C, 69.74×126.6mm)
ET054AM02-HGT (1080×1920, MIPI, IPS, 350nits, -40~70°C, 81×138.2mm, CTP)
AMOLED Displays Technology
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Youritech Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
