4.4 Inch AMOLED Display Overview

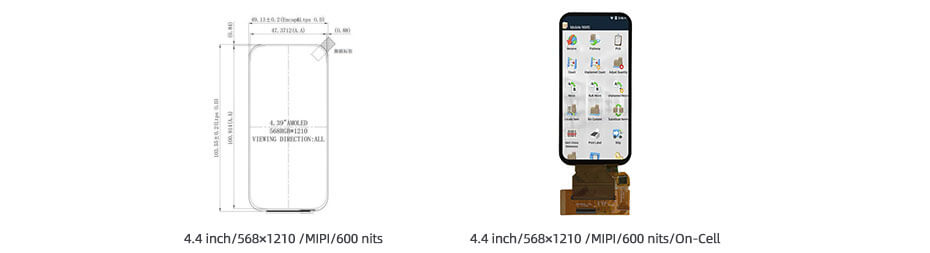

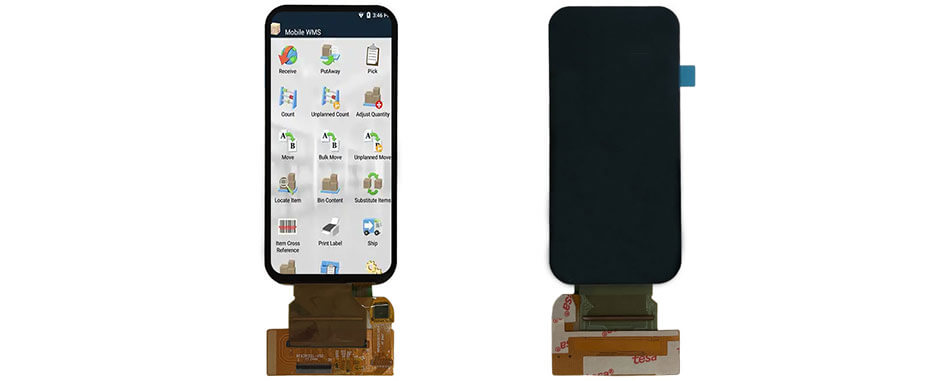

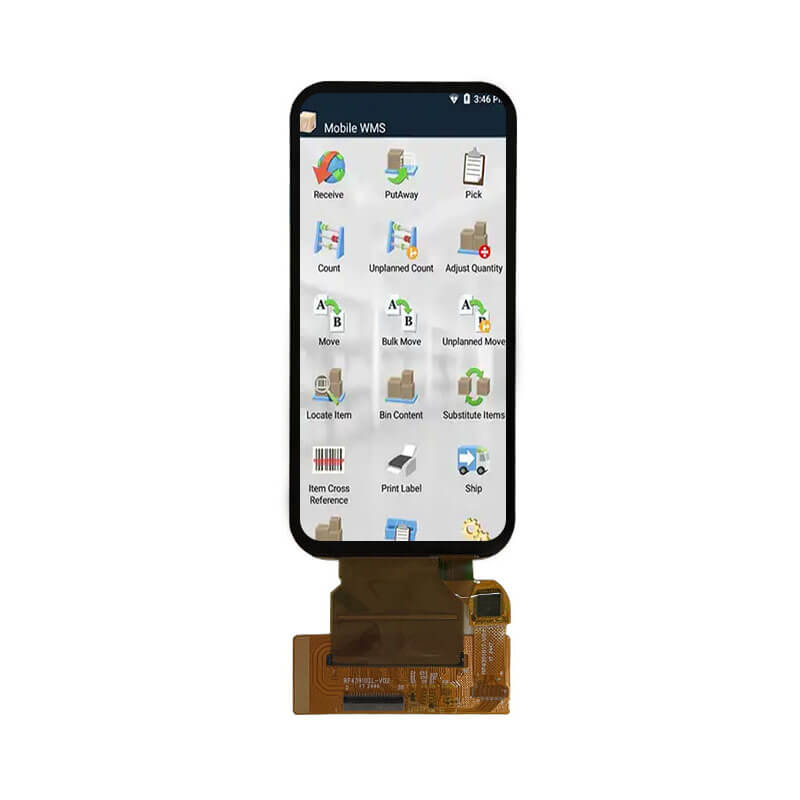

ET044AM01-HT is a 4.4 inch diagonal AMOLED display screen product, featuring self-emissive technology. ET044AM01-HT supports a resolution of 568×1210 with an approximate 9:19 aspect ratio (W:H) and offers viewing angles of 80/80/80/80 (L/R/U/D). It features an active area of 47.3712(W) × 100.914(H) mm and an outline dimension of 49.13(W) × 103.55(H) mm, and adopts a MIPI interface for signal transmission. The display provides a high brightness of 600 nits and operates within a temperature range of -20°C to 70°C (storage: -30°C to 80°C). Designed without a touch function, ET044AM01-HT is suitable for applications requiring high-brightness, high-resolution display performance.
More 4.4 Inch AMOLED Displays For Reference
ET044AM01-R (568×1210, MIPI, IPS, 600nits, -20~70°C, 49.13×103.55mm)
ET044AM01-HT (568×1210, MIPI, IPS, 600nits, -20~70°C, 49.13×103.55mm, On-Cell)
AMOLED Displays Technology
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Youritech Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
