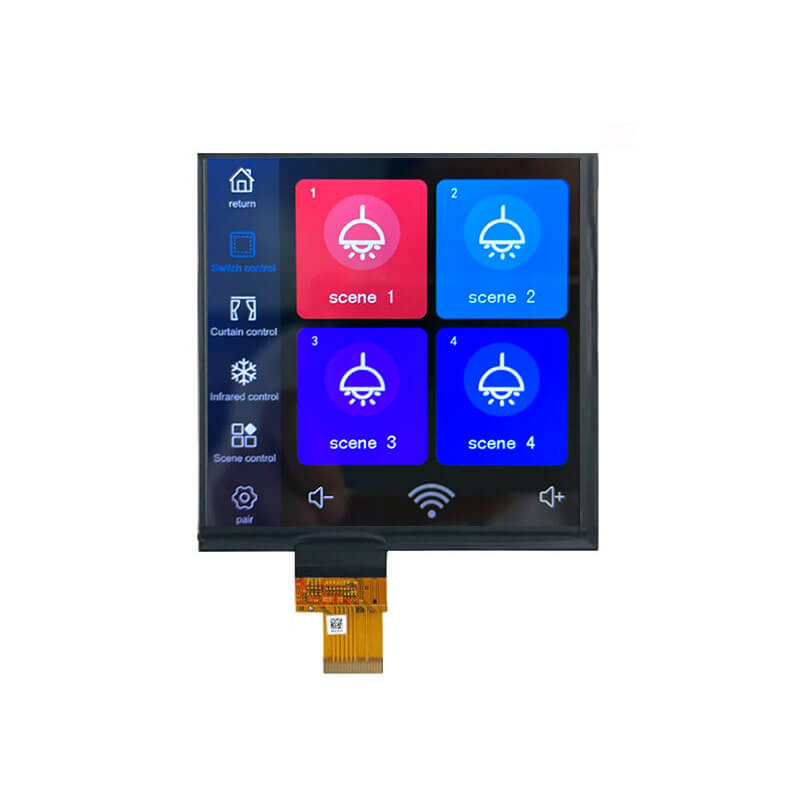

6.8 Inch Square Display IPS 768x768 LVDS 500nits High Brightness TFT LCD Display

Part No.:ET068SQ01-AP
Size:6.8″ inch
Resolution:768x768
Panel Interface:LVDS
Display mode:Transmissive
Outline Dimension:135.1x135.1mm
Active Area:121.54x121.54mm
Viewing Angle L/R/U/D:85/85/85/85
Brightness（cd/m2）:500(Typ.)
Operation / Storage Temp:-10~50°C / -20~60°C
Touch:no

6.8 Inch Square Display Overview
ET068SQ01-AP is a 6.8-inch diagonal square TFT LCD display featuring a 768×768 resolution and supporting an LVDS interface. The display operates in transmissive mode and provides an active area of 121.54(W)×121.54(H) mm, with an outline size of 135.1(W)×135.1(H) mm. ET068SQ01-AP delivers a typical brightness of 500 cd/m² and offers wide viewing angles of 85° in all directions (L/R/U/D). It is designed for operation over a temperature range of –10 °C to 50 °C and storage from –20 °C to 60 °C. This model does not include touch functionality.

YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
