4.3 Inch AMOLED Display Overview

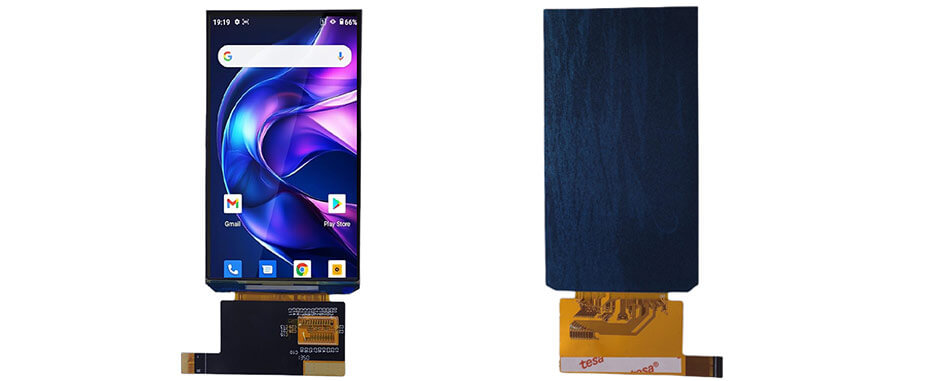

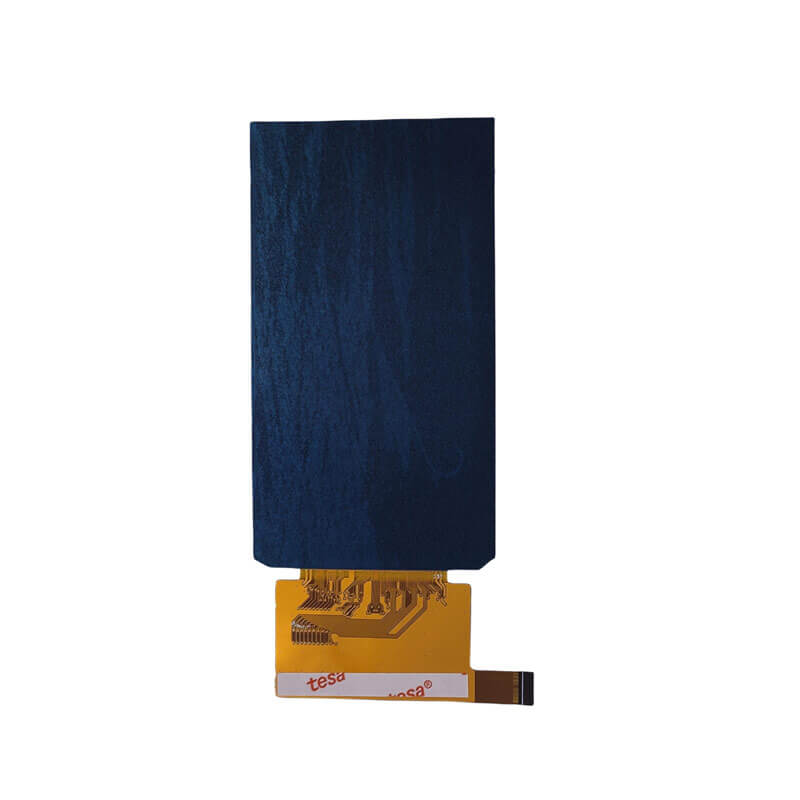

ET043AM01-A is a 4.3 inch diagonal AMOLED display screen product, featuring self-emissive technology. ET043AM01-A supports a resolution of 540×960 with an approximate 9:16 aspect ratio (W:H). It features an active area of 53.46(W) × 95.04(H) mm and an outline dimension of 57.26(W) × 103.87(H) mm, and adopts a MIPI interface for signal transmission. The display provides a brightness of 250 nits and operates within a temperature range of -20°C to 70°C (storage: -30°C to 80°C). Designed without a touch function, ET043AM01-A is suitable for applications requiring compact, high-quality display performance.
AMOLED Displays Technology
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Youritech Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
