4.5 Inch Stretched Bar Display Overview

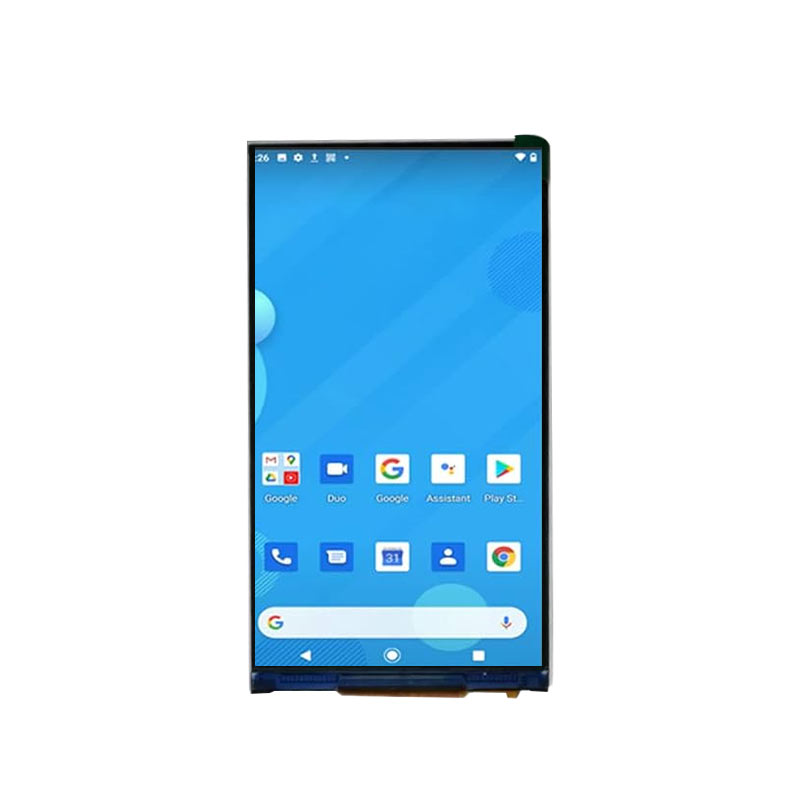

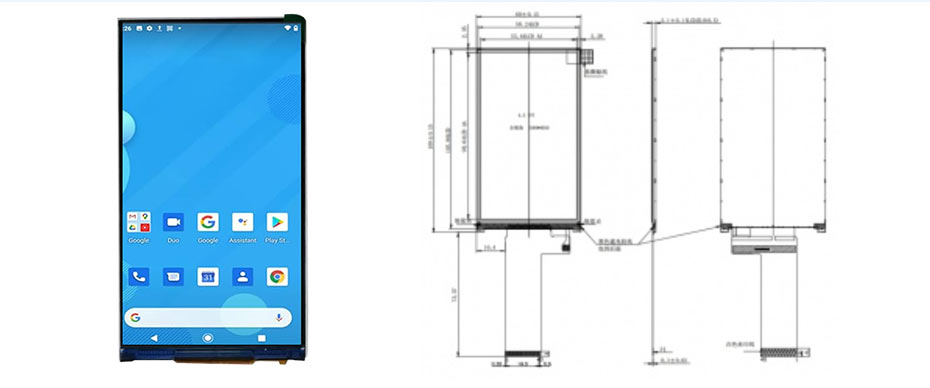

ET045BA01-TL is a 4.5-inch stretched bar TFT LCD display featuring an IPS panel with transmissive display mode. It supports a resolution of 480 × 854 pixels and adopts a MIPI interface, driven by the ST7701S controller, enabling efficient high-speed data transmission. The display provides an active area of 55.44 (W) × 98.64 (H) mm within a slim outline dimension of 60 (W) × 109 (H) × 2.1 (D) mm. With a full viewing angle characteristic of IPS technology, it ensures clear and consistent image quality from all directions. The typical brightness is 300 nits, suitable for indoor and general-purpose display applications. ET045BA01-TL is designed for stable performance across a wide temperature range, supporting −20 to 70°C operation and −30 to 80°C storage. This model is offered without touch functionality, making it well suited for vertical or elongated display applications such as smart devices, control panels, and embedded systems.

YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options


Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Production and Manufacturing


At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
