4.6 Inch Stretched Bar Display Overview

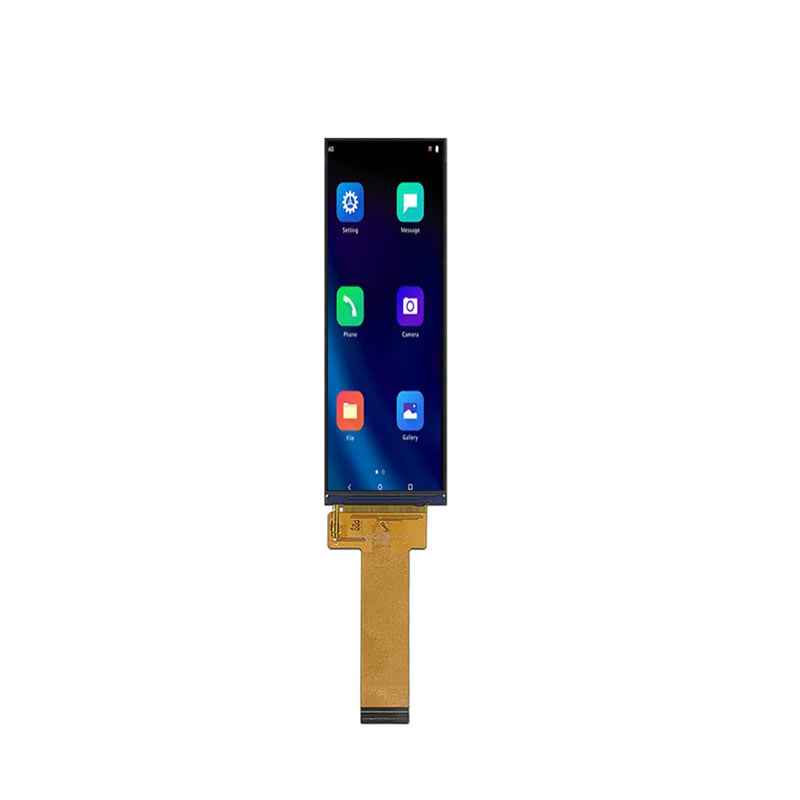

ET046BA20-T is a 4.6-inch stretched bar TFT LCD display featuring an IPS panel with transmissive display mode. It supports a resolution of 320 × 960 pixels and utilizes a MIPI interface for high-speed data transmission. The display offers an active area of 36.77 (W) × 110.3 (H) mm within a slim outline dimension of 39.47 (W) × 116.95 (H) mm, making it suitable for narrow, vertical installations. With wide viewing angles of 85° in all directions (L/R/U/D), it ensures consistent image quality from multiple perspectives. The typical brightness reaches 500 cd/m², providing enhanced visibility in bright environments. ET046BA20-T is designed for wide-temperature operation, supporting an operating temperature range of −20 to 70°C and a storage temperature range of −30 to 80°C. This model is supplied without touch functionality, making it ideal for high-brightness, elongated display applications such as industrial equipment, smart terminals, and embedded systems.

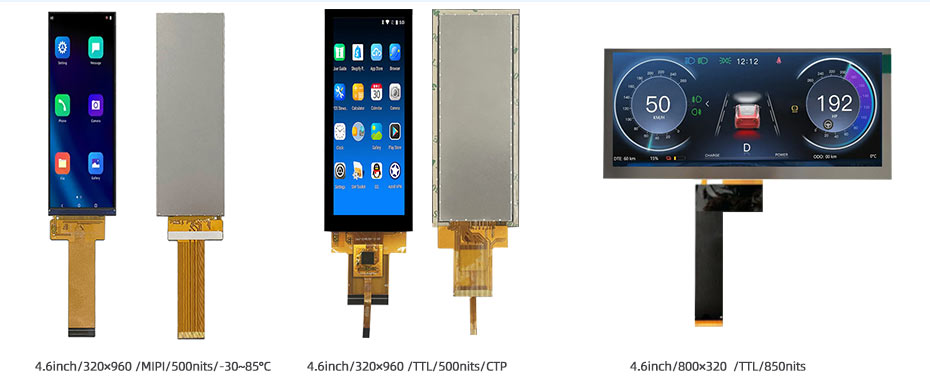

More 4.6 Inch Bar Displays For Reference
ET046BA20-T (320×960, MIPI, IPS, 500nits, -30~85°C, 39.47x116.95mm)
ET046BA01-TT (320×960, TTL, IPS, 500nits, -20~70°C, 50.19x126.1mm)
ET046BA01-S (800x320, TTL, IPS, 850nits, -20~70°C, 120.7x56.16mm)
