0.48"-5" LCD Display (4.5")

4.5 Inch Capacitive Touch Screen 480x854 Touch Display For Access Control System Smart Building Smart Payment

Part No.:ET045CTP02
Size:4.5″ inch
Resolution:Optional
Panel Interface:I2C
Display mode:PCAP
Outline Dimension:67.8x143.2mm
Active Area:56.44x99.64mm
Viewing Angle L/R/U/D:Full view
Brightness（cd/m2）:Optional
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:

4.5 Inch Capacitive Touch Screen
Product structure: Glass+Film+Film
Controller lC:ZT7538
Touch Points: Max 5Points
Interface Type: I2C
Display Area: 56.44x99.64mm
Outline Dim.: 67.8x143.2mm
Operation Temperature: -20 ~ 70°C
Storage Temperature: -30 ~ 80°C

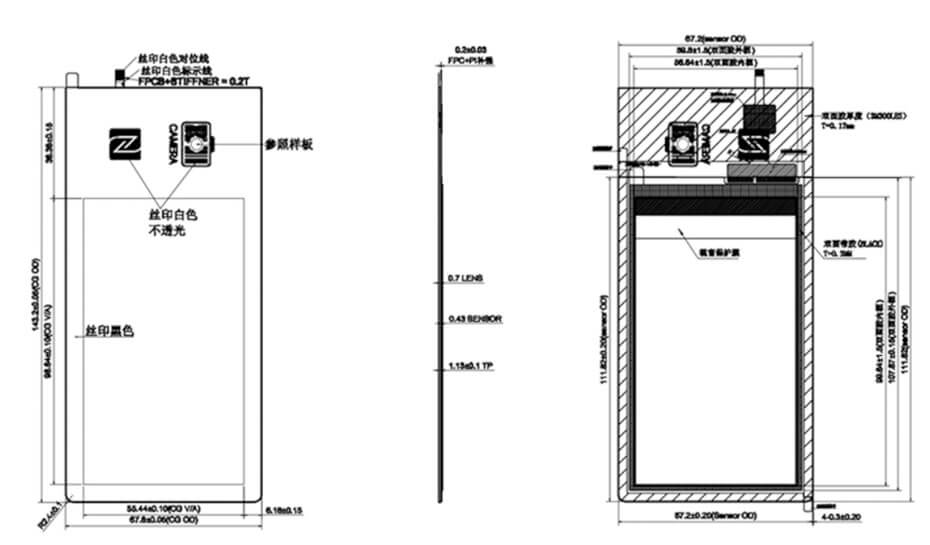

4.5 Inch Capacitive Touch Screen Drawing

The touch screens can be matched and integrated by all kinds of display panels

SPECIALTREATMENT
SUPPORT AG / AR / AF GLASS(ANTI-GLARE, ANT-REFLECTIVE, ANT-FINGERPRINT)

PRODUCTION AND MANUFACTURING
