0.48"-5" Touch Screen (4.5“)

4.5 Inch High-definition Capacitive Screen G+G GT911 Touch Display For Industrial Control Industrial Medical Vehicle-mounted Security Touch-control

Part No.:ET045CTP01
Size:4.5″ inch
Resolution:Optional
Panel Interface:I2C
Display mode:PCAP
Outline Dimension:68x113.6mm
Active Area:63.16x106.787mm
Viewing Angle L/R/U/D:Full view
Brightness（cd/m2）:Optional
Operation / Storage Temp:-10~60°C / 20~70°C
Touch:yes

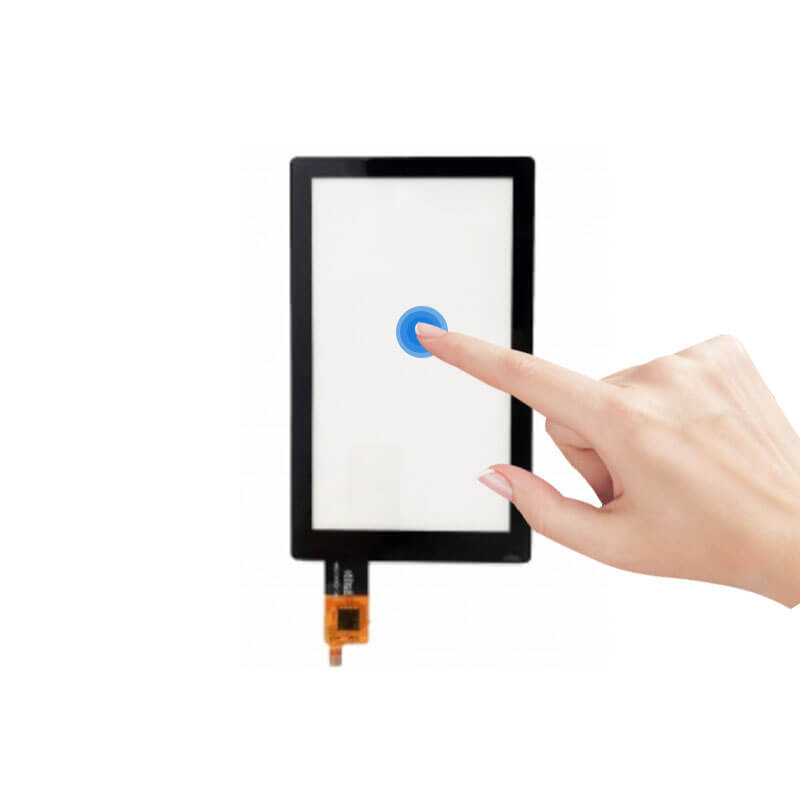

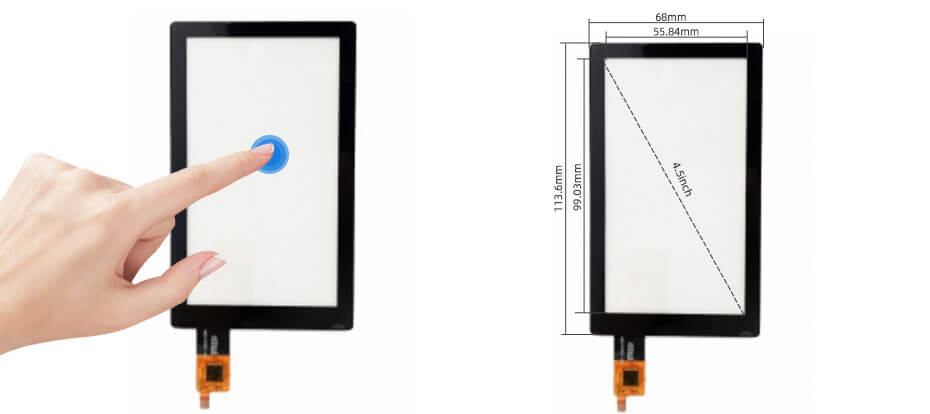

4.5 Inch Capacitive Touch Screen
Product structure:Glass/Glass
Surface hardness: Hard coating (6H)
Touch Points: Multi-touch
Interface Type: I2C
Display Area:63.16x106.787 mm
Outline Dim.: 68x113.6 mm
Operation Temperature:-10 ~ 60 °C
Storage Temperature: -20 ~ 70 °C

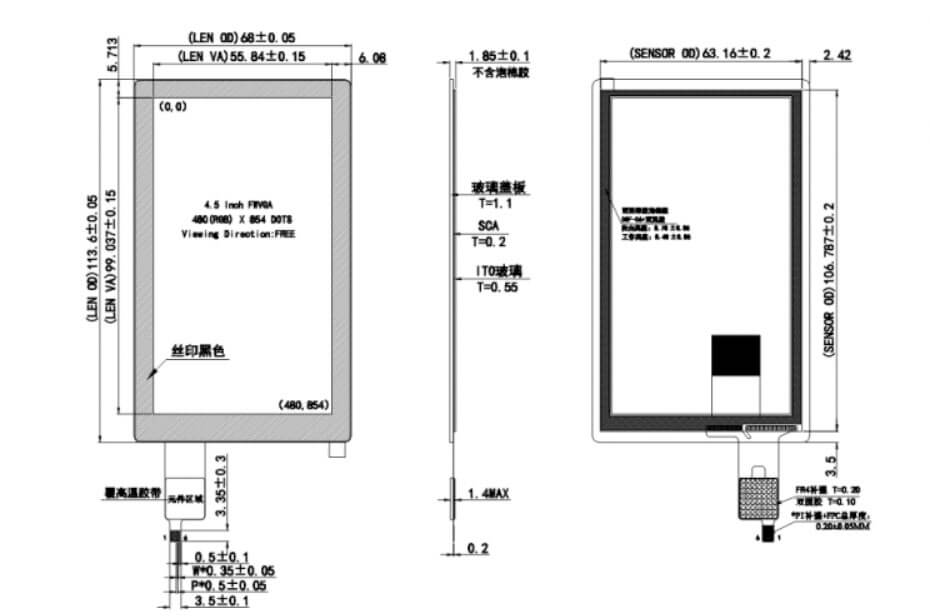

4.5 Inch Capacitive Touch Screen Drawing

The touch screens can be matched and integrated by all kinds of display panels

SPECIALTREATMENT
SUPPORT AG / AR / AF GLASS(ANTI-GLARE, ANT-REFLECTIVE, ANT-FINGERPRINT)
