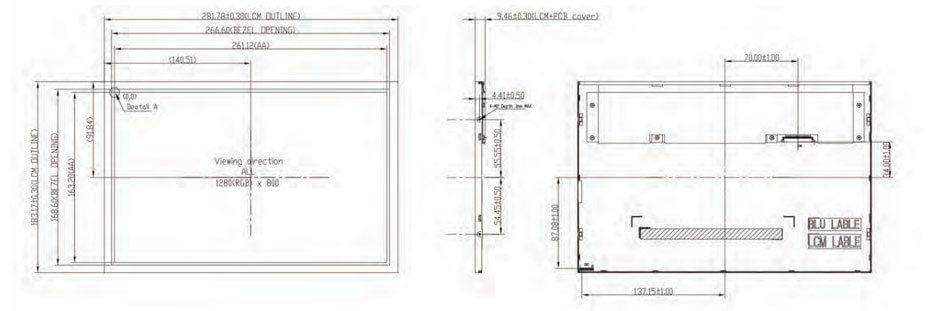

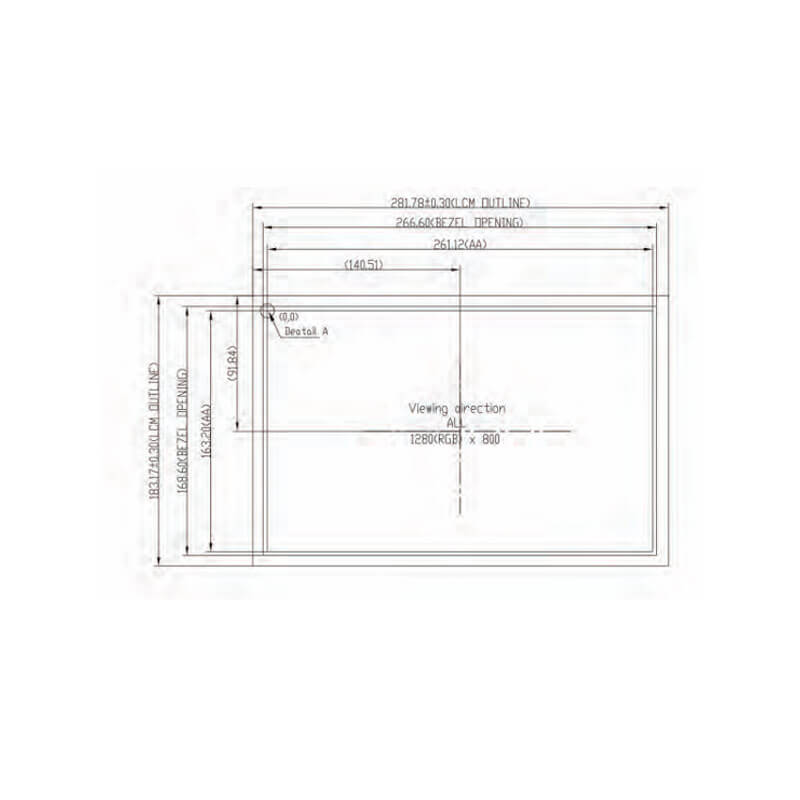

P1210WXF2MA00 supports display 1280(RGB)×800 (WXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 261.12(W)×163.2(H) mm, outline size of 281.78(W)×183.17(H)×9.76(D) mm, viewing area size of 266.6(W)×168.6(H) mm, with surface treament of Hard coating, net weight of TBD. As a SFT, Normally Black, Transmissive LCM product, P1210WXF2MA00 can provides 1500 cd/m² display brightness 1000:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 20 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 262K/16.2M colors, also with performance of color gamut 69% (NTSC). This product adopted 11S5P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. P1210WXF2MA00 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
More 12.1 Inch EV Charger Display For Reference
G121EAN01.2 (1280×800, LVDS, 1000nits, -30~85°C, 278×184mm)
G121ICE-LH1 (1280×800, LVDS, 1000nits, -30~80°C, 278×184mm)
NL12880BC20-32F (1280×800, LVDS, 1100nits, -30~80°C, 277.7×180.6mm)
P1210WXF2MA01 (1280×800, LVDS, 1100nits, -30~80°C, 277.7×180.6mm)
P1210WXF2MA00 (1280×800, LVDS, 1500nits, -30~85°C, 281.78×183.17mm)
ET121WX02-TT (1280×800, LVDS, 750nits, -20~70°C, 293×198mm, Capacitive Touch)
G121STN02.1 (800×600, LVDS, 1500nits, -30~85°C, 261.65×203mm)
LQ121S1LG86 (800×600, LVDS, 1500nits, -30~70°C, 276×209mm)
G121XCE-LM1 (1024×768, LVDS, 1000nits, -30~75°C, 260.5×204mm)
P1210XGF1MA00 (1024×768, LVDS, 1300nits, -30~80°C, 260.5×203mm)
TX31D207VM0BAA (1024×768, LVDS, 1000nits, -40~80°C, 260.5×203mm)
COM121H9M21SSS (1024×768, LVDS, 900nits, -30~70°C, 260.5×203mm)
-Custom PCAP touch solutions (glove/wet touch, AG/AR/AF glass, optical bonding)
-Embedded mainboards (Android / Linux, ARM platforms, multi-interface support)
-Display + touch + board system integration
-Industrial design for EV chargers (IP65, wide temperature, high reliability)
-Communication & HMI support
High-Brightness LCD Displays
Sunlight-readable screens for outdoor charging stations.
PCAP Touchscreen Integration
Responsive multi-touch operation with glove and wet-touch support.
Rugged Cover Glass
Anti-glare, anti-scratch and impact-resistant protective glass.
Embedded Mainboards
Android, Linux and custom controller board solutions.
Industrial Connectivity
HDMI, USB, CAN Bus, RS232/RS485 and Ethernet interfaces.
Outdoor Protection
IP65 waterproof design, UV resistance and wide-temperature operation.
Optical Bonding Technology
Enhanced visibility, durability and reduced reflection.
Custom HMI Development
Complete display, touch and embedded system integration for EV chargers.
-AC Charging Stations
-DC Fast Charging Stations
-Ultra-Fast Charging Networks
-Smart Charging Kiosks
-Fleet Charging Infrastructure
-Renewable Energy Charging Systems
-Battery Swapping Stations
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
