4.3 Inch TFT LCD Display 480×272 Parallel RGB 880nits High Brightness LCD Display For Cycling Computer Bike Display

4.3 Inch Cycling Computer Bike Display Overview

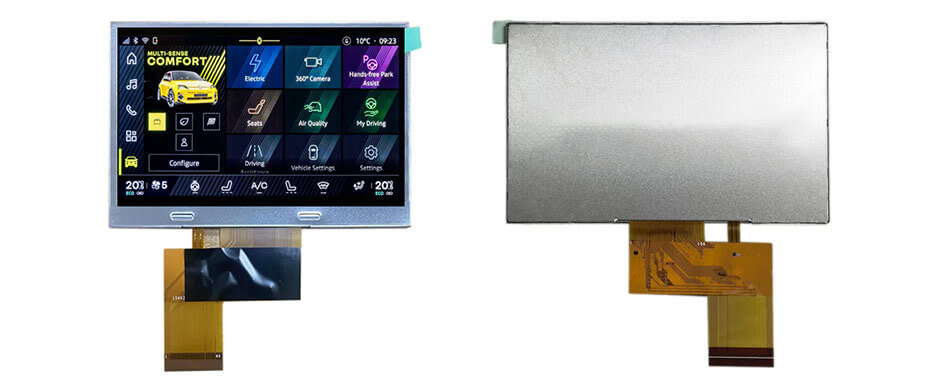

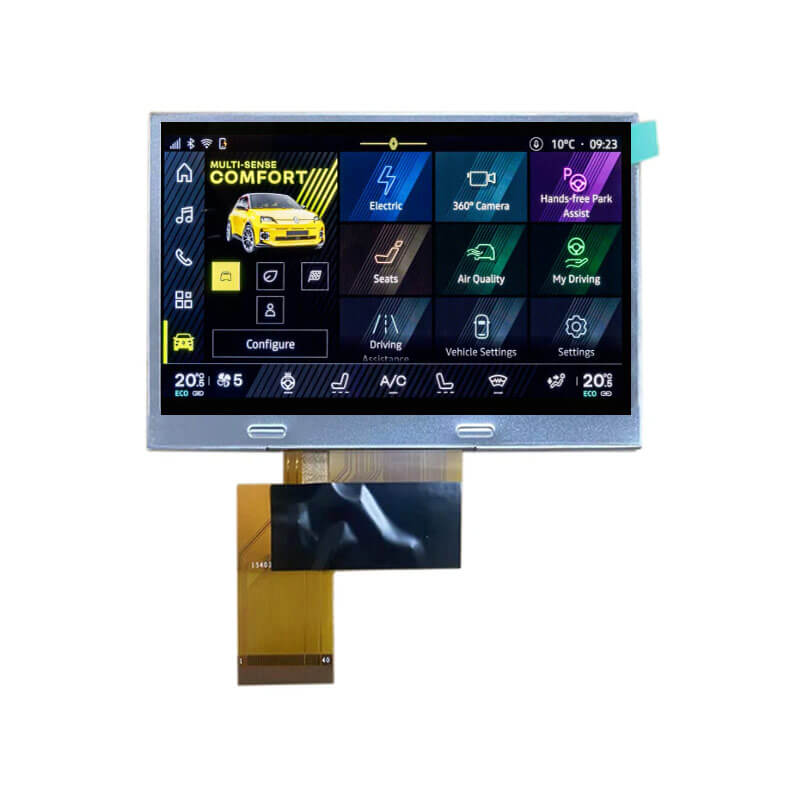

TM043NDHG11 is a 4.3-inch diagonal TFT-LCD display module featuring a transmissive display mode. It supports a resolution of 480×272 with a 16:9 aspect ratio (W:H) and adopts a Parallel RGB (1-channel, 8-bit) interface for stable integration. The display offers an active area of 95.04 (W) × 53.856 (H) mm and an outline dimension of 105.5 (W) × 67.2 (H) × 3.2 (D) mm. With a brightness of 880 cd/m², it ensures good visibility under strong ambient light, making it suitable for cycling computer and bike display applications. It provides viewing angles of 70/70/70/60 (L/R/U/D) and operates within a temperature range of -20°C to 70°C (storage: -30°C to 80°C). This module does not include a touch panel.

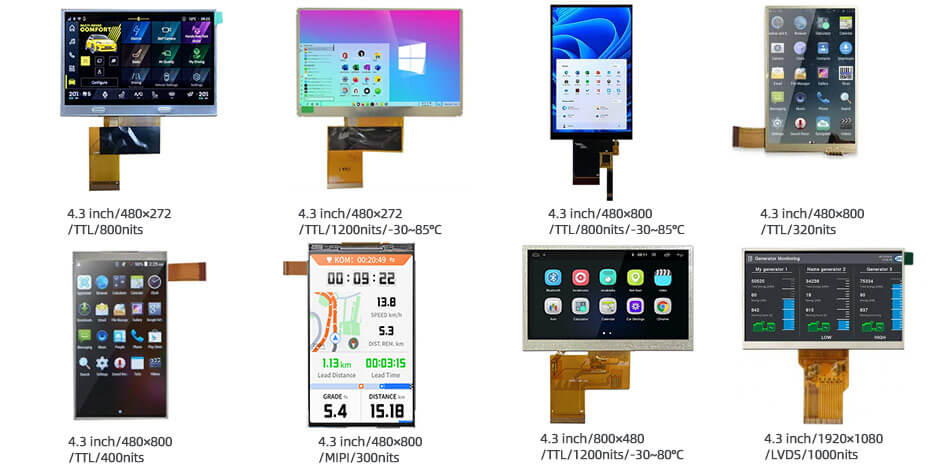

More 4.3 Inch Cycling Computer Bike Display For Reference
TM043NDHG11 (480×272, TTL, LCM, 880nits,  -20~70°C, 105.5×67.2mm)
COM43H4N44ULC (480×272, TTL, LCM, 1200nits,  -30~85°C, 105.5×67.2mm)
ET043WV09-TT (480×800, TTL, LCM, 800nits,  -30~85°C, 62×104.25mm)
COM43H4N91UTC (480×800, TTL, LCM, 320nits,  -20~70°C, 63×105.3mm)
COM43H4N90ULC (480×800, TTL, LCM, 400nits,  -20~70°C, 63×105.3mm)
COM43H4N66ULC (480×800, MIPI, LCM, 300nits,  -20~70°C, 61.2×103mm)
ET043WV15-T (800×480, TTL, LCM, 1200nits,  -30~80°C, 105.5×67.2mm)
ET043FH01-Z (1920×1080, LVDS, LCM, 1000nits,  -20~70°C, 106.34×66.01mm)

Cycling Computer Bike Display Solution

Youritech Production and Manufacturing
