4 Inch TFT LCD Display 400×960 TTL 800nits High Brightness LCD Display For Cycling Computer Bike Display

4 Inch Cycling Computer Bike Display Overview

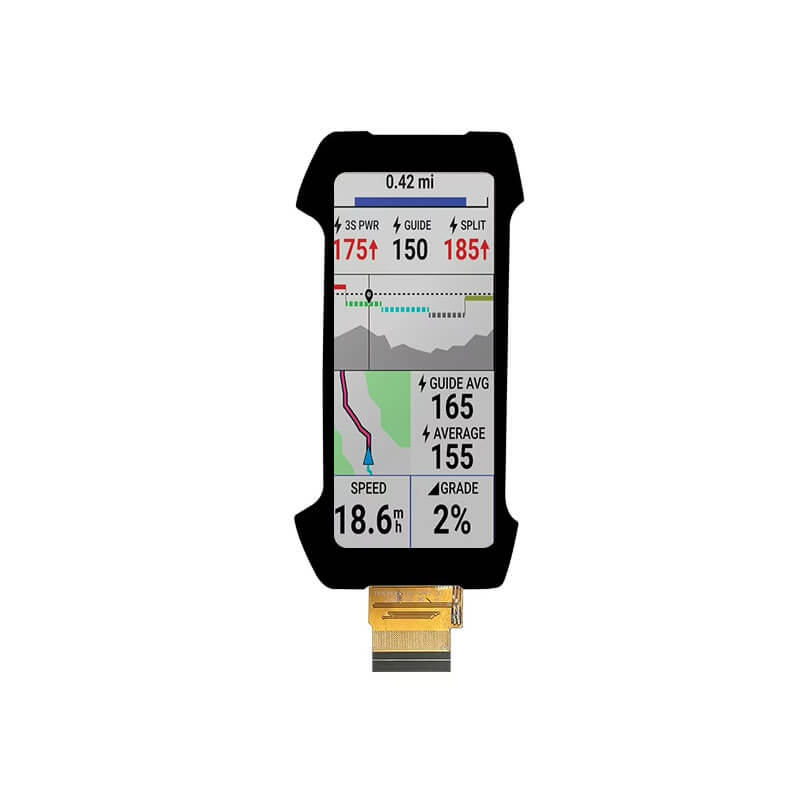

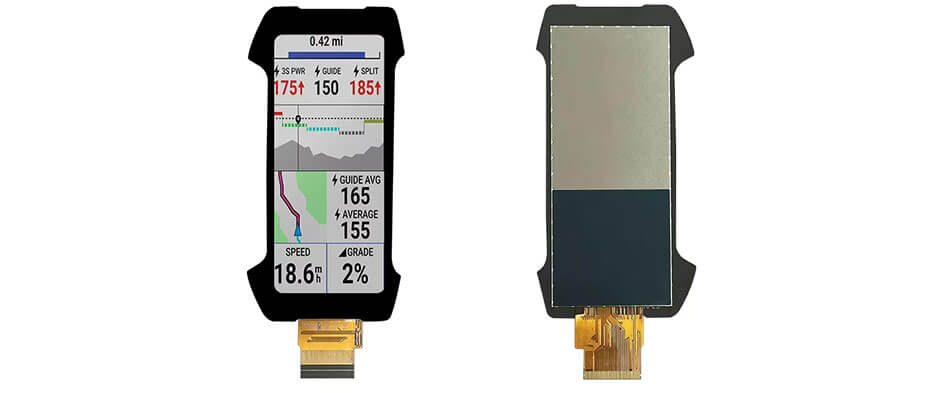

ET040WF01-T is a 4.0-inch diagonal TFT-LCD display module featuring a transmissive display mode. It supports a resolution of 400×960 with a 5:12 aspect ratio (W:H) and adopts a TTL interface for stable integration. The display offers an active area of 39.18 (W) × 94.03 (H) mm and an outline dimension of 42.9 (W) × 95.7 (H) mm. With a brightness of 800 cd/m², it ensures good visibility under various lighting conditions, making it suitable for cycling computer and bike display applications. It provides wide viewing angles of 80/80/80/80 (L/R/U/D) and operates within a temperature range of -20°C to 60°C (storage: -30°C to 70°C). This module does not include a touch panel.

More 4 Inch Cycling Computer Bike Display For Reference

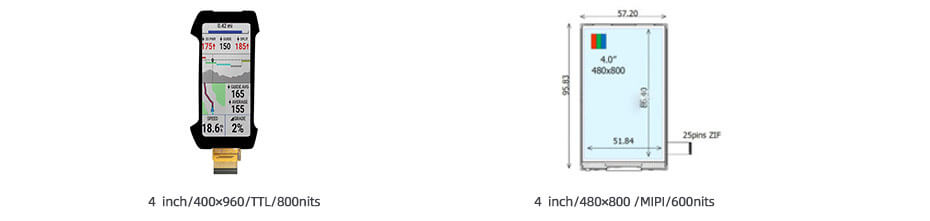

ET040WF01-T (400×960, TTL, LCM, 800nits,  -20~60°C, 42.9×95.7mm)
COM40H4P25ULC (480×800, MIPI, LCM, 600nits,  -20~70°C, 57.2×95.83mm)

Cycling Computer Bike Display Solution

Youritech Production and Manufacturing
